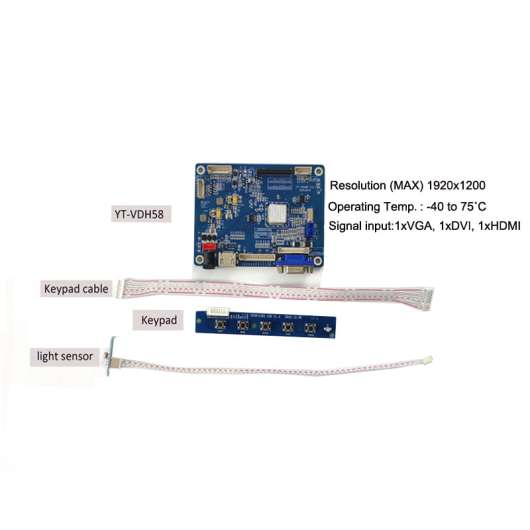

YT-VDH58 driver board features VGA, DVI, and HDMI input interfaces with LVDS output, ideal for LCD display projects Enjoy seamless signal conversion. Sufficient stock, MOQ 1 piece. Request price, datasheet and lead time from IDT Display.
| Model | YT-VDH58 |
| Maximum resolution | 1920x1200 |
| Support size | ≤82" |
| Interface | VGA DVI HDMI |
| Input power | ＜36w |
| LCD interface | LVDS |
| operation temperature | -40~75˚C |
| storage temperature | -40~75˚C |
| size | 110.0 x 82.5mm |
Hangzhou IDT DISPLAY TECHNOLOGY CO.,LTD is the main agent of Youda AUO LCD screen, CHIMEI LCD screen, Mitsubishi LCD screen, INNOLUX LCD screen, Tianma LCD screen, touch LCD screen and other small ...
Read More
Price: Contact for latest real-time quotation. Final pricing depends on quantity, specification, customization requirements and exchange rate. MOQ: 1 piece.
Contact us for the latest price. Pricing and availability vary based on quantity, specifications, customization requirements and exchange rates. MOQ: 1 piece.
Request a Quote
BRIEF
The driver board is mainly used to support TFT LCD screen, with 1xVGA, 1xDVI, 1xHDMI input interfaces and LVDS output interface. The board adopts MSTAR signal processing chip, which has powerful processing function and can support all kinds of standard and non-standard signals. Using high specification devices, it has good working performance.
*Operating Temperature: -40 to 75˚C
*Automatic photosensitive control optional
*Support resolution up to 1920x1200
*Remote control function optional
2.PRODUCT CHARACTERISTICS
display output
Maximum resolution:
Max：1920x1200
Output interface:
Single/Dual LVDS
Support signal
Simulated RGB:
Horizontal Freq
30—120KHz
Vertical Freq
50—75Hz
0.7Vp-p@75ohm
Separate / Composite / SOG sync support
Digital HDMI / DVI:
Horizontal Freq
30—120KHz
Vertical Freq
50—75Hz
Key
Power, Menu, Exit, Plus, Minus
Menu type
Graphical menu
Language support
Language support in 8 countries
Function operation
Mode/Brightness/Contrast/Saturation/Sharpness/Hue
FUNCTION
Language/Reset/Color Temp.
PC
Clock
Phase
H position
V position
Auto configure
Power Supply
Stand-by
<0.5W 12Vstb/200mA
Input
12V/dc Note1:
Note1: please test the maximum power consumption according to the actual use

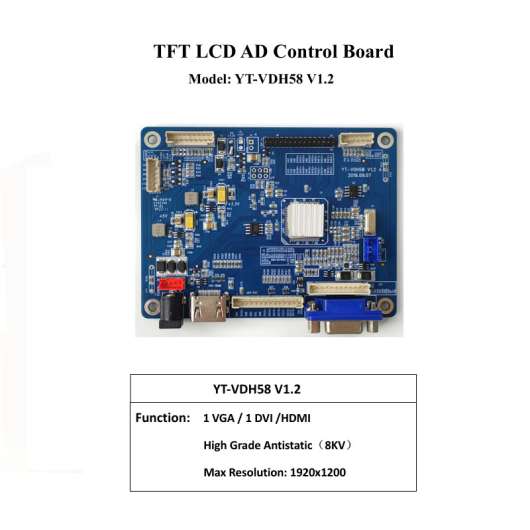

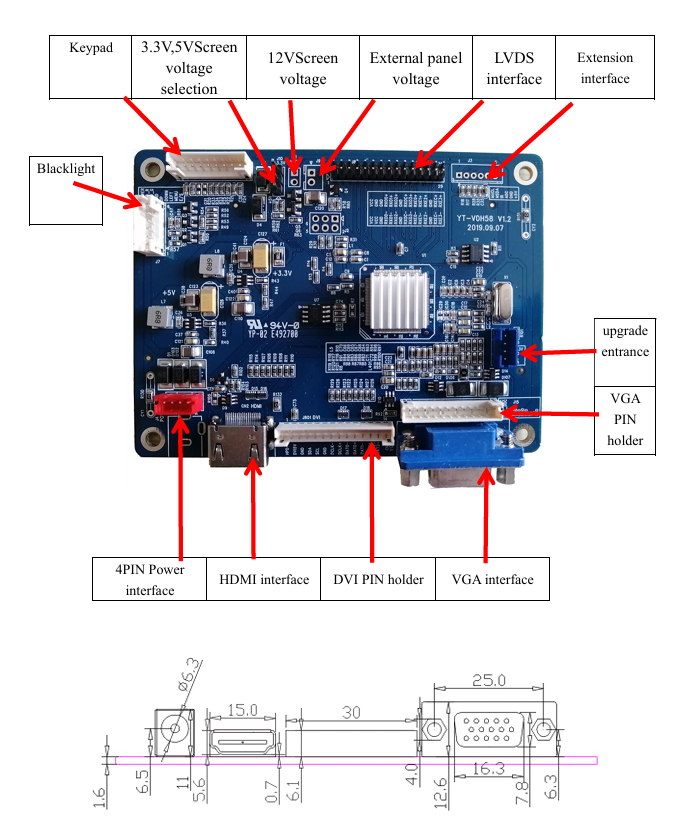

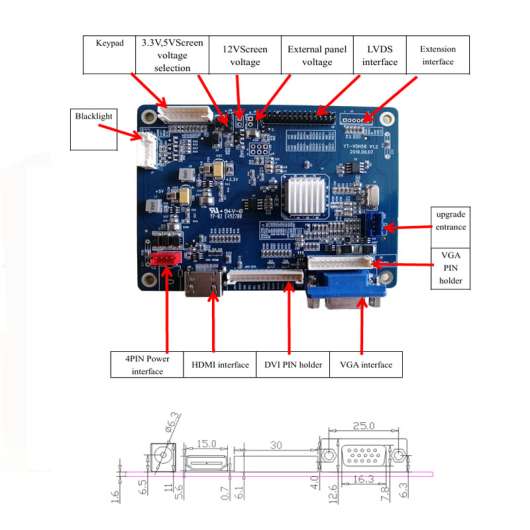

3.CONTROLLER PICTURE

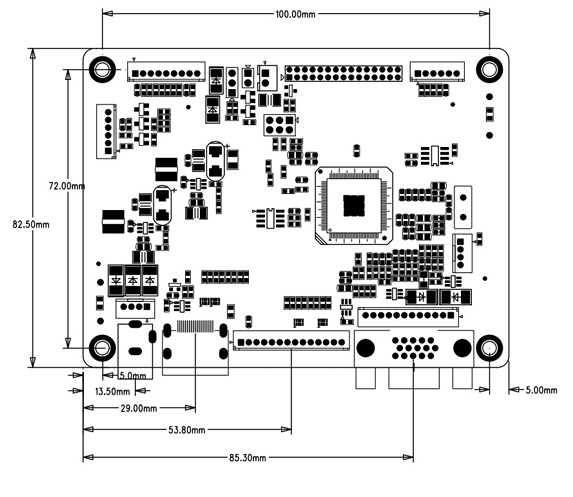

4.CONTROLLER DIMENSIONS
PCB height: 1.6 mm
Total height: 15.0mm
Length and width: 110.0 x 82.5mm
YT-VDH58 Stock, MOQ and Project Support
Stock status: Sufficient stock MOQ: 1 piece
YT-VDH58 Driver Board | VGA, DVI, HDMI to LVDS Converter Board | Multi-Input is a LCD controller board supported for industrial monitors, embedded display systems, kiosks and test equipment. Confirm the complete model suffix, interface, resolution, connector, outline and operating conditions before ordering or replacing another panel.
Applications and Replacement Support
Suitable project areas include industrial monitors, embedded display systems, kiosks and test equipment. For replacement projects, send the original model and required quantity so our engineers can compare electrical, optical and mechanical specifications.
Lead Time and Customization
Samples and volume orders are supported. Lead time is confirmed with the current quotation. Touch panel, optical bonding, controller board, cable and cover-glass customization can be evaluated where applicable.
Request Price, Datasheet and Lead Time
Frequently Asked Questions
Is YT-VDH58 in stock and what is the MOQ?
Sufficient stock is available and the MOQ is 1 piece. Final availability and delivery time are reconfirmed when quoting.
Can you confirm compatibility?
Yes. Send the complete model, interface, resolution, connector, mechanical drawing and application requirements for review.
Related Models and Compatible Display Solutions
Compare related models before ordering. Interface, resolution, connector, dimensions, brightness and operating temperature must be verified for replacement projects.
View more industrial display products | Ask an engineer about YT-VDH58
