RTD2785R_V12 RGB Input HDMI、DP、DVI Input

Q: Is RTD2785R_V12 in stock and what is the MOQ?

RTD2785R_V12 has sufficient stock and the MOQ is 1 piece. Availability and delivery time are reconfirmed when quoting.

RTD2785R_V12 RGB Input HDMI、DP、DVI Input Interface Drive Board,2560x1600

This driver board is mainly used to connect TFT LCD PANEL, and the main chip used is RTD2785, which has built-in analog RGB input、Equipped with HDMI 2. Sufficient stock, MOQ 1 piece. Request price, datasheet and lead time from IDT Display.

Model	RTD2785R
Maximum resolution	2560x1600
Support size	≤82"
Interface	HDMI 、DP、DVI
Input power	＜36w
LCD interface	LVDS
operation temperature	-10～+50℃
storage temperature	-20～+60℃
size	1651133.5mm

Get Latest Price

1.Product Overview

This driver board is mainly used to connect TFT LCD PANEL, and the main chip used is RTD2785, which has built-in analog RGB input、Equipped with HDMI 2.0 input interface, DP1.2 digital signal interface, DVI digital interface, and embedded standard 8051 core. inputaccessible 2560x1600@60Hz ， 2560x2048@50Hz Supports 4 LVDS outputs.

2.Product parameters

Input signal	Simulate R, G, B	Support mode	DOS、VGA、SVGA、XGA、SXGA、 UXGA、WXGA、WXGA+、WSXGA+
		ADC bandwidth	Up to 210MHz
		Support SOG synchronization signal
	HDMI	Maximum input resolution	2560x1600@60Hz
		HDCP	1.4/2.2
	DP	Maximum input resolution	2560x1600@60Hz
	DVI	Maximum input resolution	2560x1600@60Hz
		HDCP	1.4
audio amplifier	Amplifier type	Class D
	Load impedance	4Ω
	power	2x3W
	Crosstalk	-95db
Power Supply	Input voltage	22-26v
	Working power consumption	2W
	Standby power consumption	0.7W
	Screen voltage	3.3v/5v/12v
	Power operation	Working mode, standby mode
Other	OSD language	Chinese/English
	OSD function	Automatic adjustment, color adjustment, image adjustment, etc

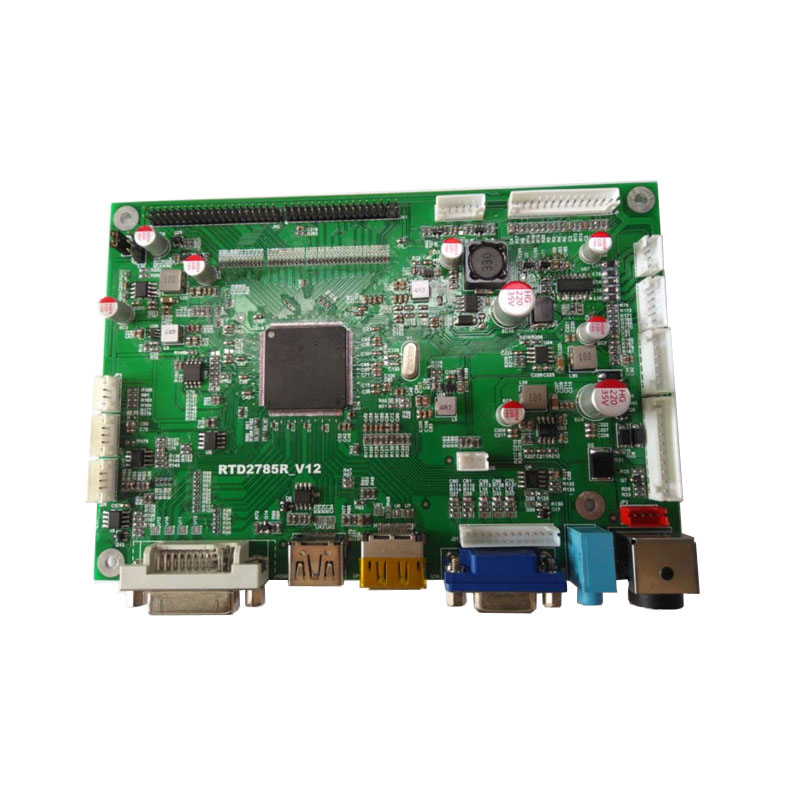

3.Product appearance

RTD2785R_V12 RGB Input HDMI、DP、DVI Input Interface Drive Board,2560x1600

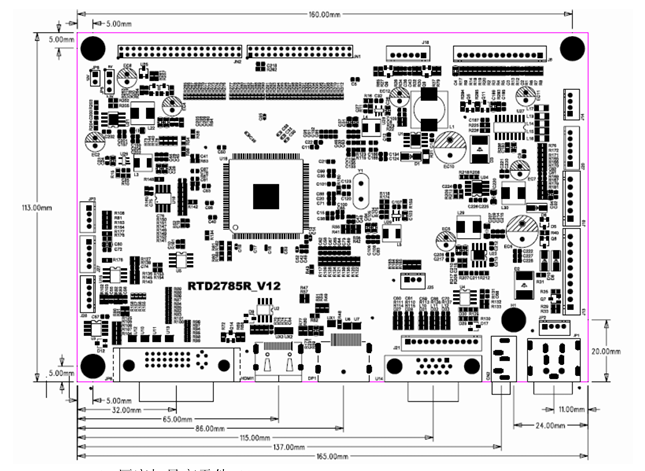

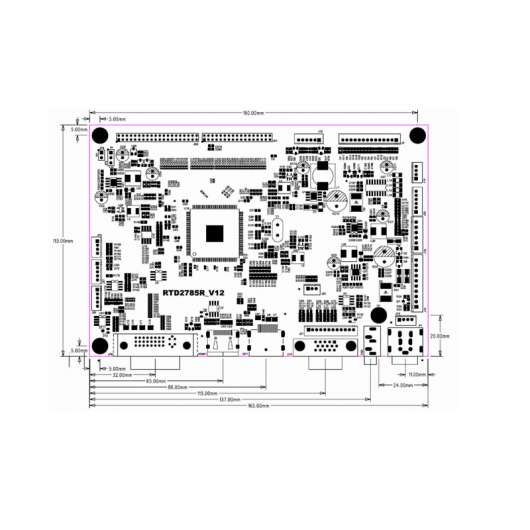

4.Size

PCB thickness plus highest part: 18mm

PCB length 165mm

PCB width 113mm

PCB screw hole diameter 3.5mm

5.Transportation, storage, and usage requirements

1. Do not be subjected to heavy pressure or bending deformation

2. Anti static and water

3. Relative humidity: ≤ 80%

4. Storage temperature: -20 to+60 ℃

5. Operating temperature: -10 to+50 ℃

RTD2785R_V12 Stock, MOQ and Project Support

Stock status: Sufficient stock MOQ: 1 piece

RTD2785R_V12 RGB Input HDMI、DP、DVI Input Interface Drive Board,2560x1600 is a LCD controller board supported for industrial monitors, embedded display systems, kiosks and test equipment. Confirm the complete model suffix, interface, resolution, connector, outline and operating conditions before ordering or replacing another panel.

Applications and Replacement Support

Suitable project areas include industrial monitors, embedded display systems, kiosks and test equipment. For replacement projects, send the original model and required quantity so our engineers can compare electrical, optical and mechanical specifications.

Lead Time and Customization

Samples and volume orders are supported. Lead time is confirmed with the current quotation. Touch panel, optical bonding, controller board, cable and cover-glass customization can be evaluated where applicable.

Request Price, Datasheet and Lead Time

Frequently Asked Questions

Is RTD2785R_V12 in stock and what is the MOQ?

Sufficient stock is available and the MOQ is 1 piece. Final availability and delivery time are reconfirmed when quoting.

Can you confirm compatibility?

Yes. Send the complete model, interface, resolution, connector, mechanical drawing and application requirements for review.
