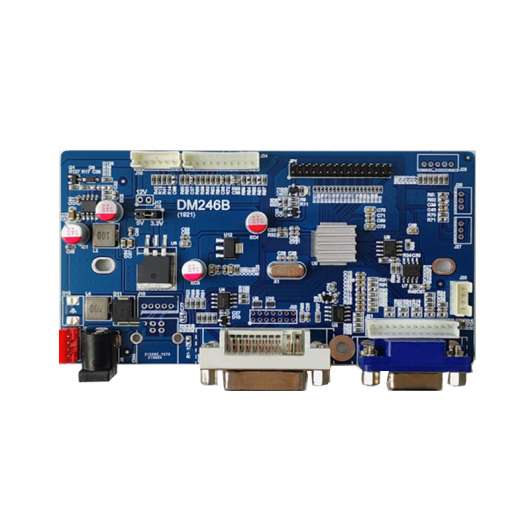

DM246B is a LCD driver board, suitable for TFT LCD screen with single or double LVDS interfaces, support analog R, G, B signal and DVI signal processing, max resolution is UXGA
| Model | DM246B |
| Maximum resolution | 1920*1080 |
| Support size | ≤82" |
| Interface | VGA、DVI |
| Input power | 36W |
| LCD interface | LVDS |
| operation temperature | -25 ~ +75℃ |
| storage temperature | -30 ~ +80℃ |
| size | 123*65mm |
Hangzhou IDT DISPLAY TECHNOLOGY CO.,LTD is the main agent of Youda AUO LCD screen, CHIMEI LCD screen, Mitsubishi LCD screen, INNOLUX LCD screen, Tianma LCD screen, touch LCD screen and other small ...
Read More
Price: Contact for latest real-time quotation. Final pricing depends on quantity, specification, customization requirements and exchange rate. MOQ: 1 piece.
Contact us for the latest price. Pricing and availability vary based on quantity, specifications, customization requirements and exchange rates. MOQ: 1 piece.
Request a Quote
DM246B is a LCD driver board, suitable for TFT LCD screen with single or double LVDS interfaces, support analog R, G, B signal and DVI signal processing, max resolution is UXGA.
Signal Input
Analog RGB
Support Resolution
DOS,VGA,SVGA,XGA,SXGA,
UXGA,
WXGA,WXGA+,WSXGA+
Colors
32BIT
HSYNC Range
25KHz-85KHz
VSYNC Range
60KHz-75KHz
Power Supply
Input Voltage
10-14V
Working power consumption
Standby power consumption
Screen Voltage
3.3V/5V/12V
Power supply operation
Working mode, standby mode
其他
Others
OSD Language
Chinese, English
OSD Function
Automatic adjustment, color adjustment, image adjustment, etc
l Transportation, Storage, Instructions
Avoid heavy pressure and bending deformation
Anti-static and waterproof
Relative humidity: ≤80%
Storage temperature: -30 ~ +80℃
Operating temperature: -25 ~ +75℃

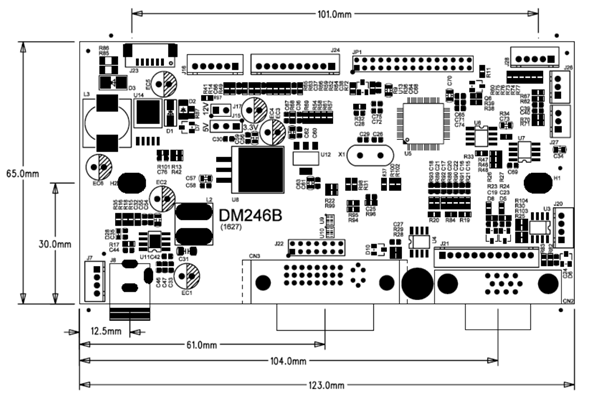

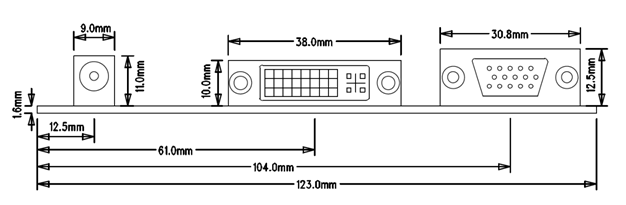

l DIMENSION
PCB thickness plus the highest part :10mm
The PCB length ：123mm
The PCB width ：65mm
The PCB screw bore diameter : 3.5mm
l INTERFACE SCHEMATIC DIAGRAM

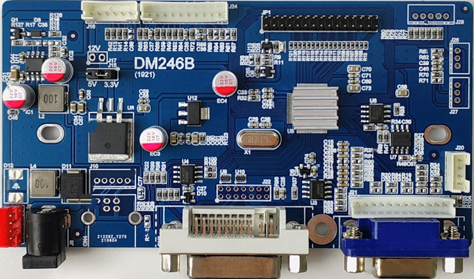

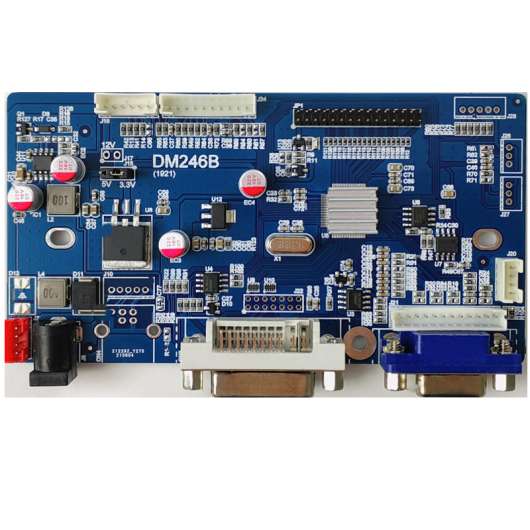

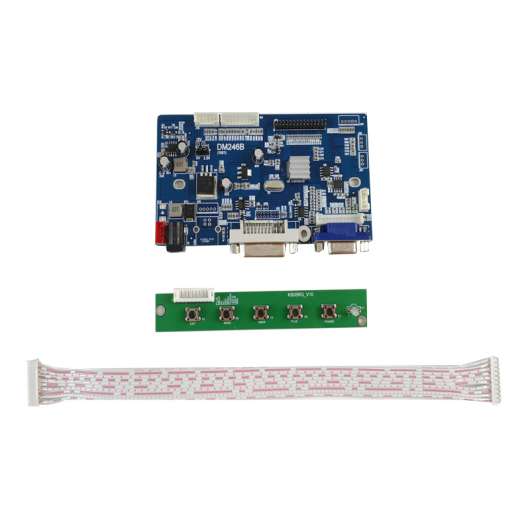

l PICTURE
