JZ-HP68UWV driver board with multiple high-definition input interfaces including VGA, DVI, HDMI, and DisplayPort Ideal for industrial displays, digita. Sufficient stock, MOQ 1 piece. Request price, datasheet and lead time from IDT Display.
| Model | JZ-HP68UWV |
| Maximum resolution | 1920x1200 |
| Support size | ≤82" |
| Interface | 1 VGA, 1 DVI, 1 HDMI ,1 DP |
| Input power | ＜36w |
| LCD interface | LVDS |
| operation temperature | -20℃～+65℃ |
| storage temperature | -20℃～+65℃ |
| size | 108.0x88.9mm |
Hangzhou IDT DISPLAY TECHNOLOGY CO.,LTD is the main agent of Youda AUO LCD screen, CHIMEI LCD screen, Mitsubishi LCD screen, INNOLUX LCD screen, Tianma LCD screen, touch LCD screen and other small ...
Read More
Price: Contact for latest real-time quotation. Final pricing depends on quantity, specification, customization requirements and exchange rate. MOQ: 1 piece.
Contact us for the latest price. Pricing and availability vary based on quantity, specifications, customization requirements and exchange rates. MOQ: 1 piece.
Request a Quote
Product Overview
This driver board is mainly used to support TFTLCD LCD screens. The driver board comes with 1 VGA, 1 DVI, 1 HDMI, and 1 DP interface, and supports LVDS output interface. The motherboard adopts MTK signal processing chip, which has powerful processing functions and can support various specifications of standard and non-standard signals. Using high specification components with good working performance.
*The working temperature range is -20 to 65 ℃.
*Optional addition of automatic photosensitive control.
*Supports a maximum resolution of 1920x1200.
*Can receive remote control function.
*The basic resolution supports up to 85Hz (if the LCD screen used can work at 85Hz).
*The amplifier supports a maximum of 2x10W.
*Support serial protocol control.
2. Product parameters
Output signal
Max resolution
1920x1200
Output
Single/Dual Channel LVDS
Signal Input
VGA
0.7Vp-p@75ohm
Separate / Composite / SOG sync support
DVI
UpTo1920x1200@60Hz
DVI 1.0
HDMI
UpTo1920x1200@60Hz HDMI1.4
DP
UpTo1920x1200@60Hz DP 1.2
Line frequency range
30-75KHz
Field frequency range
50-75Hz
Audio output
maximum output
2 X 10W @ 8Ω
POWER
Working Voltage
12-24V
Drive-screen Voltage
3V/5V/12V
Stand-by
0.2W(just for motherboard)
Note 1: Please test the maximum power consumption based on actual usage

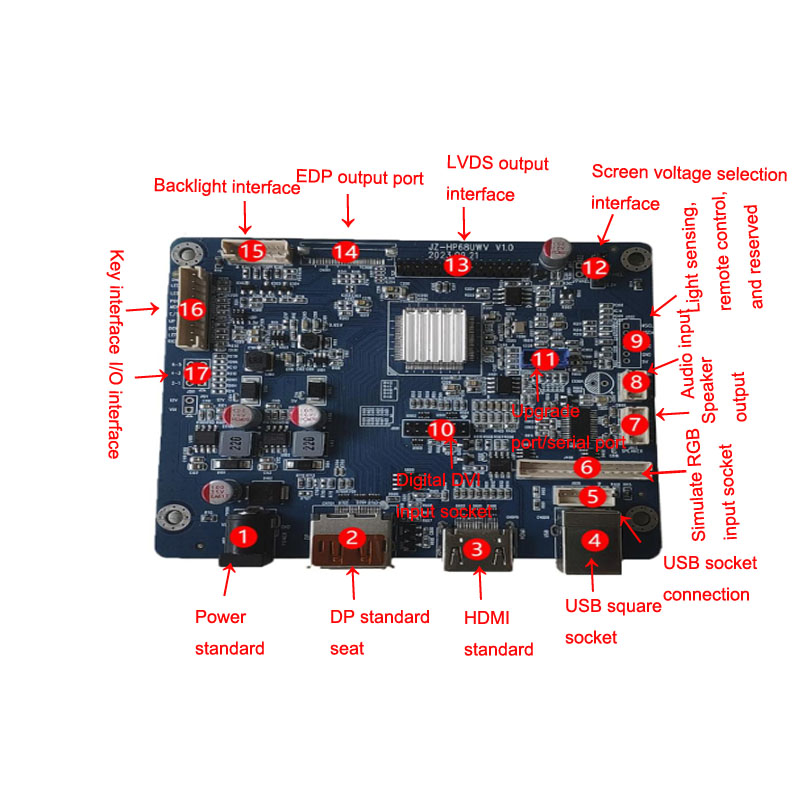

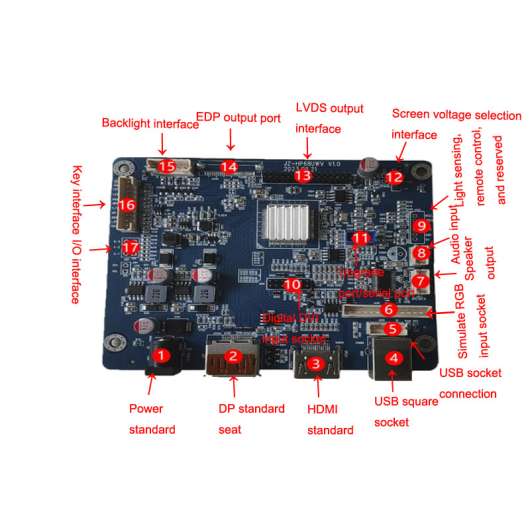

3. Appearance diagram of the board

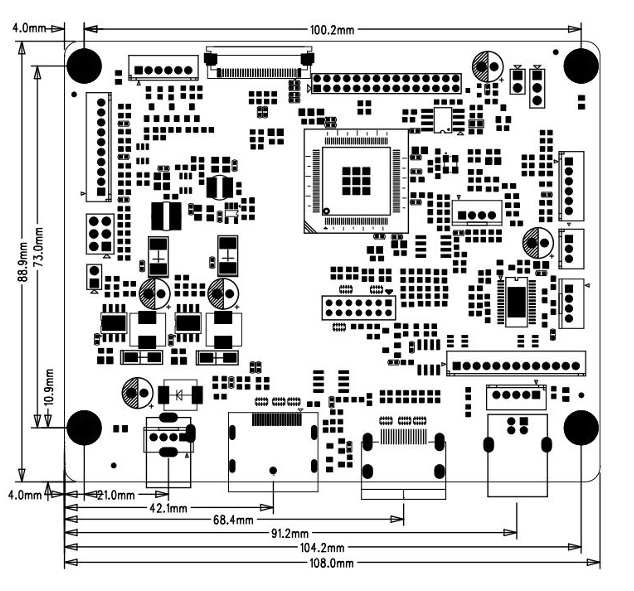

4.Size Description
PCB board thickness: 1.60mm
Size: 108.0x88.9mm
Total height: 15.0mm
Screw hole: Φ 3.5mm
JZ-HP68UWV Stock, MOQ and Project Support
Stock status: Sufficient stock MOQ: 1 piece
JZ-HP68UWV Driver Board - Multi-Interface Display Controller with VGA, DVI, HDMI is a LCD controller board supported for industrial monitors, embedded display systems, kiosks and test equipment. Confirm the complete model suffix, interface, resolution, connector, outline and operating conditions before ordering or replacing another panel.
Applications and Replacement Support
Suitable project areas include industrial monitors, embedded display systems, kiosks and test equipment. For replacement projects, send the original model and required quantity so our engineers can compare electrical, optical and mechanical specifications.
Lead Time and Customization
Samples and volume orders are supported. Lead time is confirmed with the current quotation. Touch panel, optical bonding, controller board, cable and cover-glass customization can be evaluated where applicable.
Request Price, Datasheet and Lead Time
