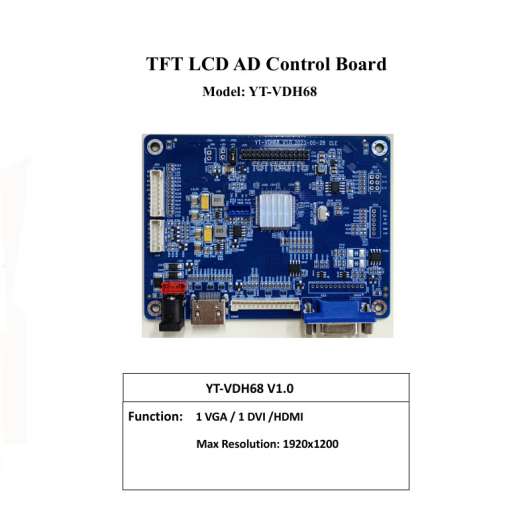

YT-VDH68 ultra wide temperature driver board with exceptional -40°C to 85°C operating range Designed for extreme environment industrial displays, military applications, and outdoor digital signage Reliable performance in harsh conditions
| Model | YT-VDH68 |
| Maximum resolution | 1920x1200 |
| Support size | ≤82" |
| Interface | 1 VGA / 1 DVI /HDMI |
| Input power | ＜36w |
| LCD interface | LVDS |
| operation temperature | -40~85˚C |
| storage temperature | -40~85˚C |
| size | 109.97x82.52mm |
Hangzhou IDT DISPLAY TECHNOLOGY CO.,LTD is the main agent of Youda AUO LCD screen, CHIMEI LCD screen, Mitsubishi LCD screen, INNOLUX LCD screen, Tianma LCD screen, touch LCD screen and other small ...
Read More
Product Brief
The driver board YT-VDH68 is mainly used to support TFT LCD screen, with 1xVGA, 1xDVI, 1xHDMI input interfaces and LVDS output interface. The board adopts MSTAR signal processing chip, which has powerful processing function and can support all kinds of standard and non-standard signals. Using high specification devices, it has good working performance.
*Operating Temperature: -40 to 85˚C
*Automatic photosensitive control optional
*Support resolution up to 1920x1200
*Remote control function optional
*Basically resolutions supported up to 85Hz
*Supports serial protocol control
2.Product Characteristics
display output
Maximum resolution:
Max：1920x1200
Output interface:
Single/Dual LVDS
Video input
VGA
0.7Vp-p@75ohm
Separate / composite / SOG sync support
DVI
Up to 1920x1200@60Hz
DVI 1.0
HDMI
Up to 1920x1200@60Hz
HDMI 1.0
Horizontal Frequency range
30-75KHz
Vertical Frequency range
50-75Hz
Power Supply
Working Voltage
12V
Drive screen voltage
3.3V/5V/12V
Standby power consumption
<0.2W (only board)
Note1: please test the maximum power consumption according to the actual use

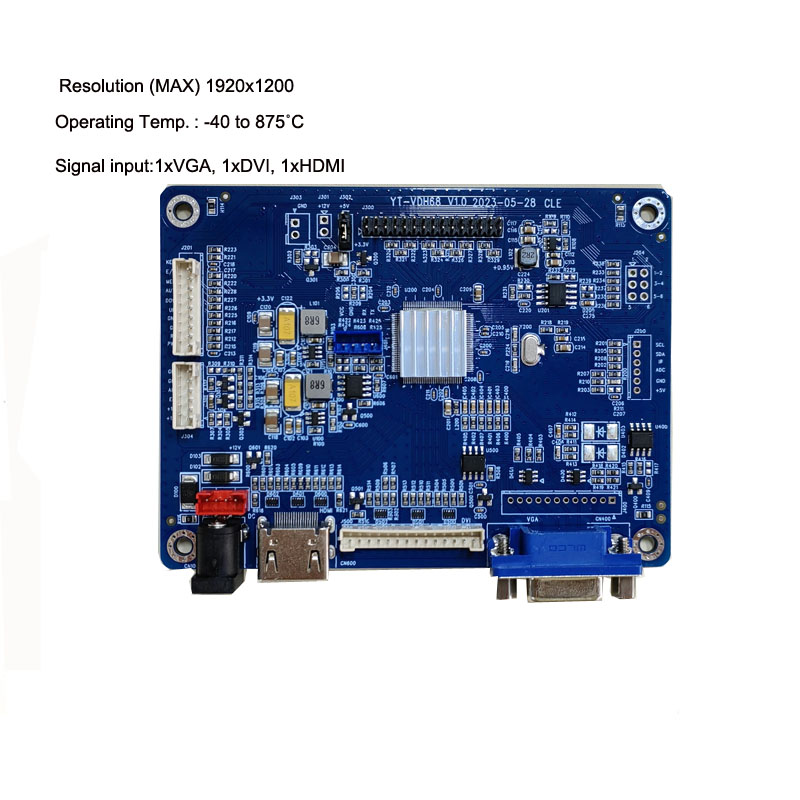

3.Product Picture

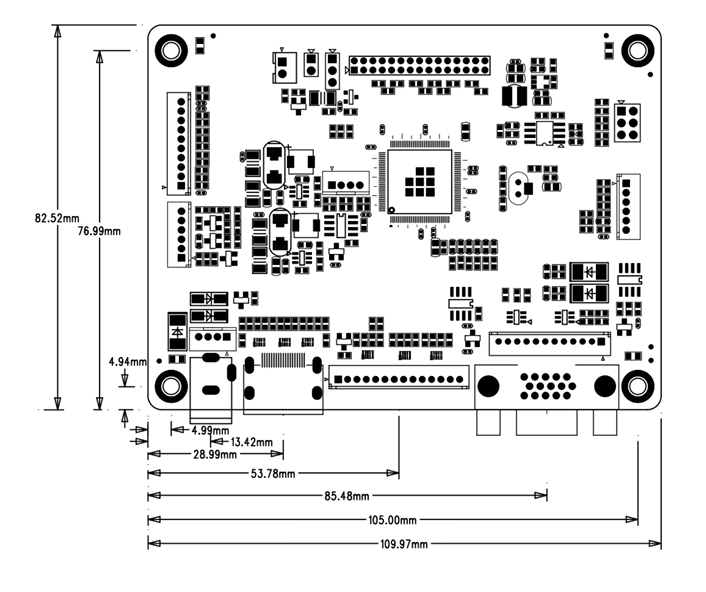

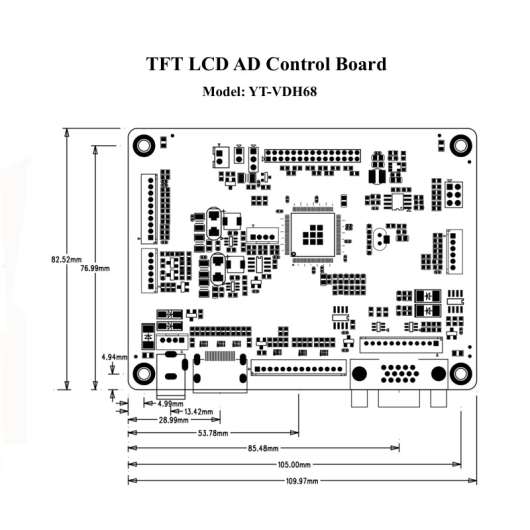

4. Dimension
PCB thickness: 1.6mm
Size: 109.97mmx82.52mm
Total Thickness: 15.0mm
Screw hole: 3.5mm
