This driver motherboard is mainly used to support TFT LCD injection screen The driver board comes with 1 VGA, 1 DP, and 1 HDMI input, and supports LVD. Sufficient stock, MOQ 1 piece. Request price, datasheet and lead time from IDT Display.
| Model | RTD2551 |
| Maximum resolution | 1920*1080 |
| Support size | ≤82" |
| Interface | 1 VGA, 1 DP, and 1 HDMI |
| Input power | ＜5w |
| LCD interface | LVDS |
| operation temperature | -20～+75℃ |
| storage temperature | -30 ~ +80℃ |
| size | 123*70*3.5mm |
Hangzhou IDT DISPLAY TECHNOLOGY CO.,LTD is the main agent of Youda AUO LCD screen, CHIMEI LCD screen, Mitsubishi LCD screen, INNOLUX LCD screen, Tianma LCD screen, touch LCD screen and other small ...
Read More
Price: Contact for latest real-time quotation. Final pricing depends on quantity, specification, customization requirements and exchange rate. MOQ: 1 piece.
Contact us for the latest price. Pricing and availability vary based on quantity, specifications, customization requirements and exchange rates. MOQ: 1 piece.
Request a Quote
1、Product Overview
This driver motherboard is mainly used to support TFT LCD injection screen. The driver board comes with 1 VGA, 1 DP, and 1 HDMI input, and supports LVDS output interface. The motherboard adopts REALTEK signal processing chip, which has powerful processing functions and can support various specifications of standard and non-standard signals. Using high specification components with good working performance.
2. Function
Supports HDMI input,
VGA input, supports up to 1080P
Support buttons and LED indicator lights
Backlight control, backlight brightness adjustment
Dual LVDS LCD screen interface
Serial communication, ISP upgrade
Expand ADC port and connect external photosensitive components for automatic brightness adjustment
3、Product feature description
Input signal
Simulate R, G, B
Support mode
DOS、VGA、SVGA、XGA、SXGA、 UXGA、WXGA、WXGA+、WSXGA+
color
Up to 32bit
Line
25KHz-85KHz
Field
60-75Hz
HDMI and DVI signals
Support mode
Highest resolution 1920x1080
Power Supply
input voltage
10-14v
Working power consumption
<5w
standby power
<0.5w
Screen voltage
3.3v/5v/12v
Power operation
Working mode, standby mode
other
OSD language
Simplified Chinese, English
OSDfunction
Automatic adjustment, color adjustment, image adjustment, etc
4、Simulation R, G, B support list
pattern
Resolution
Horizontal frequency (KHz)
Field frequency (Hz)
standard
DOS
640x480
720x400
29.7
29.3
60
70
VESA
VGA
640x480
29.7
37.7
60
75
VESA
SVGA
800x600
37.4
47.1
60
75
VESA
XGA
1024x768
47.8
60.3
60
75
VESA
SXGA
1280x1024
63.7
80.3
60
75
VESA
WXGA
1440x900
55.9
70.6
60
75
VESA
WSXGA+
1680x1050
65.3
82.3
60
75
VESA
UXGA
1920x1080
67.2
84.6
60
75
VESA

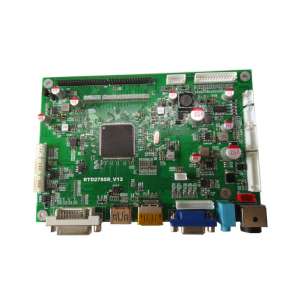

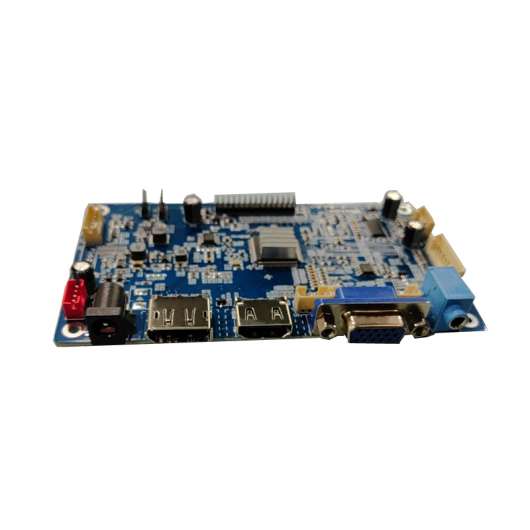

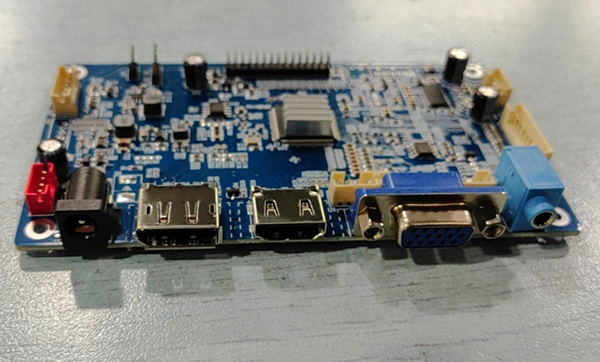

5、Product appearance

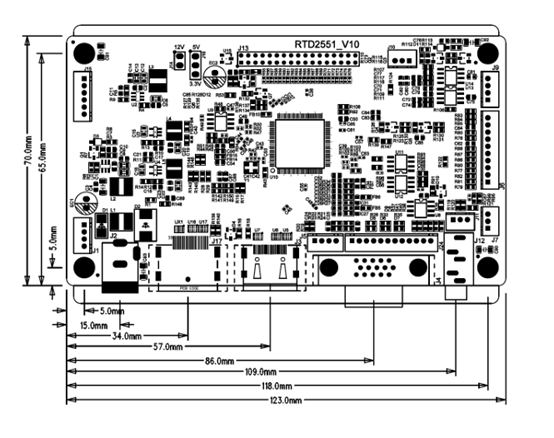

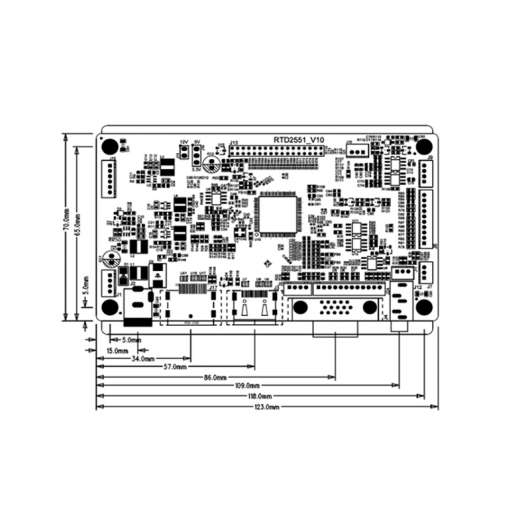

6、Product size
PCB thickness plus highest part:
PCB length: 123mm
PCB width: 70mm
PCB screw hole diameter: 3.5mm
Precautions for use
Relative humidity: ≤ 80%
Storage temperature: -30 to+80 ℃
Operating temperature: -20 to+75 ℃
Please keep the board away from static electricity
Do not be subjected to heavy pressure or bending deformation
Do not connect the power supply until the screen drive cable is properly connected
Do not drop conductive objects onto the board while it is in operation
Do not disassemble the board card
If there is dust on the board, please wipe it with a dry cloth
RTD2551 Stock, MOQ and Project Support
Stock status: Sufficient stock MOQ: 1 piece
RTD2551 Driver Board With 1 VGA, 1 DP, and 1 HDMI Input Supports LVDS Output is a LCD controller board supported for industrial monitors, embedded display systems, kiosks and test equipment. Confirm the complete model suffix, interface, resolution, connector, outline and operating conditions before ordering or replacing another panel.
