Upgrade your display with the JZ-VH68U controller board This versatile driver board converts VGA and HDMI signals to LVDS for TFT LCD screens and features standard USB support for touch functionality Perfect for monitor repairs, digital signage
| Model | JZ-VH68U |
| Maximum resolution | 1920x1200 |
| Support size | ≤82" |
| Interface | VGA+ HDMI/ USB |
| Input power | ＜36w |
| LCD interface | LVDS |
| operation temperature | -20-- 60℃ |
| storage temperature | -20-- 60℃ |
| size | 121.0 x 70.0 mm |
Hangzhou IDT DISPLAY TECHNOLOGY CO.,LTD is the main agent of Youda AUO LCD screen, CHIMEI LCD screen, Mitsubishi LCD screen, INNOLUX LCD screen, Tianma LCD screen, touch LCD screen and other small ...
Read More
INTRODUCTION
JZ-VH68U is a high-quality TFT LCD monitor controller board with VGA+ HDMI inputs, As the board is designed to act as a full monitor interface, besides the main functionality, also various appealing On-Screen-Display Menu layouts are possible on customer’s request.
Key features:
* LVDSoutput resolution up to 1920x1200 &1920x1080
* Light sensor (optional)
* Working temperature:-20-- 60℃
* Remote control * Support Serial UARTcontrol
*Audio amplifier: 2x10W
* Support DDC/CI (optional)
* Support USB standard port to pin port
2. GENERALSPECIFICATION
Output signal:
Max resolution：
Max. 1920x1200
Output：
Single/Dual/ LVDS
Signal Input:
Analog RGB：
Horizontal Freq : 30—120KHz
Vertical Freq : 50—75Hz 0.7Vp-p@75ohm
Separate / Composite / SOG sync support
HDMI:
Horizontal Freq : 30—120KHz
Vertical Freq : 50—75Hz
OSDKeypad:
Power, Menu, Exit, Plus, Minus
Menutype:
Bitmap Menu
Language:
English/Chinese/ (optional multi-language)
OSD MENU:
Mode/Brightness/Contrast/Saturation/Sharpness/Hue
FUNCTION
Language/Reset/Color Temp.
PC
Clock/Phase/H position/V position/Auto configure
POWER
Stand-by
<0.5W 12Vstb/200mA
Input
12V/dc Note1)
Note 1) Max power is depending on the subject display to be used.
EDID datais controllable to change the necessary information. Preferred resolution.
Optional support DDC/CI.

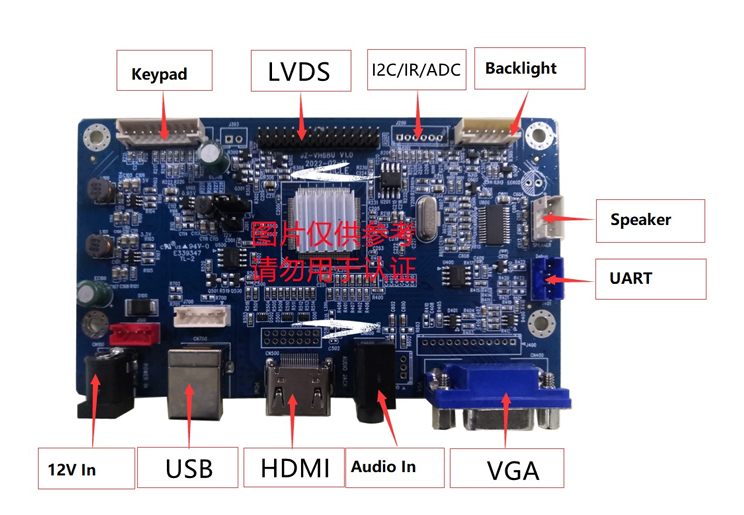

3. CONTROLLERPICTURE

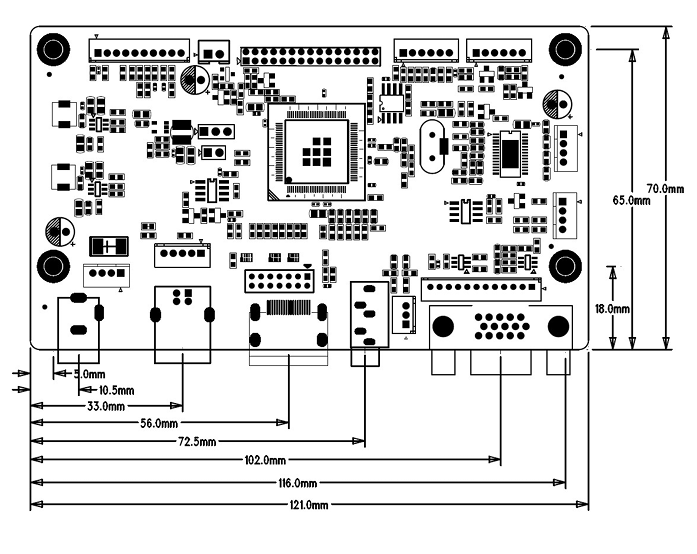

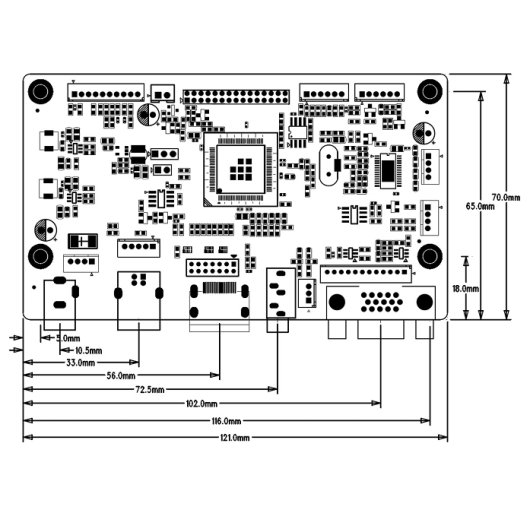

4. CONTROLLER DIMENSIONS
PCB height: 1.6 mm
Total height: 15.0 mm
Length and width: 121.0 x 70.0 mm
