The driver board JZ-H58 is mainly used to support TFT LCD screens with max resolution 1920x1200 It has 1xHDMI input interface, supports LVDS output in. Sufficient stock, MOQ 1 piece. Request price, datasheet and lead time from IDT Display.
| Model | JZ-H58 |
| Maximum resolution | 1920x1200 |
| Support size | ≤82" |
| Interface | HDMI |
| Input power | ＜36w |
| LCD interface | LVDS |
| operation temperature | -20℃～+70℃ |
| storage temperature | -20℃～+70℃ |
| size | 76.0*55.0 mm |
Hangzhou IDT DISPLAY TECHNOLOGY CO.,LTD is the main agent of Youda AUO LCD screen, CHIMEI LCD screen, Mitsubishi LCD screen, INNOLUX LCD screen, Tianma LCD screen, touch LCD screen and other small ...
Read More
Price: Contact for latest real-time quotation. Final pricing depends on quantity, specification, customization requirements and exchange rate. MOQ: 1 piece.
Contact us for the latest price. Pricing and availability vary based on quantity, specifications, customization requirements and exchange rates. MOQ: 1 piece.
Request a Quote

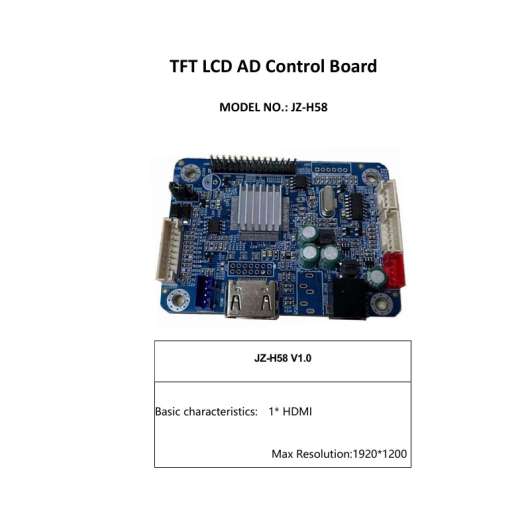

1.OVERVIEW
The driver board JZ-H58 is mainly used to support TFT LCD screens with max resolution 1920x1200. It has 1xHDMI input interface, supports LVDS output interfaces. This board adopts Mstar signal processing chip which has powerful processing function and supports all kinds of standard and non standard signals. The driver board JZ-H58 uses high specification components, with good performance.
Key Features:
* Max resolution:1920x1200
* Operating temperature: -20 ~70℃
* Support ADJ/PWM dimming through software
* Basic resolution is supported to 85Hz (if the LCD can work at 85Hz)
2.PARAMETERS
OUTPUT
Max Resolution
1920x1200
Output Interface
Single/Dual LVDS
INPUT
HDMI
Horizontal Frequency
30-120KHz
Vertical Frequency
50-75Hz
OSD Board
Power, Menu, Exit, Plus, Minus
Menu type
Graphical menu
Languages
Chinese, English, German, French, Spanish, Italian, Japanese, Russian
Functional operation
Mode/Brightness/Contrast
FUNCTION
Language/Reset/Color Temp
PC
Clock
Phase
H position
V position
Auto configure
POWER SUPPLY
Standby
< 0.5W 12Vstb/200mA
Input
12V/DC Note1
Note: Please test the maximum power consumption according to the actual use

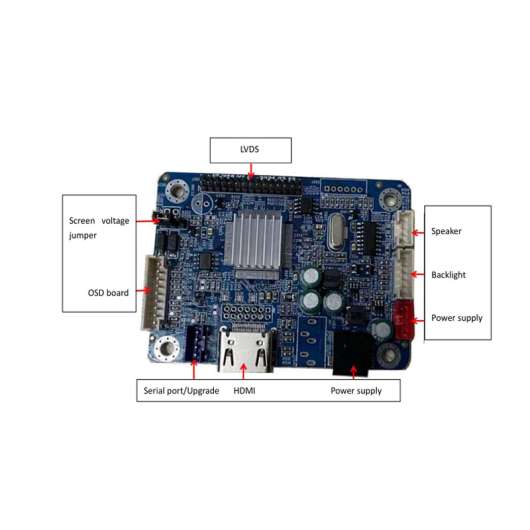

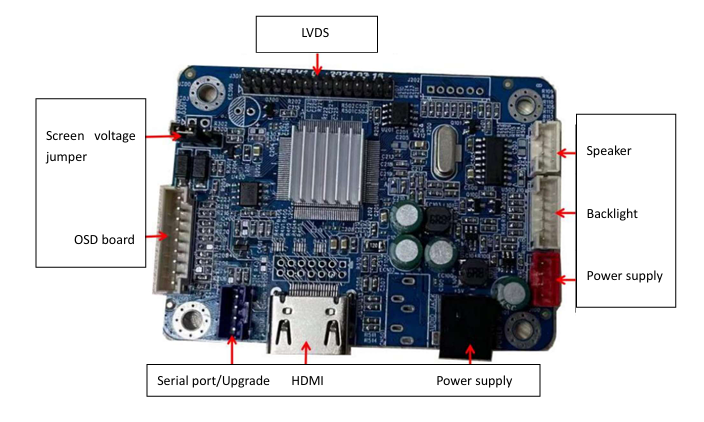

3、Product images
4.MECHANICAL FEATURE

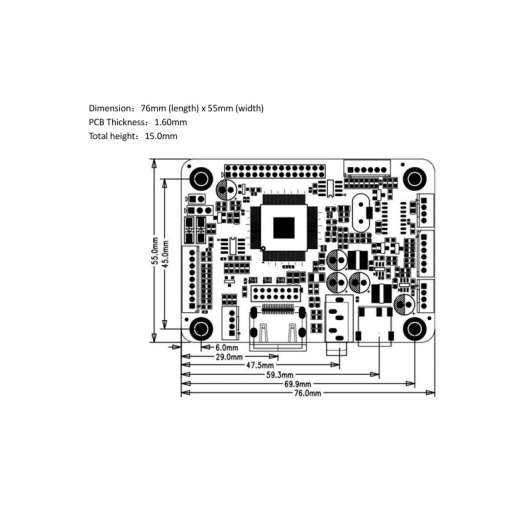

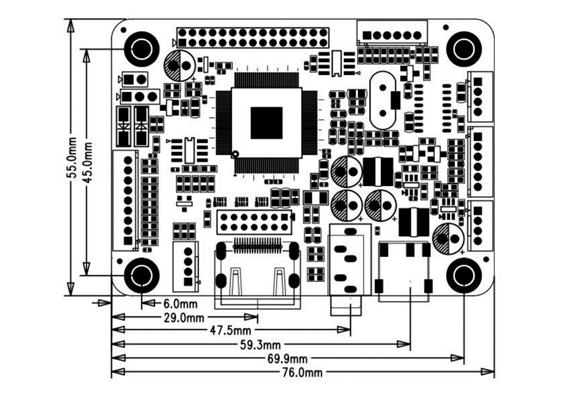

Dimension：76mm (length) x 55mm (width)
PCB Thickness：1.60mm Total
height：15.0mm
JZ-H58 Stock, MOQ and Project Support
Stock status: Sufficient stock MOQ: 1 piece
JZ-H58 driver board comes with HDMI channel Support ADJ/PWM software dimming is a LCD controller board supported for industrial monitors, embedded display systems, kiosks and test equipment. Confirm the complete model suffix, interface, resolution, connector, outline and operating conditions before ordering or replacing another panel.
Applications and Replacement Support
Suitable project areas include industrial monitors, embedded display systems, kiosks and test equipment. For replacement projects, send the original model and required quantity so our engineers can compare electrical, optical and mechanical specifications.
Lead Time and Customization
Samples and volume orders are supported. Lead time is confirmed with the current quotation. Touch panel, optical bonding, controller board, cable and cover-glass customization can be evaluated where applicable.
Request Price, Datasheet and Lead Time
Frequently Asked Questions
Is JZ-H58 in stock and what is the MOQ?
Sufficient stock is available and the MOQ is 1 piece. Final availability and delivery time are reconfirmed when quoting.
Can you confirm compatibility?
Yes. Send the complete model, interface, resolution, connector, mechanical drawing and application requirements for review.
