JZ-HP98 4k Driver Board with multiple high-definition input interfaces including VGA, DVI, HDMI, and DisplayPort Ideal for industrial displays, digital signage, and professional multi-source video applications Compatible with various LCD panels
| Model | JZ-HP98 |
| Maximum resolution | 4096x2160 |
| Support size | ≤82" |
| Interface | 2* HDMI ,2 * DP,USB |
| Input power | ＜36w |
| LCD interface | VBY1/eDP |
| operation temperature | -20℃～+65℃ |
| storage temperature | -20℃～+65℃ |
| size | 143.0 x81.5 mm |
Hangzhou IDT DISPLAY TECHNOLOGY CO.,LTD is the main agent of Youda AUO LCD screen, CHIMEI LCD screen, Mitsubishi LCD screen, INNOLUX LCD screen, Tianma LCD screen, touch LCD screen and other small ...
Read More
Price: Contact for latest real-time quotation. Final pricing depends on quantity, specification, customization requirements and exchange rate. MOQ: 1 piece.
Send your required quantity, application, delivery destination and technical requirements. Our display specialists will reply with availability and a suitable solution.
Request a QuoteIDT industrial LCD controller board 28 is available for LCD controller board integration. Typical evaluation scenarios include display replacement, embedded video and industrial monitor projects. Before ordering, confirm the complete original model number and revision rather than relying only on display size.
Confirm outline dimensions, active area, mounting points, resolution, signal interface, connector and pin assignment, timing, supply voltage, brightness, viewing direction, operating temperature and backlight requirements. A similar model name does not guarantee electrical or mechanical interchangeability.
MOQ is 1 piece. Contact us for the latest real-time quotation, current availability and lead time. Pricing changes with order quantity, specification, customization requirements and exchange rate. Replacement-panel review, touchscreen, cover glass, optical bonding, cables and controller-board support are available for qualified projects.
Request Latest Price and Compatibility Review
Send the original model number, mechanical drawing, interface, connector pinout, resolution, brightness and operating-temperature requirements for an engineering review.
MOQ is 1 piece. Price is provided by real-time quotation according to quantity, availability, specification, customization and exchange rate.
Yes. We can evaluate alternative panels and support touch, cover glass, optical bonding, cables and controller-board integration for qualified projects.
INTRODUCTION
This driver board is mainly used to support VBY1/eDP interface TFT LCD screen, driver board with 2 channel HDMI and 2 channel DP, support VBY1, eDP output interface. MTK signal processing chip is adopted in the motherboard, which has powerful processing functions and can support various standard and non-standard signals. The use of high - specification devices, with good performance.
Key features:
* Built-in VBY1 interface, supports LCD Panel with the highest resolution of 4096x2160@60hz.
* Support 4K eDP signal output, support HBR and HBR2 format eDP LCD screen.
* It integrates 4 composite digital interfaces to support HDMI/ DP interfaces.
* Support USB upgrade.
2. GENERAL SPECIFICATION
Output signal
Max resolution
4096x2160
Output
VBY1/eDP
Signal Input
DP
Up To 4096x2160@60Hz
DP 1.4
HDMI
Up To 4096x2160@60Hz HDMI 2.0
Horizontal Freq
30-75KHz
Vertical Freq
50-75Hz
Voice Output
Max Power
2 X 10W @ 8Ω
POWER
Working Voltage
12V
Drive-screen Voltage
3V/5V/10V/12V/VCC
Stand-by
0.252W(just for motherboard)
Note1: Max power is depending on the subject display to be used.
Note2: Standby power consumption is affected by the testing instrument and testing environment, and there may be some error.

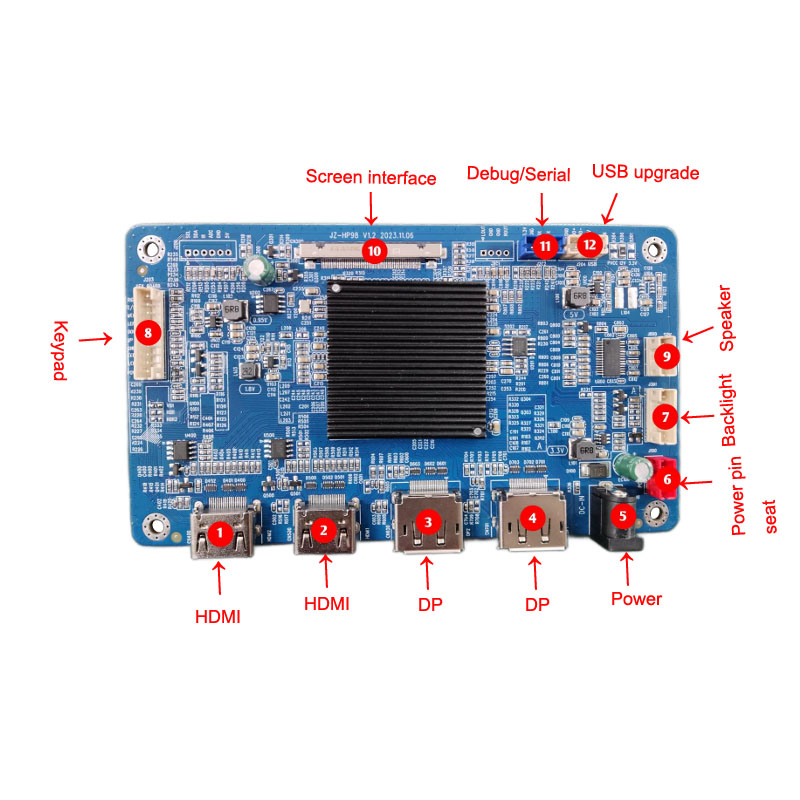

3. CONTROLLER PICTURE

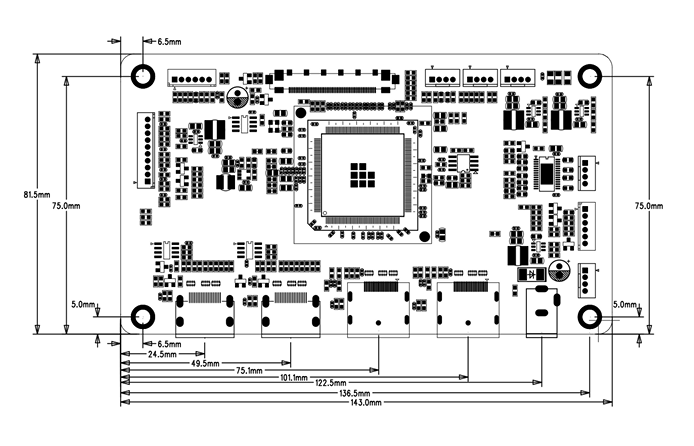

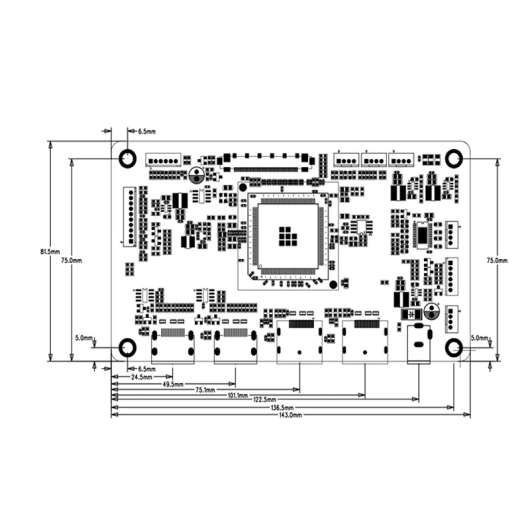

4.CONTROLLER DIMENSIONS
PCB Thickness：1.6mm
Length and width： 43.0 x 81.51mm
Total height：15.00mm
Bore Diameter：Φ3.5mm
