G070ACE-LH2 INNOLUX 7" Industrial TFT LCD | IPS 800x480 Wholesale | Global Stock

INNOLUX CHIMEI 7 inch IPS Industrial LCD: G070ACE-LH2 800x480, 500cd m² brightness, LVDS interface For harsh environments Wholesale pricing with MOQ 1pcs global shipping Request samples & bulk quote!

Model G070ACE-LH2
Brand INNOLUX
Size 7.0inch
Resolution 800*480
Brightness 500cd/m2
Perspective 89/89/89/89
Interface LVDS
Operating Temp -30 ~ 85 °C
Production State In Production
Click For Price

1.INNOLUX 7" Industrial TFT LCD G070ACE-LH2 Application Details

Basic Info :Panel BrandAUOPanel ModelG070ACE-LH2
Diagonal Size7.0inchApplicationIndustrial
Panel Typea-Si TFT-LCD , LCM

Reliability :Operating Temp.-30 ~ 85  °CStorage Temp.-40 ~ 90  °C
RoHS StateRoHSVibration Level1.5G (14.7 m/s²)
Specific Features :Wide Temperature，WLED Backlight，Life>=50K hours,With LED Driver，6/8 bit，Matte



2.INNOLUX 7" Industrial TFT LCD G070ACE-LH2 Mechanical Details

Pixel Features :Pixel Format800(RGB)*480, WVGADot Pitch (mm)0.0635*0.1905 (H*V)
ConfigurationRGB Vertical StripePixel Pitch (mm)0.1905*0.1905 (H*V)  [133PPI]
Mechanical Size :Active Viewing (mm)152.4(H) *91.44(V)Bezel Area(mm)154.4(H) *93.44(V)
Outline Dim.(mm)170(H) *110(V)Overall Depth6.0/9.35 (Typ./Max.)
Outline Features :Form FactorFlat RectangleOrientationLandscape type
Aspect Ratio15:9 (H:V)Shape Style
Fixation :
 		Side mounting holes (4-M3) on up, down bezel
Other Detail :Mass183±9gSurfaceAntiglare, Hard coating (3H)


3.INNOLUX 7" Industrial TFT LCD G070ACE-LH2 Optical Details

BrightnessBrightness500 cd/m²(Typ.)Contrast Ratio800:1 (Typ.) (Transmissive)
Viewing Angle89/89/89/89 (Typ.)(CR≥10)Optical ModeAAS, Normally Black, Transmissive
Viewing DirectionSymmetryResponse Time13/12 (Typ.)(Tr/Td)
Color Performance :ChromaticityWx:0.313; Wy:0.329Color Numbers262K/16.7M (6-bit / 8-bit)
Color Temperature6485KUniformity1.43 (Max.)(5 points)
1931 Color Gamut :NTSC Ratio-sRGB82% coverage
Adobe RGB62% coverageDCI-P361% coverage
Rec.202044% coverageRemarkssRGB (Rec.709, BT.709), Rec.2020 (BT.2020)


4.INNOLUX 7" Industrial TFT LCD G070ACE-LH2  Electronics Details

Frame Frequency :60Hz
Reverse Scan :No
Power Consumption :2.45W


5.INNOLUX 7" Industrial TFT LCD G070ACE-LH2 Backlight Details

Back-light Features :Lamp TypeWLEDAmount-Life Time50K(Min.) (Hours)
Replacement-Lamp Shape-PositionEdge light type
Interface Features :Position
 		-Physical TypeIncluded in signal interface
Backlight Driver :With LED Driver
Backlight Driver :Input Current0.1/0.17/0.2A (Min./Typ./Max.)Input Voltage12±1.2V
Consumption2.0/2.3W (Typ./Max.)


6.INNOLUX 7" Industrial TFT LCD G070ACE-LH2 Interface Details

Signal Electrical :Input Current135/200mA (Typ./Max.)Input Voltage3.3V (Typ.)
Consumption0.45W (Typ./Max.)Signal InterfaceLVDS (1 ch, 6/8-bit)
Interface Features :Position-Physical TypeConnector
Signal Interface :BrandModelAmountPin PitchPin AmountPin Assignment
STARCONN093G30-B0001A-G41 pcs1.0mm30pins


7.Innolux 7" Industrial TFT LCD G070ACE-LH2 Packing Details

Package Box :QuantityWeightBox Size
38 pcs / box8.3 Kgs445*370*275 mm (L*W*H)

Post A Message

Your email address will not be published. Required fields are marked *

Name*
Your E-Mail*
Message*
G070ACE-LH1 7" Ultra High Brightness 1000cd/m2 TFT LCD | 800x480 IPS Industrial Display - Wholesale G070ACE-LH3 INNOLUX 7" Industrial LCD Display- 800x480 500nits | Global Stock

Related Products

AT070TN92 7" TFT LCD Panel 800×...

AT070TN92 7" TFT LCD Panel...

NJ070NA-23A INNOLUX 7" 1024x600 T...

NJ070NA-23A INNOLUX 7" 1024...

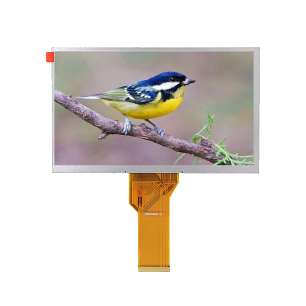

AT070TN94 7" 400nits TFT LCD | ...

AT070TN94 7" 400nits TFT L...

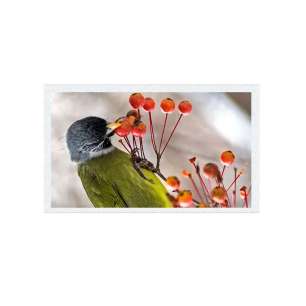

G070Y2-T02 7" TTL LCD | Chimei ...
