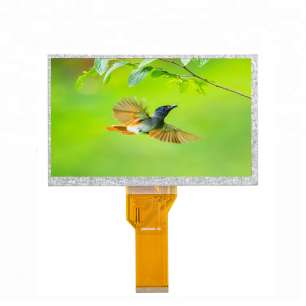

AT070TN93 V.2 INNOLUX 7" TFT LCD | 800x480 30-pin Industrial Display - Global Stock

AT070TN93 V.2 INNOLUX 7` TFT LCD
AT070TN93 V.2 INNOLUX 7` TFT LCD
  • AT070TN93 V.2 INNOLUX 7` TFT LCD
  • AT070TN93 V.2 INNOLUX 7` TFT LCD

AT070TN93 V.2 INNOLUX 7" TFT LCD | 800x480 30-pin Industrial Display - Global Stock

Original Innolux AT070TN93 V.2 7" TFT LCD. 800x480, 30-pin LVDS interface. Industrial-grade -20~60°C & IP65. Direct replacement for V.1 with better ESD protection. RoHS certified. DDP shipping & MOQ 1pc. Get pinout datasheet!

Model AT070TN93 V.2
Brand Innolux
Size 7.0inch
Resolution 800×480
Brightness 250cd/m²(Typ.)
Perspective 70/70/50/70
Interface RGB
Operating Temp -20 ~ 60 °C
Production State In Production
Click For Price

1.Chimei Innolux AT070TN93 V.2 Application Details

Basic Detail :Panel BrandINNOLUX/CHI MEIModel NameAT070TN93 V.2
Panel Typea-Si TFT-LCD , LCMAnother NameAT070TN93 V2
Panel Size7.0”Designed ForDigital Photo Frame，Portable DVD Player，MP3 PMP
Maximum Ratings :OP Temperature-20 ~ 60 °CST Temperature-30 ~ 70 °C
RoHSRoHSVibration Level-
Features :WLED Backlight，U/D.L/R Reverse，6/8bit，Matte


2.Chimei Innolux AT070TN93 V.2  Optical Details

Basic Information :Luminance250 cd/m²(Typ.)Contrast Ratio500 : 1 (Typ.) (Transmissive)
Good View at6 o'clockResponse Speed10/15 (Typ.)(Tr/Td) (ms)
Viewing Angle70/70/50/70 (Typ.)(CR≥10)Operating ModeTN, Normally White, Transmissive
Color Performance :ChromaticityX:0.310; Y:0.330Display Colors262K/16.2M (6-bit / 6-bit + Dithering)
Color Temperature6638KWhite Variation1.33/1.43 (Typ./Max.)(9 points)


3.Chimei Innolux AT070TN93 V.2  Mechanical Details

Pixel Features :Number of Pixel800(RGB)*480 [WVGA]ArrangementRGB Vertical Stripe
Dot Pitch (mm)0.0642*0.1790 (H*V)Pixel Pitch (mm)0.1926*0.1790 (H*V)  [134PPI]
Physical Size :Active Viewing(mm)154.08(H) *85.92(V)Bezel Area (mm)156.7(H) *89.1(V)
Outline Dim.(mm)164.9(H) *100(V)Depth(mm)3.35±0.3
Outline Features :Form StyleFlat RectangleOutline Shape
Aspect Ratio16:9 (H:V)OrientationLandscape type
Holes & Brackets :Without
Other Spec :Weight117g (Typ.)SurfaceAntiglare


4.Chimei Innolux AT070TN93 V.2  Electronics Details

Refresh Rate :60Hz
Reverse Scan :Yes (U/D, L/R)
Power Consumption :1.90W (Typ.)
Time Controller (T-CON) :Embedded T-CON


5.Chimei Innolux AT070TN93 V.2  Interface Details

Signal Electrical :Signal InterfaceParallel RGB (1 ch, 6/8-bit)Logic Voltage0≤VIL≤0.3DVDD; 0.7DVDD≤VIH≤DVDD
Signal Electrical :Voltage Input3.3/10.4/16.0/-7.0V (Typ.)(DVDD/AVDD/VGH/VGL)Current Input226mW (Typ.)
Consumption226mW (Typ.)
Interface Features :Position-Physical TypeFPC
Interface Detail :BrandModelPin PitchPinsAmountPin Assignment


0.5mm50 pins1 pcsDRGB-50P1C8B-115A


6.Chimei Innolux AT070TN93 V.2  Backlight Details

Lamp Features :Lamp TypeWLEDQuantity3S9PPositionEdge light type
Exchange
-		Lamp ShapeArrayLamp Life20K(Min.) (Hours)
Lamp Electrical :Voltage Supply9.3±0.6VCurrent Supply170/180/200mA (Min./Typ./Max.)
Consumption1.674W (Typ.)
Interface Features :Position-Physical TypeIncluded in panel signal interface
Backlight Driver :No


7.Chimei Innolux AT070TN93 V.2  Carton Details

Package Box :AmountWeightSize (L*W*H)
50pcs / box9.03 Kgs (Typ.)530*355*255 mm
