AT070TN84 V.1 Innolux 7" TFT LCD | 800x480 30-pin Industrial Display

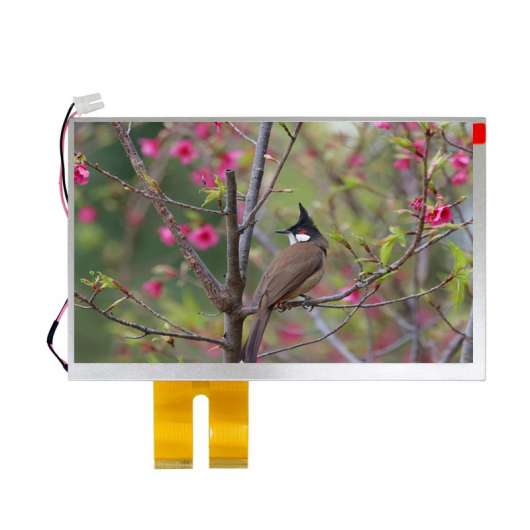

AT070TN84 V.1 7inch TFT LCD
AT070TN84 V.1 7inch TFT LCD
  • AT070TN84 V.1 7inch TFT LCD
  • AT070TN84 V.1 7inch TFT LCD

AT070TN84 V.1 Innolux 7" TFT LCD | 800x480 30-pin Industrial Display

Original Innolux AT070TN84 V 1 7inch TFT LCD 800x480, 30-pin LVDS interface Industrial-grade -30~85°C Backward compatible design RoHS certified MOQ 1pc Get free pinout diagram!

Model AT070TN84 V.1
Brand Innolux
Size 7.0inch
Resolution 800×480
Brightness 450cd/m²
Perspective 70/70/50/70
Interface RGB
Operating Temp -30 ~ 85 °C
Production State In Production
Click For Price

1.Chimei Innolux 7" TFT LCD AT070TN84 V.1 Application Details

Basic Detail :Panel Brand INNOLUX/CHI MEIModel NameAT070TN84 V.1
Panel Typea-Si TFT-LCD , LCMAnother NameAT070TN84 V1
Panel Size7.0”Designed ForAutomotive Display，Digital Photo Frame，Portable DVD Player
Maximum Ratings :OP Temperature-30 ~ 85 °C  ST Temperature-30 ~ 85 °C
RoHSRoHSVibration Level-
Features :Wide Temperature，WLED Backlight，U/D.L/R Reverse，Matte


2.Chimei Innolux 7" TFT LCD AT070TN84 V.1 Optical Details

Basic Information :Luminance450 cd/m²(Typ.)Contrast Ratio500 : 1 (Typ.) (Transmissive)
Good View at6 o'clockResponse Speed10/15 (Typ.)(Tr/Td) (ms)
Viewing Angle70/70/50/70 (Typ.)(CR≥10)Operating ModeTN, Normally White, Transmissive
Color Performance :ChromaticityX:0.310; Y:0.330Display Colors262K (6-bit)

Color Temperature		6638KWhite Variation1.33/1.43 (Typ./Max.)(9 points)


3.Chimei Innolux 7" TFT LCD AT070TN84 V.1 Mechanical Details

Pixel Features :Number of Pixel800(RGB)*480 [WVGA]ArrangementRGB Vertical Stripe
Dot Pitch (mm)0.0635*0.1905 mm (H*V)Pixel Pitch (mm)0.1905*0.1905 mm (H*V)  [133PPI]
Physical Size :Active Viewing(mm)152.4*91.44 mm (H*V)Bezel Area (mm)155.2*94.2 mm (H*V)
Outline Dim.(mm)165*104 mm (H*V)Depth(mm)5.5/6.3 (Typ./Max.) mm
Outline Features :Form StyleFlat RectangleOutline Shape
Aspect Ratio15:9 (H:V)OrientationLandscape type
Holes & Brackets :Without
Other Spec :WeightTBDSurfaceAntiglare


4.Chimei Innolux 7" TFT LCD AT070TN84 V.1 Electronics Details

Refresh Rate :60Hz
Reverse Scan :Yes (U/D, L/R)
Power Consumption :2.219W (Typ.)
Time Controller (T-CON) :Need external T-CON


5.Chimei Innolux 7" TFT LCD AT070TN84 V.1 Interface Details

Signal Electrical :Signal InterfaceParallel RGB (1 ch, 6-bit)Logic Voltage0≤VIL≤0.3VCC; 0.7VCC≤VIH≤VCC
Signal Electrical :Voltage Input3.3/10.4/16.0/-7.0V (Typ.)(VCC/AVDD/VGH/VGL)Current Input5.0/40.0/0.2/0.2mA (Typ.)(ICC/IAVDD/IGH/IGL)
Consumption437mW (Typ.)
Interface Features :Position-Physical TypeFPC
Interface Detail :BrandModelPin PitchPinsAmountPin Assignment

 		0.5mm30 pins2 pcs


6.Chimei Innolux 7" TFT LCD AT070TN84 V.1 Backlight Details

Lamp Features :Lamp TypeWLEDQuantity3S9PPositionEdge light type
Exchange
-		Lamp ShapeArrayLamp Life20K(Min.) (Hours)
Lamp Electrical :Voltage Supply9.9±0.6VCurrent Supply170/180/200mA (Min./Typ./Max.)
Consumption1.782W (Typ.)
Interface Features :Position-Physical TypeConnector
Backlight Driver :No
Interface Detail :BrandModelPin PitchPinsAmountConfiguration
JSTBHSR-02VS-13.5 mm
 		2 pins1 pcsBLE-2PINS-AC


7.Chimei Innolux 7" TFT LCD AT070TN84 V.1 Carton Details

Package Box :AmountWeightSize (L*W*H)
50pcs / box11.55kgs530*355*255 mm
