AT070TN83 V.1 INNOLUX 7" TFT LCD | 800x480 with Tcon Board - Industrial Display

Original Innolux AT070TN83 V 1 7 inch TFT LCD + Tcon Board 800x480, LVDS interface Plug-and-play solution saves driver cost Industrial-grade -20~70°C RoHS IP65 DDP global & MOQ 1pc Get wiring schematic!

Model AT070TN83 V.1
Brand INNOLUX
Size 7.0inch
Resolution 800*480
Brightness 400cd/m2
Perspective 80/80/80/80
Interface 70/70/50/70 (Typ.)
Operating Temp -20 ~ 70 °C
Production State In Production
Click For Price

1.Chimei Innolux 7 " TFT LCD AT070TN83 V.1 Application Details

Basic Detail :Panel BrandINNOLUX/CHI MEIModel Name AT070TN83 V.1
Panel Typea-Si TFT-LCD , LCMAnother NameAT070TN83 V1
Panel Size7.0”Designed ForDigital Photo Frame，Portable DVD Player，MP3 PMP
Maximum Ratings :OP Temperature-20 ~ 70  °CST Temperature-30 ~ 80  °C
RoHSRoHSVibration Level-
Features :WLED Backlight，U/D.L/R Reverse，With LED Driver，Matte


2.Chimei Innolux 7 " TFT LCD AT070TN83 V.1 Optical Details

Basic Information :Luminance300 cd/m²(Typ.)Contrast Ratio500 : 1 (Typ.) (Transmissive)
Good View at6 o'clockResponse Speed10/15 (Typ.)(Tr/Td) (ms)
Viewing Angle70/70/50/70 (Typ.)(CR≥10)Operating ModeTN, Normally White, Transmissive
Color Performance :ChromaticityX:0.310; Y:0.330Display Colors262K (6-bit)

Color Temperature		6638KWhite Variation1.33/1.43 (Typ./Max.)(9 points)


3.Chimei Innolux 7 " TFT LCD AT070TN83 V.1  Mechanical Details

Pixel Features :Number of Pixel800(RGB)*480 [WVGA]ArrangementRGB Vertical Stripe
Dot Pitch(W*H)0.0635*0.1905 mmPixel Pitch (W*H)0.1905*0.1905 mm  [133PPI]
Physical Size :Active Viewing(mm)152.4(W)*91.44(H) mmBezel Area (mm)155.3(W)*94.3(H) mm
Outline Dim.(mm)165(W)*104(H) mmDepth(mm)5.5±0.3 mm
Outline Features :Form StyleFlat RectangleOutline Shape
Aspect Ratio15:9 (H:V)OrientationLandscape type
Holes & Brackets :Without
Other Spec :Weight130g (Typ.)SurfaceAntiglare


4.Chimei Innolux 7 " TFT LCD AT070TN83 V.1  Electronics Details

Refresh Rate :60Hz
Reverse Scan :Yes (U/D, L/R)
Power Consumption :3.325W (Typ.)
Time Controller (T-CON) :Embedded T-CON


5.Chimei Innolux  AT070TN83 V.1  Interface Details

Signal Electrical :Signal InterfaceTTL (1 ch, 6-bit)Logic Voltage0≤VIL≤0.3VCC; 0.7VCC≤VIH≤VCC
Signal Electrical :Voltage Input3.3V (Typ.)(VCC)Current Input250/300mA (Typ./Max.)(ICC)
Consumption825mW (Typ.)
Interface Features :Position-Physical TypeConnector
Interface Detail :BrandModelPin PitchPinsAmountPin Assignment
HRSFH19SC-40S-0.5SH0.5mm40 pins1 pcsDRGB-40P1C6B-260B


6.Chimei Innolux 7 " TFT LCD AT070TN83 V.1 Backlight Details

Lamp Features :Lamp TypeWLEDQuantity-PositionEdge light type
Exchange
-		Lamp Shape-Lamp Life20K(Min.) (Hours)
Interface Features :Position-Physical TypeIncluded in panel signal interface
Backlight Driver :With LED Driver
Driver Electrical :Input Voltage5.0V (Typ.)Input Current500/550mA (Typ./Max.)
Consumption2.50W (Typ.)


7.Chimei Innolux 7 " TFT LCD AT070TN83 V.1  Carton Details

Package Box :AmountWeightSize (L*W*H)
50pcs / box9.528±5% Kgs530*355*255 mm

Post A Message

Your email address will not be published. Required fields are marked *

Name*
Your E-Mail*
Message*
AT070TN93 V.2 INNOLUX 7" TFT LCD | 800x480 30-pin Industrial Display - Global Stock AT070TN92 7" TFT LCD Panel 800×480 - Innolux TTL Display | Wholesale

Related Products

AT070TN84 V.1 7

AT070TN84 V.1 7" TFT LCD ...

AT070TN93 V.2 INNOLUX 7" TFT LCD...

AT070TN93 V.2 INNOLUX 7" T...

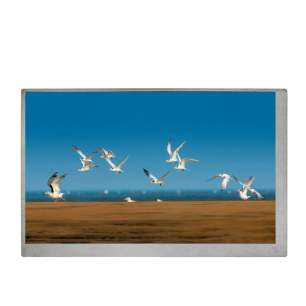

G070ACE-L01 7" IPS TFT LCD | In...

G070ACE-L01 7" IPS TFT LCD...

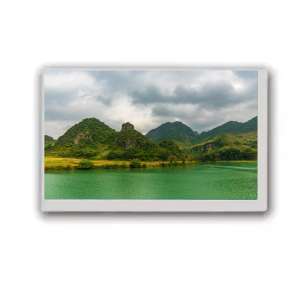

G070ACE-LH1 7" Ultra High Brightn...
