The TSUMV59V22 display controller board supports HDMI, VGA, YPbPR, and triple CVBS inputs with CVBS output Ideal for industrial displays, video walls, and digital signage Plug-and-play installation
| Model | TSUMV59V22 |
| Maximum resolution | 1920*1080 |
| Support size | ≤82" |
| Interface | HDMI, VGA, YPBPR, three-way CVBS signal input and CVBS output |
| Input power | ＜36w |
| LCD interface | LVDS |
| operation temperature | -10℃～+60℃ |
| storage temperature | -10℃～+60℃ |
| size | 124*85mm |
Hangzhou IDT DISPLAY TECHNOLOGY CO.,LTD is the main agent of Youda AUO LCD screen, CHIMEI LCD screen, Mitsubishi LCD screen, INNOLUX LCD screen, Tianma LCD screen, touch LCD screen and other small ...
Read More
1.BRIEF INTRODUCTION
TSUMV59V22 is a driver solution for TFT LCD display, supports dual LVDS interface and resolution up to 1920x1080, and supports online update.
The board supports HDMIx1, VGAx1, YPBPRx1, CVBSx3 input and CVBSx1 output. Video Decoders support NTSC M, NTSC-J, NTSC-4.43, PAL (B, D, G, H, M, N, I, Nc)
2.INTERFACE TYPES
a. Power interface J2, J12 (Connector type: PH, pitch 2.0mm)
Pin No
Definition
Description
1
VCC
+12V power
2
VCC
+12V power
3
GND
Ground
4
GND
Ground
b.Backlight interface J3 (Connector type: PH, pitch 2.0mm)
Pin No
Definition
Description
1
GND
Ground
2
GND
Ground
3
ADJ
brightness adjustment, the default value 0V
4
CTR
Backlight power control,
5
VCC
+12V voltage
6
VCC
+12V voltage

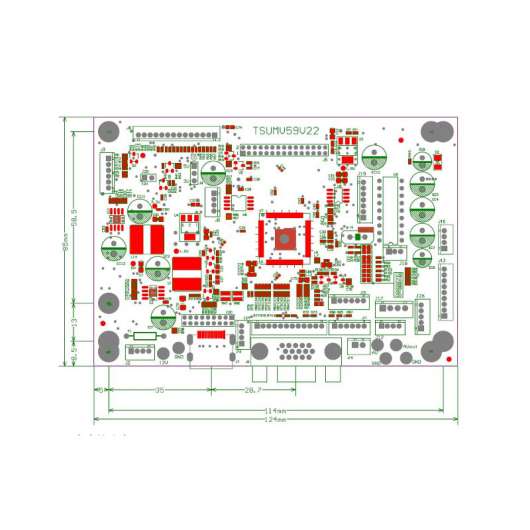

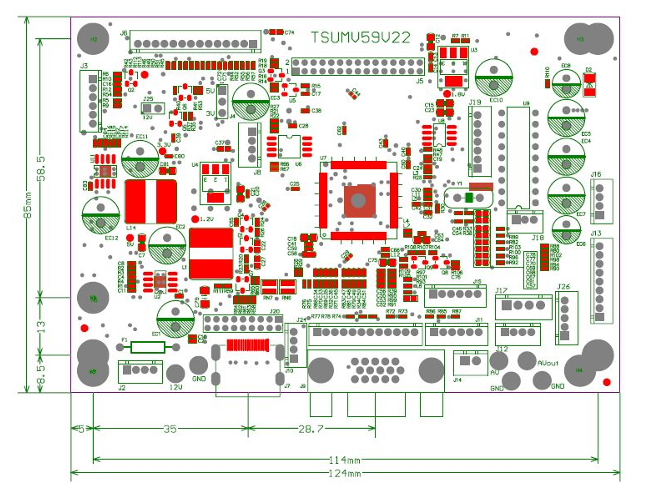

3.Size

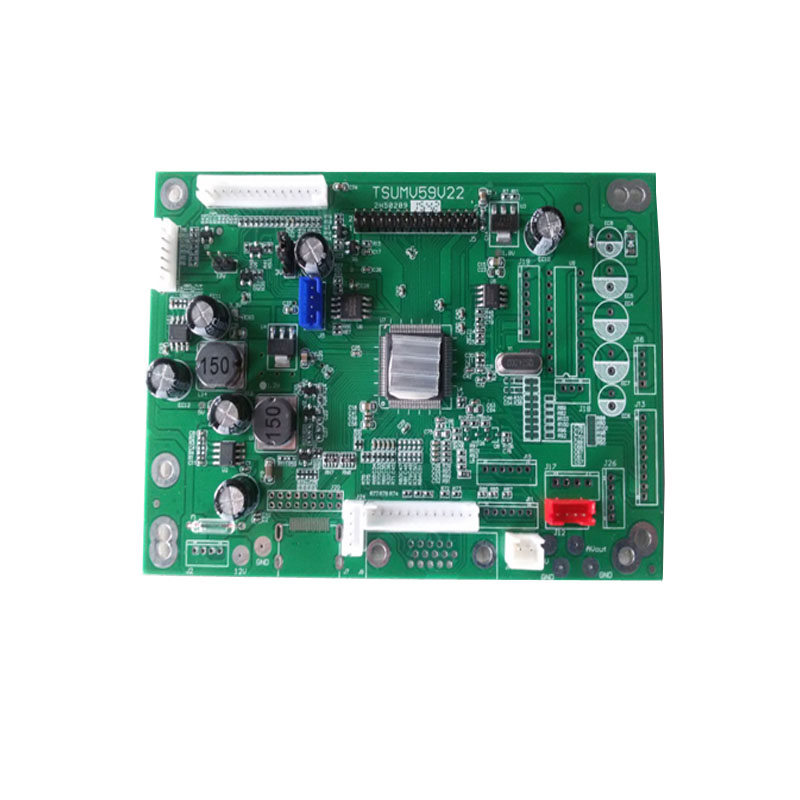

4.PICTURES
