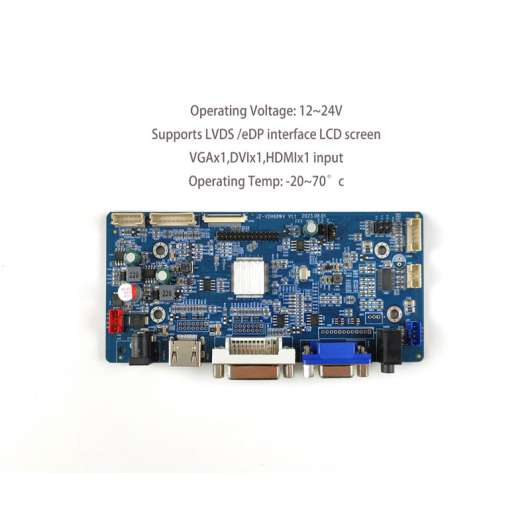

The JZ-VDH68WV is an industrial-grade driver board with serial port protocol control (UART RS232) It supports both LVDS and eDP output interfaces for precise management of digital signage, kiosks, and control panels
| Model | JZ-VDH68WV |
| Maximum resolution | 1920x1200 |
| Support size | ≤82" |
| Interface | VGA,DVI,HDMI |
| Input power | ＜36w |
| LCD interface | LVDS,eDP |
| operation temperature | -20 ~70℃ |
| storage temperature | -20 ~70℃ |
| size | 150.5* 66.0mm |
Hangzhou IDT DISPLAY TECHNOLOGY CO.,LTD is the main agent of Youda AUO LCD screen, CHIMEI LCD screen, Mitsubishi LCD screen, INNOLUX LCD screen, Tianma LCD screen, touch LCD screen and other small ...
Read More
OVERVIEW
The driver board JZ-VDH68WV is mainly used to support TFT LCD screens with max resolution 1920x1200. It has 1xVGA, 1xDVI, 1xHDMI input interfaces, supports LVDS and eDP output interfaces. This board adopts MTK signal processing chip which has powerful processing function and supports all kinds of standard and non-standard signals. The driver board JZ-VDH68WV uses high specification components, with good performance.
Key Features:
* Max resolution:1920x1200
* Operating temperature: -20 ~70℃
* Audio amplifier 2x10W
* Support serial port protocol control
* Automatic photosensitive control (optional)
* Remote control function (optional)
* The general resolutions support 85Hz
2.PARAMETERS
OUTPUT
Max Resolution
1920x1200
Output Interface
single/dual LVDS
INPUT
VGA
0.7Vp-p@75ohm
Separate / Composite / SOG sync support
DVI
Up To 1920x1200@60Hz
DVI 1.0
HDMI
Up To 1920x1200@60Hz
HDMI 1.4
Horizontal Frequency
30-120KHz
Vertical Frequency
50-75Hz
AUDIO OUTPUT
MAX
2 X 10W @ 8Ω
POWER SUPPLY
Operating Voltage
12-24V
LCD screen voltage
3.3V/5V/12V
Standby Power Consumption
< 0.2W(only board)
Note: Please test the maximum power consumption according to the actual use

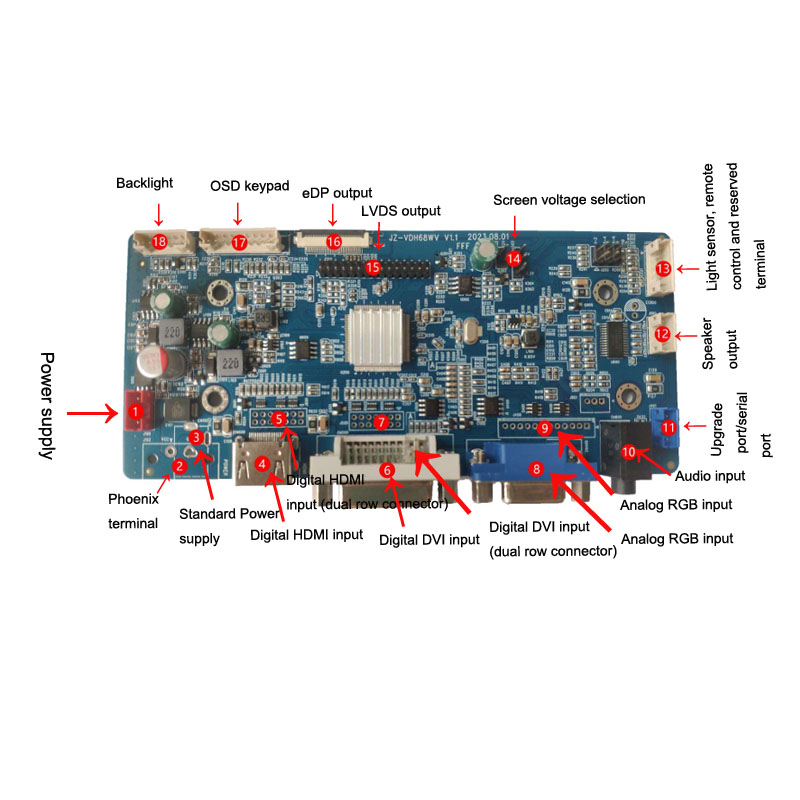

3.PICTURE & LAYOUT

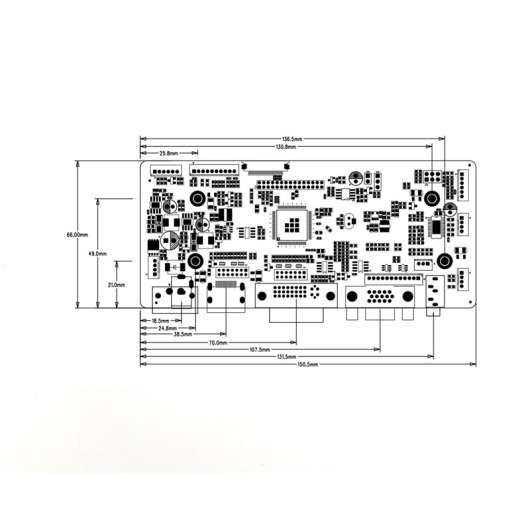

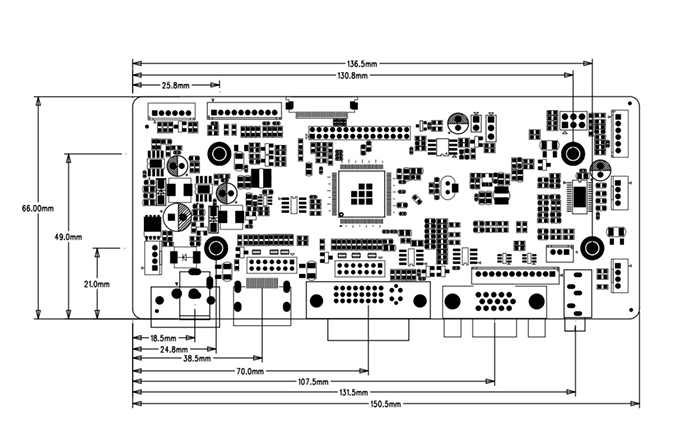

4.DIMENSION
Size：150.5mm (length) x 66.0mm (width)
PCB Thickness：1.60mm
Total height：15.0mm
Screw hole：3.5mm
