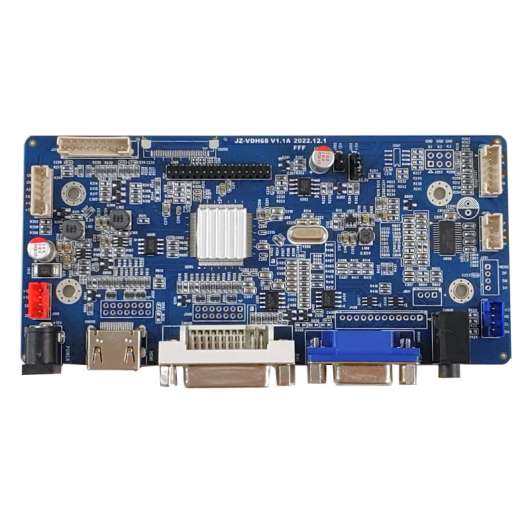

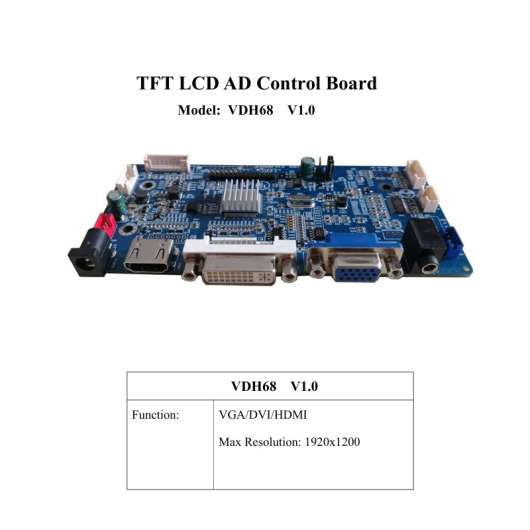

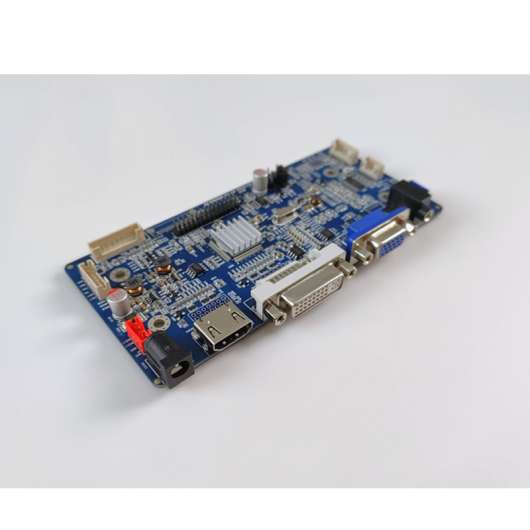

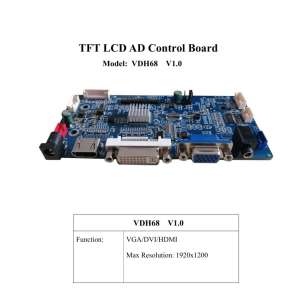

The VDH68 all-display control board integrates VGA, DVI, and HDMI inputs, converting signals to LVDS for TFT LCD screens Ideal for repairing monitors, building digital signage
| Model | VDH68 |
| Maximum resolution | 1920x1200 |
| Support size | ≤82" |
| Interface | VGA+DVI+HDMI |
| Input power | ＜36w |
| LCD interface | LVDS |
| operation temperature | -20-- 65℃ |
| storage temperature | -20-- 65℃ |
| size | 139.0 x 66.0 mm |
Hangzhou IDT DISPLAY TECHNOLOGY CO.,LTD is the main agent of Youda AUO LCD screen, CHIMEI LCD screen, Mitsubishi LCD screen, INNOLUX LCD screen, Tianma LCD screen, touch LCD screen and other small ...
Read More
Price: Contact for latest real-time quotation. Final pricing depends on quantity, specification, customization requirements and exchange rate. MOQ: 1 piece.
Send your required quantity, application, delivery destination and technical requirements. Our display specialists will reply with availability and a suitable solution.
Request a QuoteIDT industrial LCD controller board 23 is available for LCD controller board integration. Typical evaluation scenarios include display replacement, video conversion and industrial monitor projects. Before ordering, confirm the complete original model number and revision rather than relying only on display size.
Confirm outline dimensions, active area, mounting points, resolution, signal interface, connector and pin assignment, timing, supply voltage, brightness, viewing direction, operating temperature and backlight requirements. A similar model name does not guarantee electrical or mechanical interchangeability.
MOQ is 1 piece. Contact us for the latest real-time quotation, current availability and lead time. Pricing changes with order quantity, specification, customization requirements and exchange rate. Replacement-panel review, touchscreen, cover glass, optical bonding, cables and controller-board support are available for qualified projects.
Request Latest Price and Compatibility Review
Send the original model number, mechanical drawing, interface, connector pinout, resolution, brightness and operating-temperature requirements for an engineering review.
MOQ is 1 piece. Price is provided by real-time quotation according to quantity, availability, specification, customization and exchange rate.
Yes. We can evaluate alternative panels and support touch, cover glass, optical bonding, cables and controller-board integration for qualified projects.
1、INTRODUCTION
VD68 is a high-quality TFT LCD monitor controller board with VGA+DVI+HDMI inputs, As the board is designed to act as a full monitor interface and a eDP interface, besides the main functionality, also various appealing On-Screen-Display Menu layouts are possible on customer’s request.
Key features:
* LVDSoutput resolution up to 1920x1200
* Light sensor (optional)
* Working temperature:-20-- 65℃
* Function of remote control
* Support IR function
* Support LVDS and eDPinterfaces
* The audio amplifier supports 2x10W at most
* Support serial port protocol control
2.GENERALSPECIFICATION
Output signal:
Max resolution：
Max. 1920x1200
Output：
Single/Dual/ LVDS
INPUT
Analog RGB：
Horizontal Freq : 30—120KHz
Vertical Freq : 50—75Hz
0.7Vp-p@75ohm
Separate / Composite / SOG sync support
DVI/HDM:
Horizontal Freq : 30—120KHz
Vertical Freq : 50—75Hz
OSD Keypad:
Power, Menu, Exit, Plus, Minus
Menu type:
Bitmap Menu
Language:
English/Chinese/ (optional multi-language)
OSD MENU:
Mode/Brightness/Contrast/Saturation/Sharpness/Hue
FUNCTION
Language/Reset/Color Temp.
PC
Clock/Phase/H position/V position/Auto configure
POWER
Stand-by
<0.5W 12Vstb/200mA
Input
12V/dc Note1)
Note 1) Max power is depending on the subject display to be used.
EDIDdataiscontrollable to change the necessary information. Preferred resolution.
Optional support DDC/CI.
3. CONTROLLERPICTURE

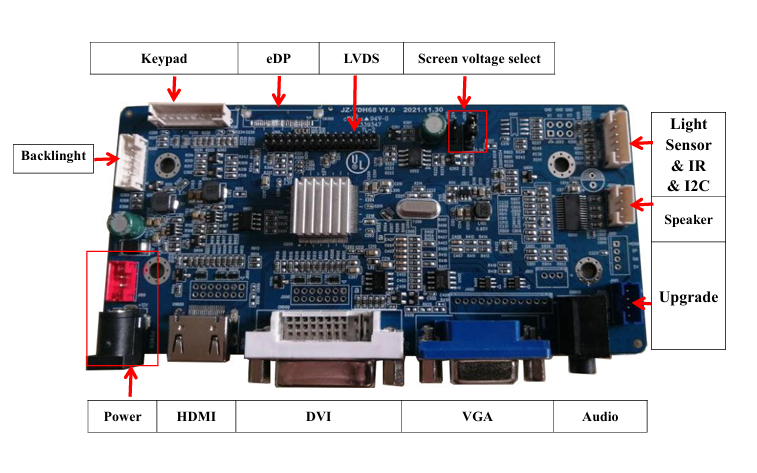

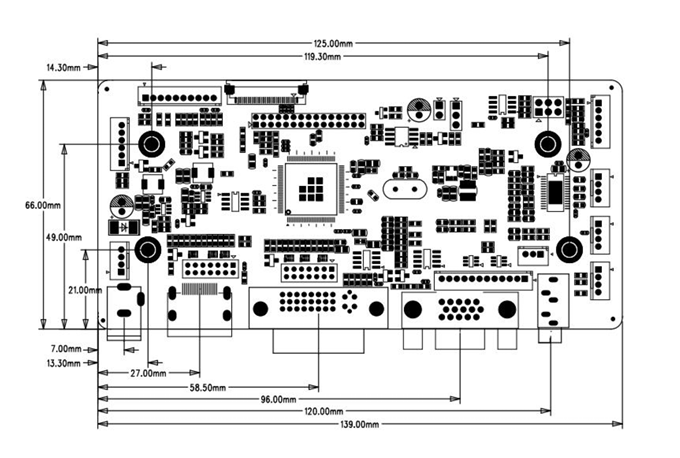

4. CONTROLLERDIMENSIONS
PCB height: 1.6 mm
Total height: 15.0 mm
Length and width: 139.0 x 66.0 mm
