G190ETN01.4+190063A-GDA-A1 (capacitive touch) frame sticker
G190ETN01 4+190063A-GDA-A1 (capacitive touch) frame sticker,19 industrial grade capacitive touch integrated solution | fully bonded dust-proof and earthquake resistant | glove+wet hand operation
G190ETN01.4+190063A-GDA-A1 (capacitive touch) frame sticker.
19 '' industrial grade capacitive touch integrated solution | fully bonded dust-proof and earthquake resistant | glove+wet hand operation
Technical Parameter
Display module | Touch module |
Model: AUO G190ETN01.4 | Model: 190063A-GDA-A1 |
Resolution: 1280x1024 SXGA | Touch type: Projection capacitor (10 point touch) |
Brightness: 450cd/m² | Surface hardness: 6H tempered glass |
Contrast ratio: 1000:1 | Response time:< 8ms |
Operation temperature: -30℃~80℃ | Dielectric penetration: 5mm glove operation |
Protection level: IP65 front frame | Wet Hand Touch: Supports (Water Drop ≤ 3mm) |
A scenario based intelligent interaction solution designed for harsh industrial environments.
Anti interference enhancement:
▶ Electromagnetic shielding layer design, according to EN 61000-4-3 Level 4 standard
▶ Optional anti oil coating (compliant with ISO 13732-1 anti slip standard) Installation adaptability:
▶ Metal reinforced frame (2mm aluminum magnesium alloy)
▶ VESA 100mm standard hole position+custom mounting hole service optical enhancement:
▶ Full lamination OGS process (air layer<0.3mm)
▶ Optional anti glare treatment (60% haze, visible in strong light)
Suitable for industry solutions # Medical equipment human-machine interface # Intelligent warehousing terminal # Heavy machinery control panel # Outdoor self-service terminal # Automated production line monitoring
Certification system
◼ Certification Mark: CE, RoHS
◼ Warranty Commitment:
▶ LCD screen: 5-year or 50000 hour lifespan
▶ Touch layer: 10 million clicks durability test ◼
Service guarantee:
▶ 48 hour rapid sampling (supports a minimum order quantity of 1pcs)

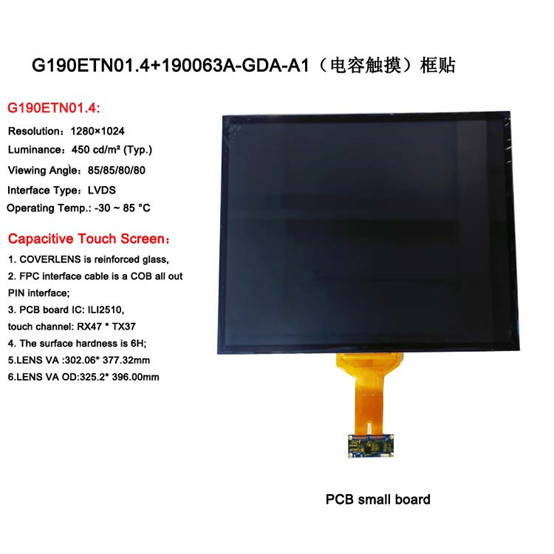

Physical picture：
