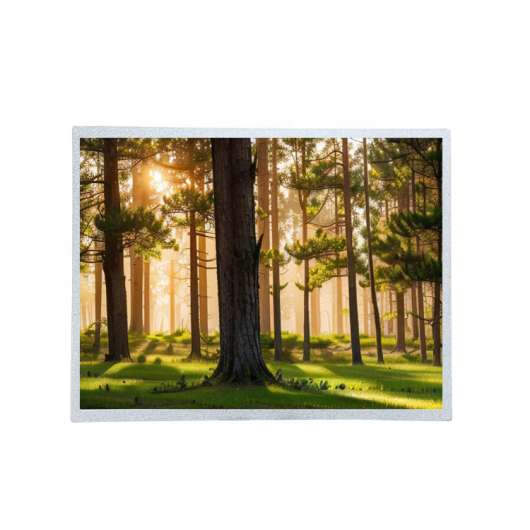

Explore the Tianma P1500XGF1MB02, a 15-inch XGA (1024x768) industrial LCD module designed for reliability Part of Tianma s P-Series, this Basic-grade display offers an LVDS interface, 600 nits brightness, and wide operating temperature (-20~+70°C) Ideal for Industrial HMI, POS systems, and medical devices Request your quote and datasheet today!
| Model | P1500XGF1MB02 |
| Brand | TIANMA |
| Size | 15inch |
| Resolution | 1024*768 |
| Brightness | 600cd/m2 |
| Perspective | 88/88/88/88 |
| Interface | LVDS |
| Operating Temp | -20 ~ 70 °C |
| Production State | In Production |
Hangzhou IDT DISPLAY TECHNOLOGY CO.,LTD is the main agent of Youda AUO LCD screen, CHIMEI LCD screen, Mitsubishi LCD screen, INNOLUX LCD screen, Tianma LCD screen, touch LCD screen and other small ...
Read More
Send your required quantity, application, delivery destination and technical requirements. Our display specialists will reply with availability and a suitable solution.
Request a QuoteTianma P1500XGF1MB02 15-inch XGA LCD Module | LVDS Interface, 600 nits, Industrial TFT Display is supplied for industrial HMI, automation, medical, transportation and embedded display projects. Samples, volume procurement and replacement evaluation are supported.
Stock: Sufficient MOQ: 1 piece. Price changes with quantity and exchange rate; request the latest real-time quotation and lead time.
Confirm the complete model suffix, interface, resolution, connector, outline, brightness and operating temperature. Touch panel, optical bonding, controller board, cable and cover-glass customization can be evaluated.
Request Latest Price and Datasheet
Sufficient stock is available and MOQ is 1 piece. Final price and lead time are reconfirmed for the required quantity.
Send both model numbers and project requirements for engineering comparison.
1. TIANMA P1500XGF1MB02 Application Details
Basic Info :
Panel Brand
TIANMA
Panel Model
P1500XGF1MB02
Diagonal Size
15.0"
Application
Industrial
Panel Type
a-Si TFT-LCD , LCM
Model Alias
-
Reliability :
Operating Temp.
-20 ~~70 °C
Storage Temp.
-30 ~~ 80 °C
RoHS State
RoHS
Vibration Rating
Specific Features :
Hight Brightness，WLED Backlight,Life≥50K hours
2. TIANMA P1500XGF1MB02 Mechanical Details
Pixel Features :
Pixel Format
1024(RGB)×768 [XGA]
Dot Pitch
0.099×0.297 mm (H×V)
Configuration
RGB Vertical Stripe
Pixel Pitch
0.297×0.297 mm (H×V) [85PPI]
Mechanical Size :
Active Viewing
304.128(W)×228.096(H) mm
Overall Dim.
306.13×230.1 mm (H×V)
Bezel Opening
326.5×253.5 mm (H×V)
Outline Depth(mm)
9.5/12.3 (Typ./Max.) mm
Outline Features :
Form Factor
Flat Rectangle
Orientation
Landscape type
Aspect Ratio
4:3(H:V)
Shape Style
3. TIANMA P1500XGF1MB02 Optical Details
Basic Information :
Brightness
600 cd/m² (Typ.)
Contrast Ratio
1000:1 (Typ.) (Transmissive)
Viewing Angle
88/88/88/88 (Typ.)(CR≥10)
Optical Mode
SFT, Normally Black, Transmissive
Viewing Direction
Symmetry
Response Time
25 (Typ.)(Tr+Td) ms
Color Performance :
Chromaticity
-
Color Numbers
16.7M (8-bit)
4. TIANMA P1500XGF1MB02 Electronics Details
Frame Frequency :
60Hz
5. TIANMA P1500XGF1MB02 Backlight Details
Back-light Features:
Lamp Shape
WLED
Amount
-
Life Time
50K(Typ.) (Hours)
Replacement
-
Lamp Shape
-
Position
Edge light type
6. TIANMA P1500XGF1MB02 Interface Details
Signal Systerm :
Voltage Input
-
Current Input
-
Consumption
-
Signal Interface
LVDS (1 ch, 8-bit)
