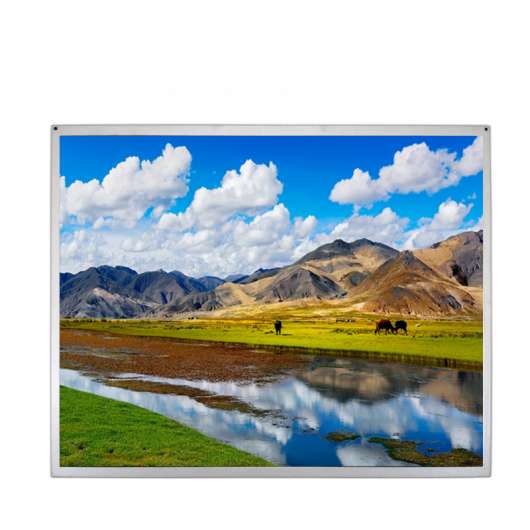

Industrial AUO 19 inch TFT LCD Panel G190ETN01.4 with 1280*1024 , 450 nit and LV

AUO G190ETN01 4 Application DetailsBasic Detail :ManufacturerAUOModel NameG190ETN01 4Panel Typea-Si TFT-LCD , LCMModel

Model	G190ETN01.4
Brand	AUO
Size	19inch
Resolution	1280*1024
Brightness	450cd/m²
Perspective	85/85/80/80 (Typ.)
Interface	LVDS
Operating Temp	-30 ~ 85 °C
Production State	In Production

Click For Price

AUO G190ETN01.4 Application Details

Basic Detail :	Manufacturer	AUO	Model Name	G190ETN01.4
	Panel Type	a-Si TFT-LCD , LCM	Model Alias
	Panel Size	19inch	Designed For	Industrial
Maximum Ratings :	OP Temperature	-30 ~ 85 °C	ST Temperature	-30 ~ 85 °C
Maximum Ratings :	RoHS	RoHS	Vibration Level	1.5G (14.7 m/s²)
Features :	Wide Color Gamut,DCI-P3,Srgb,Wide Temperature，Life>=50K hours,With LED Driver,WLED Backlight，Matte,Upside I/F

AUO G190ETN01.4 Optical Details

Basic Information :	Luminance	450 cd/m² (Typ.)	Contrast Ratio	1000:1 (Typ.) (Transmissive)
	Good View at	-	Response Speed	7/3 (Typ.)(Tr/Td) (ms)
	Viewing Angle	85/85/80/80 (Typ.)(CR≥10)	Operating Mode	TN, Normally White, Transmissive
Color Performance :	Chromaticity	Wx:0.313; Wy:0.329	Support Color	16.7M (6-bit + Hi-FRC)
Color Performance :	Color Temperature	6485K	White Variation	1.25/1.33 (Typ./Max.)(9 points)
1931 Color Gamlt :	NTSC Ratio	90%	sRGB	99% coverage
	Adobe RGB	80% coverage	DCI-P3	90% coverage
	Rec.2020	66% coverage	Remarks	sRGB (Rec.709, BT.709), Rec.2020 (BT.2020)

AUO G190ETN01.4 Mechanical Details

Pixel Features :	Number of Pixel	1280(RGB)*1024 [SXGA]	Arrangement	RGB Vertical Stripe
Pixel Features :	Dot Pitch(W×H)	0.098*0.294 mm	Pixel Pitch(W×H)	0.294*0.294 mm [86PPI]
Physical Size :	Active Viewing(mm)	376.32(W)*301.056(H) mm	Outline Dim.(mm)	396324 mm (HV)
Physical Size :	Bezel Area	379.72(W)*304.46(H) mm	Outline Depth	13.38 (Max.) mm
Outline Features :	Form Style	Flat Rectangle	Outline Shape
Outline Features :	Aspect Ratio	5:4(H:V)	Orientation	Landscape type
Holes & Brackets :	Side mounting holes (4-M3) on left, right bezel
Other Features :	Weight	1.80Kgs (Typ.)	Surface	Antiglare, Hard coating (3H)

AUO G190ETN01.4 Electronics Details

Refresh Rate :	60Hz
Reverse Scan :	No
Power Consumption :	20W (Typ.)

AUO G190ETN01.4 Interface Detail

Signal Electrical :	Voltage Supply		5.0V (Typ.)			Current Supply	1.0/1.2A (Typ./Max.)
	Consumption		5.0/6.0W (Typ./Max.)			Signal Interface	LVDS (2 ch, 8-bit)
Interface Features :	Type		Connector			Position	Rear
Connector Detail :	Brand	Model		Pin Pitch	Pins			Amount	Configuration
	HRS	DF14H-30P-1.25H(56)		1.25mm	30 pins			1 pcs	LVDS-30P2C8B-200A

AUO G190ETN01.4 Backlight Details

Lamp Features :

Lamp Type

WLED

Quantity

Position

Edge light type (Bottom side)

Exchange

Lamp Shape

4 strings

Lamp Life

50K(Min.) Hours

Lamp Electrical :

Voltage Input

38.4±4.8V

Current Input

100mA (Typ.)

Interface Features :

Position

Rear

Physical Type

Connector

Backlight Driver :

With LED Driver

Interface Detail :

Brand

Model

Pin Pitch

Pins

Amount

Configuration

SM08B-GHH(HF)

8 pins

1 pcs

Driver Electrical :

Input Current

1.25/1.73A (Typ./Max.)

Input Voltage

10.8/12.0/13.4V (Min./Typ./Max.)

Consumption

15/18.7W (Typ./Max.)

AUO G190ETN01.4 Packing Details

Package Box :	Quantity	Weight	Box Size
Package Box :	9 pcs / box	19.0 Kgs (Max.)	489293420 mm (LWH)
