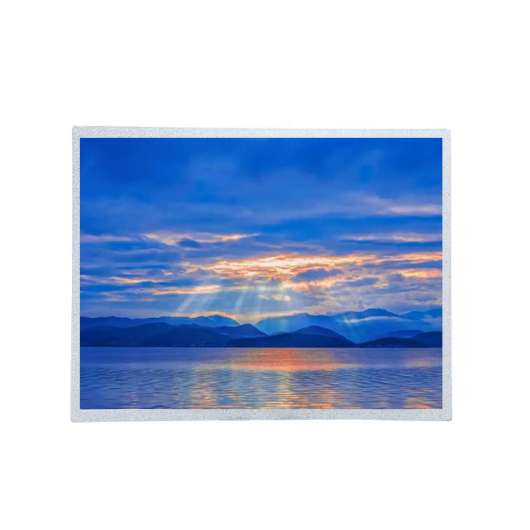

Discover the Tianma P1500XGF1MB01, a reliable 15-inch industrial LCD module This TFT display features XGA (1024x768) resolution, LVDS interface, and a wide operating temperature range As part of Tianma s P-Series, it s designed for long-term supply and high performance in industrial HMI, point-of-sale (POS) systems, and medical devices Request a quote and datasheet today!
| Model | P1500XGF1MB01 |
| Brand | TIANMA |
| Size | 15inch |
| Resolution | 1024*768 |
| Brightness | 400cd/m2 |
| Perspective | 88/88/88/88 |
| Interface | LVDS |
| Operating Temp | -20 ~ 70 °C |
| Production State | In Production |
Hangzhou IDT DISPLAY TECHNOLOGY CO.,LTD is the main agent of Youda AUO LCD screen, CHIMEI LCD screen, Mitsubishi LCD screen, INNOLUX LCD screen, Tianma LCD screen, touch LCD screen and other small ...
Read More
Send your required quantity, application, delivery destination and technical requirements. Our display specialists will reply with availability and a suitable solution.
Request a QuoteTianma 15-inch P1500XGF1MB01 LCD Module | XGA 1024x768 | LVDS Interface | Industrial TFT Display is a industrial LCD display for industrial HMI, automation, medical equipment, transportation and embedded systems. IDT Display supports samples, replacement evaluation and volume procurement.
Stock: Sufficient MOQ: 1 piece. Price changes with quantity and exchange rate; request the latest real-time quotation and lead time.
Confirm the complete suffix, interface, resolution, connector, outline, brightness and operating temperature. Touch panel, optical bonding, controller board, cable and cover-glass customization can be evaluated where applicable.
Request Latest Price and Datasheet
Sufficient stock is available and MOQ is 1 piece. Final price and lead time are reconfirmed for the required quantity.
Yes. Send the original model and application requirements for engineering review.
1. TIANMA P1500XGF1MB01 Application Details
Basic Info :
Panel Brand
TIANMA
Panel Model
P1500XGF1MB01
Diagonal Size
15.0"
Application
Industrial
Panel Type
a-Si TFT-LCD , LCM
Model Alias
-
Reliability :
Operating Temp.
-20 ~~70 °C
Storage Temp.
-30 ~~ 80 °C
RoHS State
RoHS
Vibration Rating
1.2G (11.76 m/s²)
Specific Features :
WLED Backlight,Life≥50K hours，With LED Driver,Upside I/F,6/8bit，Matte
2. TIANMA P1500XGF1MB01 Mechanical Details
Pixel Features :
Pixel Format
1024(RGB)×768 [XGA]
Dot Pitch
0.099×0.297 mm (H×V)
Configuration
RGB Vertical Stripe
Pixel Pitch
0.297×0.297 mm (H×V) [85PPI]
Mechanical Size :
Active Viewing
304.128(W)×228.096(H) mm
Overall Dim.
306.13×230.1 mm (H×V)
Bezel Opening
326.5×253.5 mm (H×V)
Outline Depth(mm)
9.5/12.3 (Typ./Max.) mm
Outline Features :
Form Factor
Flat Rectangle
Orientation
Landscape type
Aspect Ratio
4:3(H:V)
Shape Style
Holes & Brackets :
Side mounting holes (4-M3) on left, right bezel
Other Features :
Weight
TBD
Surface
Antiglare
3. TIANMA P1500XGF1MB01 Optical Details
Basic Information :
Brightness
400 cd/m² (Typ.)
Contrast Ratio
1500:1 (Typ.) (Transmissive)
Viewing Angle
88/88/88/88 (Typ.)(CR≥10)
Optical Mode
SFT, Normally Black, Transmissive
Viewing Direction
Symmetry
Response Time
25 (Typ.)(Tr+Td) ms
Color Performance :
Chromaticity
Wx:0.313; Wy:0.329
Color Numbers
262K/16.2M (6-bit / 6-bit + FRC)
Color Temperature
6485K
Uniformity
1.25/1.33 (Typ./Max.)(9 points)
1931 Color Gamut :
NTSC Ratio
64%
sRGB
90% coverage
Adobe RGB
67% coverage
DCI-P3
67% coverage
Rec.2020
48% coverage
Remarks
sRGB (Rec.709, BT.709), Rec.2020 (BT.2020)
4. TIANMA P1500XGF1MB01 Electronics Details
Frame Frequency :
60Hz
Reverse Scan :
No
5. TIANMA P1500XGF1MB01 Backlight Details
Back-light Features:
Lamp Shape
WLED
Amount
10S4P
Life Time
50K(Typ.) (Hours)
Replacement
-
Lamp Shape
4 strings
Position
Edge light type
Interface Features :
Type
Connector
Position
-
Lamp Driver
With LED Driver
Interface Detail :
Brand
Model
Pin Pitch
Pins
Amount
Configuration
STM
MSB24038P5
1.25 mm
5pins
1 pcs
Driver Electrical :
Voltage Input
12.0±1.2V
Current Input
TBD
6. TIANMA P1500XGF1MB01 Interface Details
Signal Systerm :
Voltage Input
3.3V (Typ.)
Current Input
TBD
Consumption
TBD
Signal Interface
LVDS (1 ch, 6/8-bit)
Interface Features :
Type
Connector
Position
Upper middle of panel
Connector Detail :
Brand
Model
Pin Pitch
Pins
Amount
Configuration
P-TWO
185083-20121
1.25 mm
20 pins
1 pcs
LVDS-20P1C8B-010D
