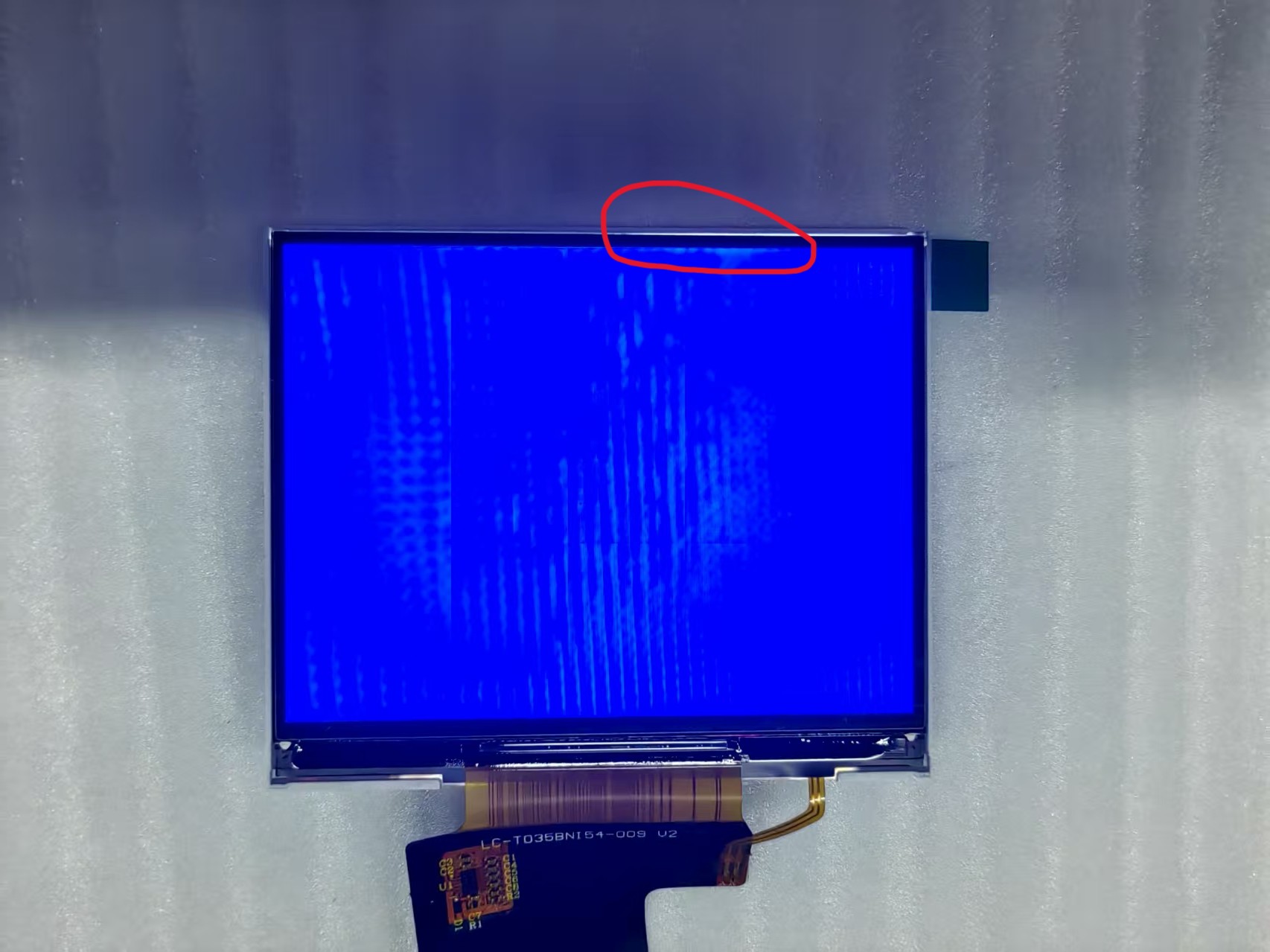

Reasons and solutions for light leakage in LCD screens
LCD screen light leakage refers to the phenomenon of obvious bright spots or halos appearing at the edges or co
Technology Support · Updated July 29, 2026
Industrial LCD Display Selection Guide
Choose an industrial LCD display by temperature, brightness, interface, mechanics and lifecycle. A practical sourcing guide for harsh environments.
Industrial LCD Requirements
Start with the actual equipment environment rather than display size alone. Record the operating and storage temperature, vibration, humidity, sunlight exposure, expected service life and regulatory requirements. A commercial panel may fit mechanically but fail early in a factory, vehicle or outdoor enclosure.
Temperature and Environmental Conditions
Wide-temperature capability must be verified from the exact model datasheet. Also evaluate polarizer behavior, backlight start-up and response time at low temperature. For outdoor or sealed equipment, consider thermal design and the temperature generated inside the enclosure.
Brightness and Optical Performance
Brightness should be selected for the viewing environment. Indoor HMIs may need moderate luminance, while sunlight-readable equipment needs higher brightness, optical treatments and careful contrast management. Anti-glare cover glass and optical bonding can improve readability without relying only on backlight power.
Interface and Mechanical Compatibility
Verify resolution, LVDS or eDP interface, voltage, connector type and position, pin assignment, timing, mounting holes, outline dimensions and active area. The complete suffix matters. A panel with a similar model name can use a different interface or mechanical revision.
Lifecycle, Supply and Replacement Planning
Before design approval, confirm lifecycle status, expected annual quantity and alternative models. Keep a qualification record for at least one replacement. Send the exact model and application details to IDT Display for specification comparison and quotation support.
Need Model or Replacement Support?
Send the exact LCD model, application, quantity and required delivery date. We will review compatibility, supply and customization requirements.
