What are the standards for AUO's industrial-grade LCD screens?
A truly reliable industrial grade TFT-LCD must maintain excellent performance under complex conditions such as temperature, humidity, lighting, vibration, and prolonged operation
A new benchmark for industrial-grade displays: How to tackle the challenges posed by harsh environments
In application scenarios such as industrial automation, outdoor terminals, medical equipment, and in-vehicle systems, the stability and durability of display screens are often more important than simply high parameters. A truly reliable industrial-grade TFT-LCD must maintain excellent performance under complex conditions such as temperature, humidity, lighting, vibration, and long-term operation.

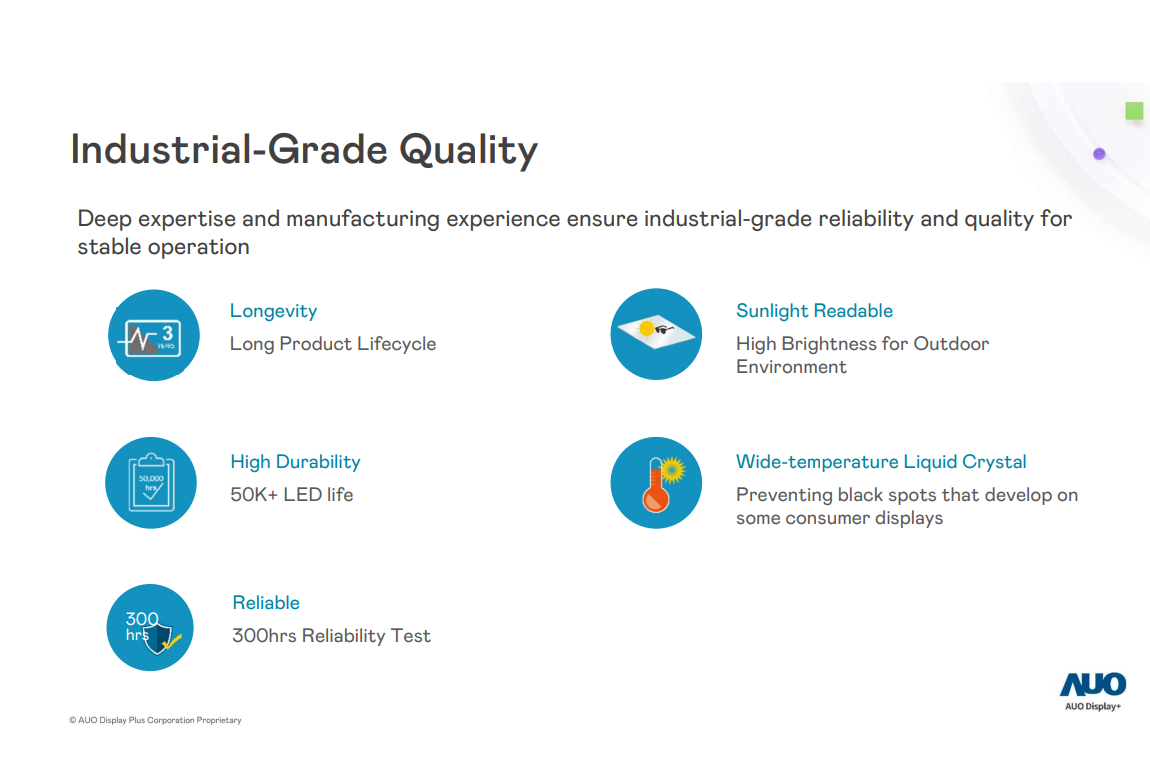

Based on this concept, AUO's industrial-grade LCD screens have fully implemented six core industrial standards from design to testing:
1.Industrial grade quality - born for stable operation
Relying on profound technical accumulation and manufacturing experience, AU Industrial LCD screens strictly follow industrial grade specifications in component selection, circuit design, and production processes. Whether it is a high-temperature production line or a cold outdoor environment, it can provide long-term and stable display output, significantly reducing the system failure rate.
2.Long product lifecycle - reducing the hassle of frequent model changes
Industrial equipment often requires continuous supply for 3 to 5 years or more, which cannot be met by the rapid iteration of consumer grade panels. AUO Industrial LCD screens provide long-term product lifecycle support to help customers avoid the risks of complete machine re certification and design changes caused by panel discontinuation.
3.Readable under the Sun - High Brightness Design Meets Outdoor Challenges
For outdoor work, car navigation, intelligent bus stop signs and other strong light environments, the AU Industrial LCD screen supports high brightness display (typical value of 500 cd/m ², optional higher configuration), combined with anti glare surface treatment (hardness of 3H), the content is still clear and visible in direct sunlight, without the need for additional shading or increased power consumption.
4.High durability - LED backlight has a lifespan of over 50000 hours
Industrial equipment often operates continuously 24/7. The AUO Industrial LCD screen adopts long-life LED backlight, with a typical lifespan of over 50000 hours (brightness attenuation to 50%), significantly reducing maintenance frequency and replacement costs, especially suitable for unmanned or remote deployment scenarios.
5.Wide temperature LCD - eliminate low-temperature black spot phenomenon
Ordinary consumer grade LCDs often exhibit "black spots," "ghosting," and even freezing due to slow response in sub zero temperature environments. The AUO Industrial LCD screen adopts a wide temperature LCD material, supporting a working temperature range of -30 ℃ to+80 ℃. It can display stably from cold warehouses to high-temperature workshops, eliminating low-temperature anomalies.
6. High reliability verification -300 hours of rigorous testing
Every AUO industrial LCD screen must undergo over 300 hours of reliability verification before shipment, including:
High temperature and humidity (40 ℃/90% RH)
High temperature operation (80 ℃)
Low temperature operation (-30 ℃)
Thermal shock (-30 ℃) ↔ 60℃）
Vibration and mechanical shock
ESD (electrostatic protection, contact ± 8kV/air ± 15kV)
Ensure that the product maintains professional level display performance during transportation, installation, and long-term operation.
Summary: Born for industry, created for stability
The AU Industrial LCD screen is not just a TFT-LCD screen, but also a complete display solution for harsh environments. It is readable under sunlight, reliable in severe cold, stable in high temperatures, and durable during long-term operation.
Whether you are designing an industrial HMI, portable detection device, or outdoor intelligent terminal, the AU Industrial LCD screen will be your trusted choice.
