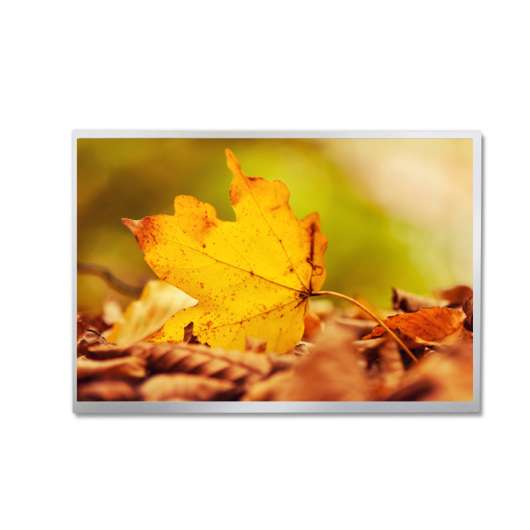

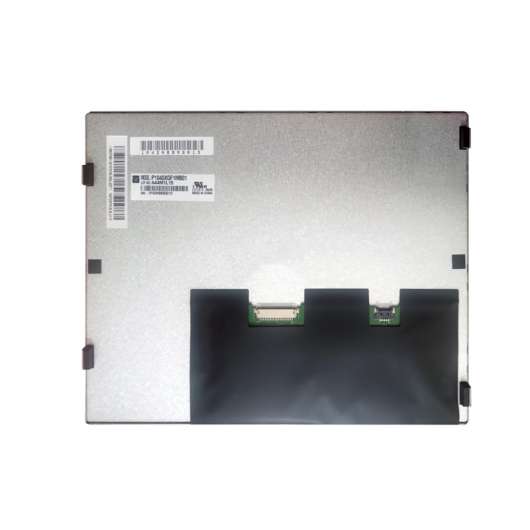

1.TIANMAP1040XGF1MB01Application DetailsBasic Information :BrandTIANMAModelP1040XGF1MB01Typea-Si TFT-LCD , LCMUsed ForIndus...
| Model | P1040XGF1MB01 |
| Brand | TIANMA |
| Size | 10.4inch |
| Resolution | 1024*768 |
| Brightness | 500cd/m2 |
| Perspective | 85/85/85/85 |
| Interface | LVDS |
| Operating Temp | -20 ~ 70 °C |
| Production State | In Production |
Hangzhou IDT DISPLAY TECHNOLOGY CO.,LTD is the main agent of Youda AUO LCD screen, CHIMEI LCD screen, Mitsubishi LCD screen, INNOLUX LCD screen, Tianma LCD screen, touch LCD screen and other small ...
Read More
1.TIANMA P1040XGF1MB01 Application Details
Basic Information :
Brand
TIANMA
Model
P1040XGF1MB01
Type
a-Si TFT-LCD , LCM
Used For
Industrial
Screen Size
10.4 inch
Alias
-
Environment :
Storage Temp.
-30 ~ 80 °C
Operating Temp.
-20 ~ 70 °C
RoHS
RoHS
Vibration Level
Typical Features :
WLED Backlight，Life≥50K hours，With LED Driver，180°Reverse,6/8bit，Matte
2.TIANMA P1040XGF1MB01 Mechanical Details
Pixel Features :
Resolution
1024(RGB)×768 [XGA]
Dot Pitch(mm)
0.0685×0.2055
Pixel Format
RGB Vertical Stripe
Pixel Pitch (mm)
0.2055×0.2055 [123PPI]
Mechanical Size :
Active Viewing
210.432(W)×157.824(H) mm
Bezel Opening
213.43(W)×160.82(H) mm
Overall Dim.
230(W)×175.8(H) mm
Depth(mm)
5.7/9.06 (Typ./Max.) mm
Outline Features :
Form Style
Flat Rectangle
Shape Style
Aspect Ratio
4:3 (H:V)
Orientation
Landscape type
Fixation :
Side mounting holes (4-M3) on left, right bezel
Other Spec :
Weight
430g (Typ.)
Treatment
Antiglare
3.TIANMA P1040XGF1MB01 Optical Details
Basic Information :
Luminance(cd/m²)
500 (Typ.)
Contrast Ratio
1200:1 (Typ.) (Transmissive)
Viewing Angle
85/85/85/85 (Typ.)(CR≥10)
Display Mode
SFT, Normally Black, Transmissive
Best View on
Symmetry
Response(ms)
35 (Typ.)(Tr+Td)
Dispaly Color :
Color Temperature
Color Amount
White color Chromaticity
6485K
6727K
Wx:0.308; Wy:0.332
1931 Color Gamut :
NTSC Ratio
sRGB Coverage
Adobe RGB Coverage
56%
78%
59%
DCI-P3 Coverage
Rec.2020 Coverage
Remarks
58%
42%
sRGB (Rec.709, BT.709), Rec.2020 (BT.2020)
Luminance Variation :
1.18/1.33 (Typ./Max.)(9 points)
4. TIANMA P1040XGF1MB01 Electronics Details
Frame Rate :
60Hz
Reverse Scan :
Yes (180°)
5.TIANMA P1040XGF1MB01 Interface Details
Signal Electrical :
Voltage Supply
3.3V (Typ.)
Current Supply
430/650mA (Typ./Max.)
Consumption
1.42/2.15W (Typ./Max.)
Signal Type :
LVDS (1 ch, 8-bit)
Interface Features :
Position
-
Type
Connector
Interface Detail :
Brand
Model
Pitch
Pins
Quantity
Pin Configuration
HRS
DF19K-20P-1H
1.0mm
20 pins
1 pcs
6.TIANMA P1040XGF1MB01 Backlight Details
Backlight Features :
Type
WLED
Amount
8S4P
Position
Edge light type
Replacement
-
Shape
Array
Life Time
50K(Typ.) Hours
Interface Features :
Position
Backlight Driver
Type
-
With LED Driver
Connector
Interface Detail :
Brand
Model
Pin Pitch
Pins
Amount
Pin Assignment
STM
MSB24038P5
1.25 mm
5pins
1 pcs
Backlight Driver :
With LED Driver
Driver Electrical :
Input Voltage
12.0V (Typ.)
Input Current
330/495mA (Typ./Max.)
Consumption
3.97/5.94W (Typ./Max.)
7. TIANMA P1040XGF1MB01 Packing Features
Package Type
Pcs/Package
Box/Package
Package LWH (mm)
G.W (kgs)
Volume (m³)
Carton
6
1
520×345×74
N/A
0.0133
Outer box
18
3
544×365×250
12.64
0.0496
