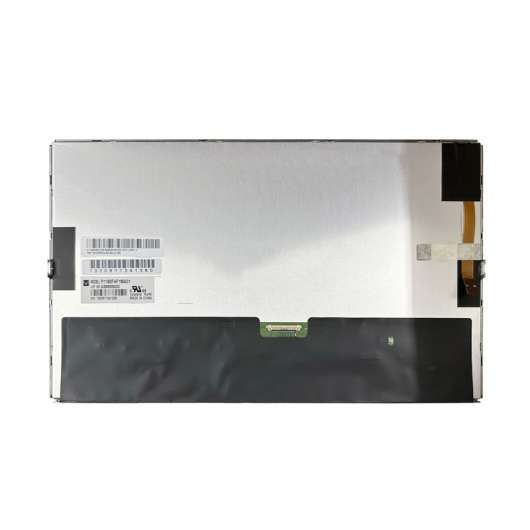

1.TIANMAP1040SVF1ME00Application DetailsBasic Information :BrandTIANMAModelP1040SVF1ME00Typea-Si TFT-LCD , LCMUsed ForIndus...
| Model | P1040SVF1ME00 |
| Brand | TIANMA |
| Size | 10.4inch |
| Resolution | 800*600 |
| Brightness | 400cd/m2 |
| Perspective | 88/88/88/88 |
| Interface | LVDS |
| Operating Temp | -20 ~ 70 °C |
| Production State | In Production |
Hangzhou IDT DISPLAY TECHNOLOGY CO.,LTD is the main agent of Youda AUO LCD screen, CHIMEI LCD screen, Mitsubishi LCD screen, INNOLUX LCD screen, Tianma LCD screen, touch LCD screen and other small ...
Read More
1.TIANMA P1040SVF1ME00 Application Details
Basic Information :
Brand
TIANMA
Model
P1040SVF1ME00
Type
a-Si TFT-LCD , LCM
Used For
Industrial
Screen Size
10.4 inch
Alias
-
Environment :
Storage Temp.
-30 ~ 80 °C
Operating Temp.
-20 ~ 70 °C
RoHS
RoHS
Vibration Level
Typical Features :
WLED Backlight，Life≥50K hours，Matte
2.TIANMA P1040SVF1ME00 Mechanical Details
Pixel Features :
Resolution
800(RGB)×600 [SVGA]
Dot Pitch(W×H)
0.088×0.264 mm
Pixel Format
RGB Vertical Stripe
Pixel Pitch (W×H)
0.264×0.264 mm [96PPI]
Mechanical Size :
Active Viewing
211.2(W)×158.4(H) mm
Overall Dim.
236(W)×176.9(H) mm
Bezel Opening
-
Depth(mm)
5.92±0.3 mm
Outline Features :
Form Style
Flat Rectangle
Shape Style
Aspect Ratio
4:3 (H:V)
Orientation
Landscape type
Fixation :
Face mounting holes (4 pcs) on left, right bezel
Other Spec :
Weight
313g (Typ.)
Treatment
Antiglare
3.TIANMA P1040SVF1ME00 Optical Details
Basic Information :
Luminance(cd/m²)
400 (Typ.)
Contrast Ratio
1200:1 (Typ.) (Transmissive)
Viewing Angle
88/88/88/88 (Typ.)(CR≥10)
Display Mode
SFT, Normally Black, Transmissive
Best View on
Symmetry
Response(ms)
35 (Typ.)(Tr+Td)
Dispaly Color :
Color Temperature
Color Amount
White color Chromaticity
6859K
262K (6-bit)
Wx:0.305; Wy:0.335
1931 Color Gamut :
NTSC Ratio
sRGB Coverage
Adobe RGB Coverage
54%
74%
57%
DCI-P3 Coverage
Rec.2020 Coverage
Remarks
56%
41%
sRGB (Rec.709, BT.709), Rec.2020 (BT.2020)
Luminance Variation :
1.25/1.33 (Typ./Max.)(9 points)
4. TIANMA P1040SVF1ME00 Electronics Details
Frame Rate :
60Hz
Reverse Scan :
No
5.TIANMA P1040SVF1ME00 Interface Details
Signal Electrical :
Voltage Supply
3.3V (Typ.)
Current Supply
-
Consumption
435mW (Typ.)
Signal Type :
LVDS (1 ch, 6-bit)
Interface Features :
Position
-
Type
Connector
Interface Detail :
Brand
Model
Pitch
Pins
Quantity
Pin Configuration
HRS
DF19K-20P-1H
1.0mm
20 pins
1 pcs
LVDS-20P1C6B-070A
6.TIANMA P1040SVF1ME00 Backlight Details
Backlight Features :
Type
WLED
Amount
6S6P
Position
Edge light type
Replacement
-
Shape
Array
Life Time
50K(Typ.) Hours
Lamp Electrical :
Input Current
120mA (Typ.)
Input Voltage
18.0±1.2V
Consumption
2.16W (Typ.)
Interface Features :
Position
Backlight Driver
Type
-
No
Connector
Interface Detail :
Brand
Model
Pin Pitch
Pins
Amount
Pin Assignment
JST
BHSR-02VS-1
3.5mm
2pins
1 pcs
BLE-2PINS-AC
Backlight Driver :
With LED Driver
7. TIANMA P1040SVF1ME00 Packing Features
Package Type
Pcs/Package
Box/Package
Package LWH (mm)
G.W (kgs)
Volume (m³)
Carton
8
1
520×345×74
N/A
0.0133
Outer box
24
3
544×365×250
13.14
0.0496
