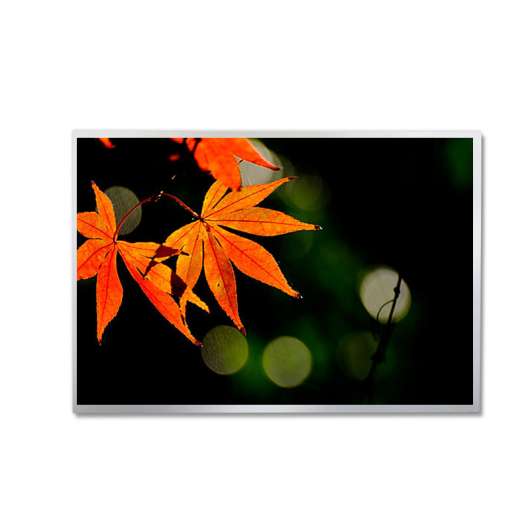

1.TIANMAP1040VGF1MB00 Application DetailsBasic Information :BrandTIANMAModelP1040VGF1MB00Typea-Si TFT-LCD , LCMUsed ForInd...
| Model | P1040VGF1MB00 |
| Brand | TIANMA |
| Size | 10.4inch |
| Resolution | 640*480 |
| Brightness | 450cd/m2 |
| Perspective | 88/88/88/88 |
| Interface | RGB |
| Operating Temp | -30 ~ 80 °C |
| Production State | In Production |
Hangzhou IDT DISPLAY TECHNOLOGY CO.,LTD is the main agent of Youda AUO LCD screen, CHIMEI LCD screen, Mitsubishi LCD screen, INNOLUX LCD screen, Tianma LCD screen, touch LCD screen and other small ...
Read More
1.TIANMA P1040VGF1MB00 Application Details
Basic Information :
Brand
TIANMA
Model
P1040VGF1MB00
Type
a-Si TFT-LCD , LCM
Used For
Industrial
Screen Size
10.4 inch
Environment :
Storage Temp.
-30 ~ 80 °C
Operating Temp.
-30 ~ 85 °C
RoHS
RoHS
Vibration Level
2.0G (19.6 m/s²)
Typical Features :
Wide Temperature,WLED Backlight，Life≥70K hours，180°Reverse,Matte
2.TIANMA P1040VGF1MB00 Mechanical Details
Pixel Features :
Resolution
640(RGB)×480, VGA
Dot Pitch(W×H)
0.11×0.33 mm
Pixel Format
RGB Vertical Stripe
Pixel Pitch(W×H)
0.33×0.33 mm [76PPI]
Mechanical Size :
Active Area
211.2(W)×158.4(H) mm
Overall Dim.
243(W)×185.1(H) mm
Bezel Opening
215.4(W)×161.8(H) mm
Depth(mm)
8.6/11.47 (Typ./Max.) mm
Outline Features :
Form Style
Flat Rectangle
Shape Style
Aspect Ratio
4:3 (H:V)
Orientation
Landscape type
Fixation :
Face mounting holes (2-Φ3.5, 2-R1.75) on left, right bezel
Other Spec :
Weight
475g (Typ.)
Treatment
Antiglare, Hard coating (3H)
3.TIANMA P1040VGF1MB00 Optical Details
Basic Information :
Luminance(cd/m²)
450 (Typ.)
Contrast Ratio
1000:1 (Typ.) (Transmissive)
Viewing Angle
88/88/88/88 (Typ.)(CR≥10)
Display Mode
SFT, Normally Black, Transmissive
Best View on
Symmetry
Response(ms)
25 (Typ.)(Tr+Td)
Dispaly Color :
Color Temperature
Color Amount
White color Chromaticity
7213K
262K (6-bit)
X:0.301; Y:0.325
1931 Color Gamut :
NTSC Ratio
sRGB Coverage
Adobe RGB Coverage
59%
81%
62%
DCI-P3 Coverage
Rec.2020 Coverage
Remarks
61%
44%
sRGB (Rec.709, BT.709), Rec.2020 (BT.2020)
Luminance Variation :
1.25/1.39 (Typ./Max.)(5 points)
4. TIANMA P1040VGF1MB00 Electronics Details
Frame Rate :
60Hz
Reverse Scan :
Yes (180°)
Time Controller (T-CON) :
Embedded T-CON
5.TIANMA P1040VGF1MB00 Interface Details
Signal Electrical :
Voltage Supply
3.3/5.0V (Typ.)(VCC)
Current Supply
85/73mA (Typ.)(3.3/5.0V)
Consumption
280.5/365mW (Typ.)(3.3/5.0V)
Signal Type :
Parallel RGB (1 ch, 6-bit)
Logic Voltage :
GND≤VIL≤0.2VCC; 0.8VCC≤VIH≤VCC
Interface Features :
Position
-
Type
Connector
Interface Detail :
Brand
Model
Pitch
Pins
Quantity
Pin Configuration
STM
MSAK24025P40
0.5
40 pins
1 pcs
6.TIANMA P1040VGF1MB00 Backlight Details
Backlight Features :
Type
WLED
Amount
6S3P
Position
Edge light type
Replacement
-
Shape
3strings
Life Time
70K(Typ.) Hours
WLED Electrical :
Input Voltage
Input Current
Consumption
18.0±1.8V
50/55mA (Typ./Max.)
2.70W (Typ.)
Interface Features :
WLED Driver State
Physical Type
Interface Position
No
Connector
-
Interface Detail :
Brand
Model
Pin Pitch
Pins
Amount
Pin Assignment
STM
MS24011P8RA
1.0 mm
8 pins
1 pcs
BLE-8PINS-ACACACNN
7.TIANMA P1040VGF1MB00 Packing Features
Package Type
Pcs/Package
Box/Package
Package LWH (mm)
G.W (kgs)
Volume (m³)
Carton
16
1
544×273.5×312.5
9.39
0.0465
