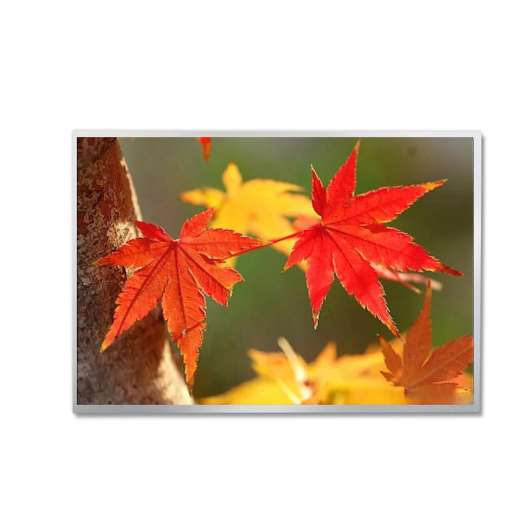

1.TIANMAP1040SVN1ME10Application DetailsBasic Information :BrandTIANMAModelP1040SVN1ME10Typea-Si TFT-LCD , LCMUsed ForIndus...
| Model | P1040SVN1ME10 |
| Brand | TIANMA |
| Size | 10.4inch |
| Resolution | 800*600 |
| Brightness | 350cd/m2 |
| Perspective | 70/70/60/70 (Typ.) |
| Interface | TTL |
| Operating Temp | -20 ~ 70 °C |
| Production State | In Production |
Hangzhou IDT DISPLAY TECHNOLOGY CO.,LTD is the main agent of Youda AUO LCD screen, CHIMEI LCD screen, Mitsubishi LCD screen, INNOLUX LCD screen, Tianma LCD screen, touch LCD screen and other small ...
Read More
1.TIANMA P1040SVN1ME10 Application Details
Basic Information :
Brand
TIANMA
Model
P1040SVN1ME10
Type
a-Si TFT-LCD , LCM
Used For
Industrial
Screen Size
10.4 inch
Alias
-
Environment :
Storage Temp.
-30 ~ 80 °C
Operating Temp.
-20 ~ 70 °C
RoHS
RoHS
Vibration Level
Typical Features :
WLED Backlight，6/8bit，Matte
2.TIANMA P1040SVN1ME10 Mechanical Details
Pixel Features :
Resolution
800(RGB)×600 [SVGA]
Dot Pitch(W×H)
0.088×0.264 mm
Pixel Format
RGB Vertical Stripe
Pixel Pitch (W×H)
0.264×0.264 mm [96PPI]
Mechanical Size :
Active Viewing
211.2(W)×158.4(H) mm
Overall Dim.
228.4×175.4 mm(H×V)
Bezel Opening
214.2×162.5 mm(H×V)
Depth(mm)
6.2±0.3 mm
Outline Features :
Form Style
Flat Rectangle
Shape Style
Aspect Ratio
4:3 (H:V)
Orientation
Landscape type
Holes & Brackets :
Without
Other Spec :
Weight
350g (Typ.)
Treatment
Antiglare
3.TIANMA P1040SVN1ME10 Optical Details
Basic Information :
Luminance(cd/m²)
350 (Typ.)
Contrast Ratio
500:1 (Typ.) (Transmissive)
Viewing Angle
70/70/60/70 (Typ.)(CR≥10)
Display Mode
TN, Normally White, Transmissive
Best View on
6 o'clock
Response(ms)
25 (Typ.)(Tr+Td)
Dispaly Color :
Color Temperature
Color Amount
White color Chromaticity
7239K
262K/16.2M (6-bit / 6-bit + FRC)
Wx:0.302; Wy:0.319
1931 Color Gamut :
NTSC Ratio
sRGB Coverage
Adobe RGB Coverage
50%
70%
52%
DCI-P3 Coverage
Rec.2020 Coverage
Remarks
52%
37%
sRGB (Rec.709, BT.709), Rec.2020 (BT.2020)
Luminance Variation :
1.33/1.43 (Typ./Max.)(9 points)
4. TIANMA P1040SVN1ME10 Electronics Details
Frame Rate :
60Hz
Reverse Scan :
No
Power Consumption :
2.739W (Typ.)
5.TIANMA P1040SVN1ME10 Interface Details
Signal Electrical :
Voltage Supply
3.3/11/25/-7.0V (Typ.)(VCC/AVDD/VGH/VGL)
Current Supply
10.2/34.3/0.7/0.7mA (Typ.)(ICC/IAVDD/IGH/IGL)
Consumption
435mW (Typ.)
Signal Type :
TTL (1 ch, 6/8-bit)
Interface Features :
Position
-
Type
FPC
Interface Detail :
Brand
Model
Pitch
Pins
Quantity
Pin Configuration
0.5mm
60 pins
1 pcs
6.TIANMA P1040SVN1ME10 Backlight Details
Backlight Features :
Type
WLED
Amount
3S12P
Position
Edge light type
Replacement
-
Shape
Array
Life Time
30K(Typ.) Hours
Lamp Electrical :
Input Current
240/360mA (Typ./Max.)
Input Voltage
9.0/9.6/9.9V (Min./Typ./Max.)
Consumption
2.304W (Typ.)
Interface Features :
Position
WLED Driver State
Type
-
No
Connector
Interface Detail :
Brand
Model
Pin Pitch
Pins
Amount
Pin Assignment
JST
BHSR-02VS-1
3.5mm
2pins
1 pcs
BLE-2PINS-AC
7. TIANMA P1040SVN1ME10 Packing Features
Package Type
Pcs/Package
Box/Package
Package LWH (mm)
G.W (kgs)
Volume (m³)
Carton
22
1
544×365×250
9.06
0.0496
