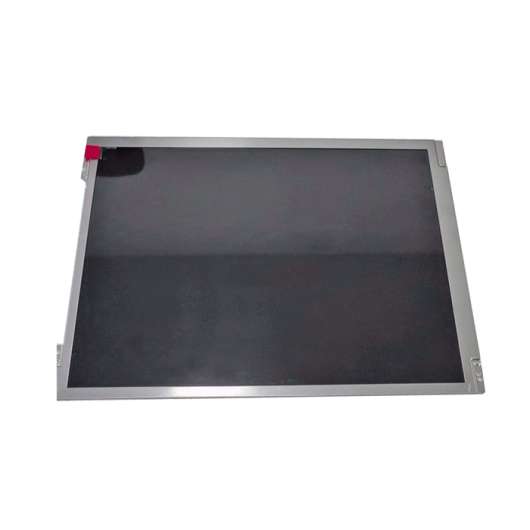

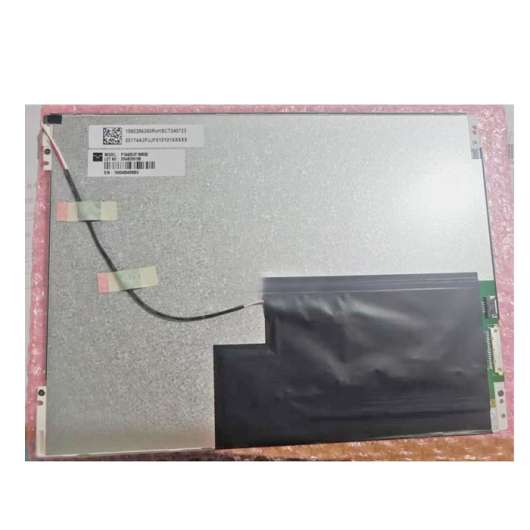

1.TIANMAP1040SVF1MB00Application DetailsBasic Information :BrandTIANMAModelP1040SVF1MB00Typea-Si TFT-LCD , LCMUsed ForIndus...
| Model | P1040SVF1MB00 |
| Brand | TIANMA |
| Size | 10.4inch |
| Resolution | 800*600 |
| Brightness | 400cd/m2 |
| Perspective | 88/88/88/88 |
| Interface | LVDS |
| Operating Temp | -20 ~ 70 °C |
| Production State | In Production |
Hangzhou IDT DISPLAY TECHNOLOGY CO.,LTD is the main agent of Youda AUO LCD screen, CHIMEI LCD screen, Mitsubishi LCD screen, INNOLUX LCD screen, Tianma LCD screen, touch LCD screen and other small ...
Read More
1.TIANMA P1040SVF1MB00 Application Details
Basic Information :
Brand
TIANMA
Model
P1040SVF1MB00
Type
a-Si TFT-LCD , LCM
Used For
Industrial
Screen Size
10.4 inch
Alias
-
Environment :
Storage Temp.
-30 ~ 80 °C
Operating Temp.
-20 ~ 70 °C
RoHS
RoHS
Vibration Level
Typical Features :
WLED Backlight，Life≥50K hours，With LED Driver，180°Reverse，6/8bit，Matte
2.TIANMA P1040SVF1MB00 Mechanical Details
Pixel Features :
Resolution
800(RGB)×600 [SVGA]
Dot Pitch(W×H)
0.088×0.264 mm
Pixel Format
RGB Vertical Stripe
Pixel Pitch (W×H)
0.264×0.264 mm [96PPI]
Mechanical Size :
Active Viewing
211.2(W)×158.4(H) mm
Overall Dim.
236(W)×176.9(H) mm
Bezel Opening
-
Depth(mm)
6.02±0.4 mm
Outline Features :
Form Style
Flat Rectangle
Shape Style
Aspect Ratio
4:3 (H:V)
Orientation
Landscape type
Holes & Brackets :
Face mounting holes (4 pcs) on left, right bezel
Other Spec :
Weight
TBD
Treatment
Antiglare
3.TIANMA P1040SVF1MB00 Optical Details
Basic Information :
Luminance(cd/m²)
400 (Typ.)
Contrast Ratio
1200:1 (Typ.) (Transmissive)
Viewing Angle
88/88/88/88 (Typ.)(CR≥10)
Display Mode
SFT, Normally Black, Transmissive
Best View on
Symmetry
Response(ms)
35 (Typ.)(Tr+Td)
Chromaticity
Wx:0.305; Wy:0.335
Support Color
262K/16.7M (6-bit / 8-bit)
Color Temperature
6859K
White Uniformity
1.25/1.33 (Typ./Max.)(9 points)
1931 Color Gamut :
NTSC Ratio
54%
sRGB
74% coverage
Adobe RGB
57% coverage
DCI-P3
56% coverage
Rec.2020
41% coverage
Remarks
sRGB (Rec.709, BT.709), Rec.2020 (BT.2020)
4. TIANMA P1040SVF1MB00 Electronics Details
Frame Rate :
60Hz
Reverse Scan :
Yes (180°)
5.TIANMA P1040SVF1MB00 Interface Details
Signal Electrical :
Voltage Supply
3.3V (Typ.)
Current Supply
-
Consumption
435mW (Typ.)
Signal Type :
LVDS (1 ch, 6/8-bit)
Interface Features :
Position
-
Type
Connector
Interface Detail :
Brand
Model
Pitch
Pins
Quantity
Pin Configuration
STM
MSB24013P20HA
1.0mm
20 pins
1 pcs
6.TIANMA P1040SVF1MB00 Backlight Details
Backlight Features :
Type
WLED
Amount
10S3P
Position
Edge light type
Replacement
-
Shape
3 strings
Life Time
50K(Typ.) Hours
Interface Features :
Position
Type
-
Connector
Interface Detail :
Brand
Model
Pin Pitch
Pins
Amount
Pin Assignment
STM
MSB24038P5
1.25mm
5pins
1 pcs
Backlight Driver :
With LED Driver
Driver Electrical :
Input Current
213mA (Typ.)
Input Voltage
12.0±1.2V
Consumption
1.92W (Typ.)
7. TIANMA P1040SVF1MB00 Packing Features
Package Type
Pcs/Package
Box/Package
Package LWH (mm)
G.W (kgs)
Volume (m³)
Carton
8
1
520×345×74
N/A
0.0133
Outer box
24
3
544×365×250
13.14
0.0496
