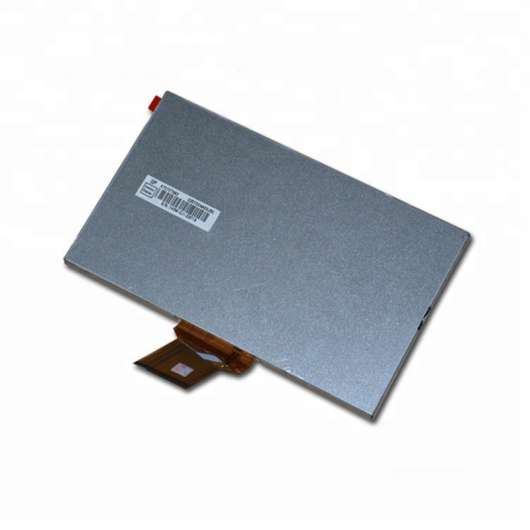

Innolux AT070TN92 7-inch TFT LCD display with 800×480 resolution, TTL interface High brightness, wide viewing angle for industrial medical embedded applications Global shipping

Model AT070TN92
Brand INNOLUX
Size 7.0inch
Resolution 800*480
Brightness 250cd/m²
Perspective 70/70/50/70 (Typ.)
Interface RGB
Operating Temp -20 ~ 70 °C
Production State In Production
Click For Price

1.Chimei Innolux 7" TFT LCD AT070TN92 Application Details

Basic Detail :Panel BrandINNOLUX/CHI MEIModel Name AT070TN92
Panel Typea-Si TFT-LCD , LCMAnother Name
Panel Size7.0”Designed ForDigital Photo Frame，Portable DVD Player，MP3 PMP，Video Door Phone
Maximum Ratings :OP Temperature-20 ~ 70 °CST Temperature-30 ~ 80 °C
RoHSRoHSVibration Level-
Features :WLED Backlight，U/D.L/R Reverse，6/8bit，Matte


2.Chimei Innolux 7" TFT LCD AT070TN92 Optical Details

Basic Information :Luminance250 cd/m² (Typ.)Contrast Ratio500 : 1 (Typ.) (Transmissive)
Good View at6 o'clockResponse Speed10/15 (Typ.)(Tr/Td) (ms)
Viewing Angle70/70/50/70 (Typ.)(CR≥10)Operating ModeTN, Normally White, Transmissive
Color Performance :ChromaticityX:0.310; Y:0.330Display Colors262K/16.7M (6-bit / 6-bit + Dithering)
Color Temperature6638KWhite Variation1.33/1.43 (Typ./Max.)(9 points)


3.Chimei Innolux 7" TFT LCD AT070TN92  Mechanical Details

Pixel Features :Number of Pixel800(RGB)*480 [WVGA]ArrangementRGB Vertical Stripe
Dot Pitch (mm)0.0642*0.1790 (H*V)Pixel Pitch (W*H) (mm)0.1790*0.1790 (H*V)  [134PPI]
Physical Size :Active Viewing(mm)154.08(H) *85.92(V)Bezel Area (mm)156.7(H) *89.1(V)
Outline Dim.(mm)164.9(H) *100(V)Depth(mm)5.7±0.3 mm
Outline Features :Form StyleFlat RectangleOutline Shape
Aspect Ratio16:9 (H:V)OrientationLandscape type
Holes & Brackets :Without
Other Spec :Weight150g (Typ.)SurfaceAntiglare


4.Chimei Innolux 7" TFT LCD AT070TN92  Electronics Details

Refresh Rate :60Hz
Reverse Scan :Yes (U/D, L/R)
Power Consumption :1.90W (Typ.)
Time Controller (T-CON) :Embedded T-CON


5.Chimei Innolux 7" TFT LCD AT070TN92  Interface Details

Signal Electrical :Signal InterfaceParallel RGB (1 ch, 6/8-bit)Logic Voltage0≤VIL≤0.3DVDD; 0.7DVDD≤VIH≤DVDD
Signal Electrical :Voltage Input3.3/10.4/16.0/-7.0V (Typ.)(VCC/AVDD/VGH/VGL)Current Input4.0/20.0/0.2/0.2mA (Typ.)(ICC/IAVDD/IGH/IGL)
Consumption226mW (Typ.)
Interface Features :Position-Physical TypeFPC
Interface Detail :BrandModelPin PitchPinsAmountPin Assignment


6.Chimei Innolux 7" TFT LCD AT070TN92 Backlight Details

Lamp Features :Lamp TypeWLEDQuantity3S9PPositionEdge light type
Exchange
-		Lamp ShapeArrayLamp Life20K(Min.) (Hours)
Lamp Electrical :Voltage Supply9.3±0.6VCurrent Supply170/180/200mA (Min./Typ./Max.)
Consumption1.674W (Typ.)
Interface Features :Position-Physical TypeIncluded in panel signal interface
Backlight Driver :No


7.Chimei Innolux 7" TFT LCD AT070TN92  Carton Details

Package Box :AmountWeightSize (L*W*H)
50pcs / box10.84±0.54 Kgs530*355*255 mm

Post A Message

Your email address will not be published. Required fields are marked *

Name*
Your E-Mail*
Message*
AT070TN83 V.1 INNOLUX 7" TFT LCD | 800x480 with Tcon Board - Industrial Display NJ070NA-23A INNOLUX 7" 1024x600 TFT LCD | Innolux IPS 500nits - Global Stock

Related Products

NJ070NA-23A INNOLUX 7" 1024x600 T...

NJ070NA-23A INNOLUX 7" 1024...

AT070TN94 7" 400nits TFT LCD | ...

AT070TN94 7" 400nits TFT L...

G070Y3-T01 7" TTL Industrial TFT...

G070Y3-T01 7" TTL Industria...

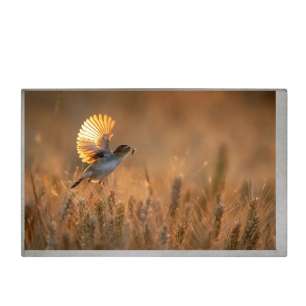

G070Y2-L01 INNOLUX 7" TFT LCD Di...
