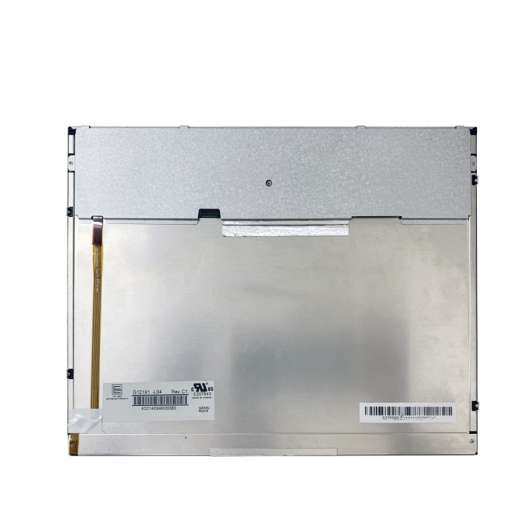

G121X1-L04 12.1" XGA Original LCD 1024x768 | Innolux Industrial Display Module

Original Chimei Innolux G121X1-L04 12 1-inch industrial LCD module 1024x768 XGA resolution, 500cd m² brightness, OP Temperature (-30~70°C), LVDS interface ,factory automation, and medical carts RoHS CE compliant, anti-vibration design Global stock with EDID files and pinout diagrams Request 24h authenticated sample with batch traceability

Model	G121X1-L04
Brand	Chimei Innolux
Size	12.1inch
Resolution	1024*768
Brightness	500 cd/m² (Typ.)
Perspective	80/80/70/70 (Typ.)
Interface	LVDS
Operating Temp	-30 ~ 70 °C
Production State	Discontinued

Click For Price

1.Chimei Innolux G121X1-L04 Application Details

Basic Detail :	Panel Brand	INNOLUX/CHI MEI	Model Name	G121X1-L04
	Panel Type	a-Si TFT-LCD , LCM	Another Name
	Panel Size	12.1”	Designed For	Industrial,Automotive Display
Maximum Ratings :	OP Temperature	-30 ~ 70 °C	ST Temperature	-40 ~ 80 °C
Maximum Ratings :	RoHS	RoHS	Vibration Level	1.5G (14.7 m/s²)
Features :	Wide Temperature， WLED Backlight，With LED Driver, U/D,L/R Reverse,6/8 bit, Matte

2.Chimei Innolux G121X1-L04 Optical Details

Basic Information :	Luminance	500 cd/m²(Typ.)	Contrast Ratio	700 : 1 (Typ.) (Transmissive)
	Good View at	-	Response Speed	5/11 (Typ.)(Tr/Td) ms
	Viewing Angle	80/80/70/70 (Typ.)(CR≥10)	Operating Mode	TN, Normally White, Transmissive
Color Performance :	Chromaticity	Wx:0.313; Wy:0.329	Display Colors	262K/16.2M (6-bit / 6-bit + FRC)
Color Performance :	Color Temperature	6485K	White Variation	1.25/1.40 (Typ./Max.)(5 points)
1931 Color Gamlt :	NTSC Ratio	63%	sRGB	83% coverage
	Adobe RGB	65% coverage	DCI-P3	65% coverage
	Rec.2020	47% coverage	Remarks	sRGB (Rec.709, BT.709), Rec.2020 (BT.2020)

3.Chimei Innolux G121X1-L04 Mechanical Details

Pixel Features :	Number of Pixel	1024(RGB)*768, XGA	Arrangement	RGB Vertical Stripe
Pixel Features :	Dot Pitch (W*H)	0.080*0.240 mm	Pixel Pitch (W*H)	0.240*0.240 mm [105PPI]
Physical Size :	Active Viewing(mm)	245.76(W)*184.32(H) mm	Bezel Area (mm)	249.0(W)*187.5(H) mm
Physical Size :	Outline Dim.(mm)	260.5(W)*204(H) mm	Depth(mm)	7.2±0.5 mm
Outline Features :	Form Style	Flat Rectangle	Outline Shape
Outline Features :	Aspect Ratio	4:3(W:H)	Orientation	Landscape type
Fixation :	Side mounting holes (4-M2) on left, right bezel
Other Spec :	Weight	435/465g (Typ./Max.)	Surface	Antiglare, Hard coating (3H)

4.Chimei Innolux G121X1-L04 Electronics Details

Refresh Rate :	60Hz
Reverse Scan :	Yes (U/D, L/R)
Total Consumption :	6.6W (Typ.)

5.Chimei Innolux G121X1-L04 Interface Details

Signal Systerm :		LVDS (1 ch, 6/8-bit)				Logic Voltage				-
Signal Electrical :	Voltage Input			3.3/5.0V (Typ.)			Current Input		540/400mA (Typ.)(3.3/5.0V)
	Consumption			2.0W (Typ.)
Interface Features :	Position			-			Physical Type		Connector
Interface Detail :	Brand		Model		Pin Pitch			Pins	Amount		Pin Assignment
	JAE		FI-SEB20P-HFE		1.25mm			20pins	1 pcs		LVDS-20P1C8B-160A

6.Chimei Innolux G121X1-L04 Backlight Details

Lamp Features :

Lamp Type

WLED

Quantity

Position

Edge light type

Exchange

Lamp Shape

Lamp Life

30K(Min.) (Hours)

Interface Features :

Position

Physical Type

Connector

Interface Detail :

Brand

Model

Pin Pitch

Pins

Amount

Pin Assignment

ACES

91208-01001

1.0 mm

10 pins

1 pcs

Backlight Driver :

With LED Driver

Driver Electrical :

Input Voltage

12.0±5.0V

Input Current

0.4/0.5A (Typ./Max.)

Consumption

4.8/6W (Typ./Max.)

7.Chimei Innolux G121X1-L04 Carton Details

Package Box :	Amount	Weight	Size (LWH)
Package Box :	16pcs / box	9.13 Kgs	465362314 mm (LWH)
