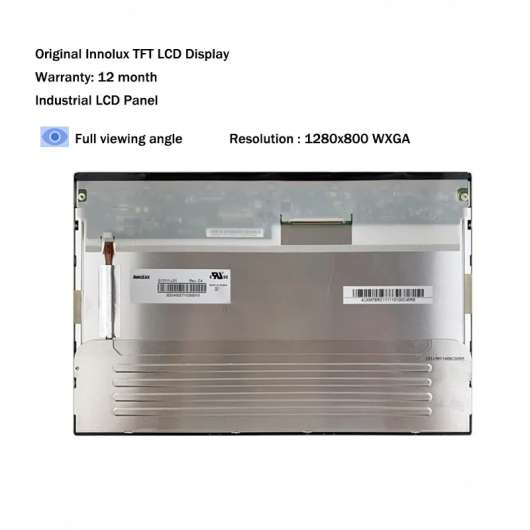

Innolux G121I1-L01 12.1 "LCD screen | 1280 × 800 resolution | Industrial grade TFT module

Innolux G121I1-L01 12inch LCD screen
Innolux G121I1-L01 12inch LCD screen
  • Innolux G121I1-L01 12inch LCD screen
  • Innolux G121I1-L01 12inch LCD screen

Innolux G121I1-L01 12.1 "LCD screen | 1280 × 800 resolution | Industrial grade TFT module

Qimei G121I1-L01 12 inch TFT LCD screen, resolution 1280 × 800, industrial grade wide temperature design, supports LVDS interface Suitable for medical equipment, industrial HMI, POS terminals, providing OEM customized touch screens and global wholesale services

Model G121I1-L01
Brand Chimei Innolux
Size 12.1inch
Resolution 1280*800
Brightness 400 cd/m² (Typ.)
Perspective 88/88/88/88 (Typ.)
Interface LVDS
Operating Temp -10 ~ 70 °C
Production State Discontinued
Click For Price

1.Chimei Innolux 12.1 "LCD screen G121I1-L01 Application Details

Basic Detail :Panel BrandINNOLUX/CHI MEIModel Name G121I1-L01
Panel Typea-Si TFT-LCD , LCMAnother Name
Panel Size12.1”Designed ForIndustrial
Maximum Ratings :OP Temperature-10 ~ 70 °C ST Temperature-20 ~ 80 °C
RoHSRoHSVibration Level1.0G (9.8 m/s²)
Features :Lamp Repaceable,WLED Backlight， Life>=50K hours,With LED Driver，6/8bit，matte


2.Chimei Innolux 12.1 "LCD screen G121I1-L01 Optical Details

Basic Information :Luminance400 cd/m²(Typ.)Contrast Ratio1000:1 (Typ.) (Transmissive)
Good View atSymmetryResponse Speed15/10 (Typ.)(Tr/Td) ms
Viewing Angle88/88/88/88 (Typ.)(CR≥10) Operating ModeMVA, Normally Black, Transmissive
Color Performance :ChromaticityWx:0.313; Wy:0.329Display Colors262K/16.2M (6-bit / 6-bit + FRC)
Color Temperature6485KWhite Variation1.25/1.40 (Typ./Max.)(5 points)
1931 Color Gamlt :NTSC Ratio45%sRGB62% coverage
Adobe RGB47% coverageDCI-P347% coverage
Rec.202034% coverageRemarkssRGB (Rec.709, BT.709), Rec.2020 (BT.2020)


3.Chimei Innolux 12.1 "LCD screen G121I1-L01 Mechanical Details

Pixel Features :Number of Pixel1280(RGB)*800 [WXGA]ArrangementRGB Vertical Stripe
Dot Pitch (W×H)0.068*0.204 mmPixel Pitch (W×H)0.204*0.204 mm  [124PPI]
Physical Size :Active Viewing(mm)261.12(W)*163.2(H) mmBezel Area (mm)265.10(W)*167.20(H) mm
Outline Dim.(mm)278(W)*184(H) mmDepth(mm)8.1/10.5 (Typ./Max.) mm
Outline Features :Form StyleFlat RectangleOutline Shape
Aspect Ratio16:10(W:H)OrientationLandscape type
Fixation :Side mounting holes (4-M2) on left, right bezel
Other Spec :Weight455g (Typ.)SurfaceAntiglare, Hard coating (3H)


4.Chimei Innolux 12.1 "LCD screen G121I1-L01 Electronics Details

Refresh Rate :60Hz
Reverse Scan :No
Power Consumption :10.15W (Max.)


5.Chimei Innolux 12.1 "LCD screen G121I1-L01 Interface Details

Signal Systerm :LVDS (1 ch, 6/8-bit)Logic Voltage-
Signal Electrical :Voltage Input3.3V (Typ.)Current Input500±50mA
Consumption1.65W (Typ.)
Interface Features :Position-Physical TypeConnector
Interface Detail :BrandModelPin PitchPinsAmountPin Assignment
STARCONN093G30-B0001A-G41.0mm30pins1 pcsLVDS-30P1C8B-105A


6.Chimei Innolux 12.1 "LCD screen G121I1-L01 Backlight Details

Lamp Features :Lamp TypeWLEDQuantity9S3PPositionEdge light type
ExchangeReplaceableLamp Shape3 stringsLamp Life50K(Min.) (Hours)
Interface Features :Position-Physical TypeIncluded in panel signal interface
Backlight Driver :With LED Driver
Driver Electrical :Input Current0.7±0.1AInput Voltage10.8/12.0/15.0V (Min./Typ./Max.)
Consumption8.5W (Typ.)


7.Chimei Innolux 12.1 "LCD screen G121I1-L01 Carton Details

Package Box :AmountWeightSize (L*W*H)
20pcs / box16 Kgs465*362*314 mm

Post A Message

Your email address will not be published. Required fields are marked *

Name*
Your E-Mail*
Message*
Innolux G121X1-L02 12.1 "industrial screen | 1024 × 768 | 500nits high brightness | LVDS interface G121X1-L03 12.1 "Industrial LCD Screen | 600nits High Brightness | 1024 × 768 TN Screen | Sample Wholesale Available

Related Products

G121XCE-L01 12.1" XGA Industrial ...

G121XCE-L01 12.1" XGA Indus...

G121ICE-L02 12.1" WXGA LCD 1280x8...

G121ICE-L02 12.1" WXGA LCD...

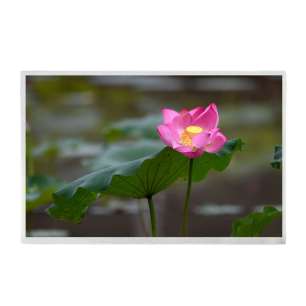

G121XGE-L01 12.1" 1024x768 LCD Pa...

G121XGE-L01 12.1" 1024x768 ...

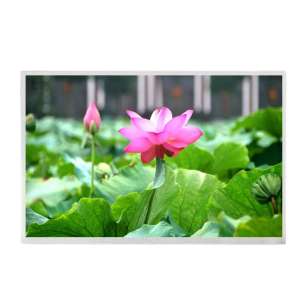

G121ACE-LH2 12.1" SVGA High Brigh...
