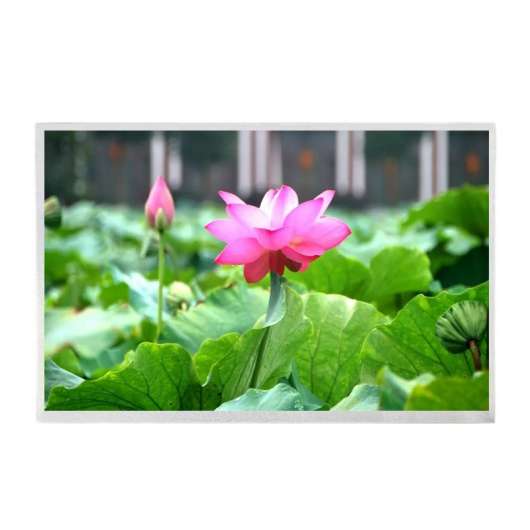

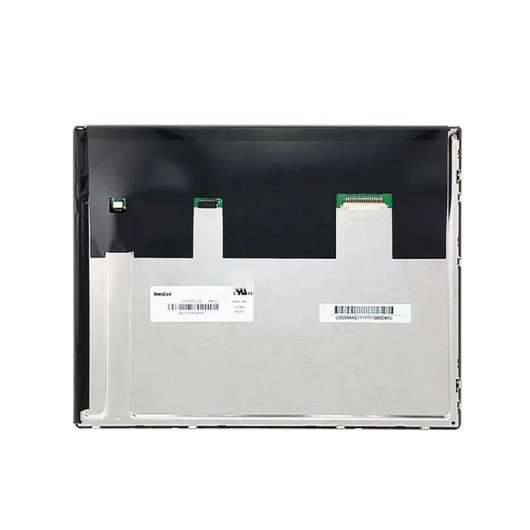

G121ACE-LH2 12.1" SVGA High Brightness LCD 800x600 | 600nits Industrial Display with LVDS

G121ACE-LH2 12.1` SVGA High Brightness LCD
G121ACE-LH2 12.1` SVGA High Brightness LCD
  • G121ACE-LH2 12.1` SVGA High Brightness LCD
  • G121ACE-LH2 12.1` SVGA High Brightness LCD

G121ACE-LH2 12.1" SVGA High Brightness LCD 800x600 | 600nits Industrial Display with LVDS

Original Innolux G121ACE-LH2 12 1-inch industrial LCD panel 800x600 SVGA resolution, 600nits ultra-high brightness, wide temperature (-30~80°C), LVDS interface sunlight readable applications: construction machinery HMIs, medical carts, and outdoor kiosks Anti-glare treatment, 50,000hr backlight life Global stock with optical bonding service Request 24h high-brightness sample

Model G121ACE-LH2
Brand Chimei Innolux
Size 12.1inch
Resolution 800*600
Brightness 600cd/m2
Perspective 88/88/88/88
Interface LVDS
Operating Temp -30 ~ 80 °C
Production State In Production
Click For Price

1.Innolux  12.1"LCD Display G121ACE-LH2 Application Details

Basic Info :Panel BrandINNOLUXPanel ModelG121ACE-LH2
Diagonal Size12.1"ApplicationIndustrial
Panel Typea-Si TFT-LCD , LCM

Reliability :Operating Temp.-30 ~ 80°CStorage Temp.-30 ~ 85 °C
RoHSRoHSVibration Rating1.5G (14.7 m/s²)
Specific Features :Wide Temperature，Hight Brightness，WLED Backlight，Life>=50K hours,With LED Driver,Upside I/F,180°;Reverse，6/8bit，Matte


2.Innolux 12.1"LCD Display G121ACE-LH2 Mechanical Details

Pixel Features Pixel Format800(RGB)*600, SVGADot Pitch0.1025*0.3075mm (H*V)
ConfigurationRGB Vertical StripePixel Pitch0.3075*0.3075mm (H*V)  [82PPI]
Mechanical Size :Display Area (mm)246(H) *184.5(V)Outline Dim. (mm)249(H) * 187.5(V)
Outline Dim. (mm)260.5(H) * 204(V)Outline Depth (mm)8.4±0.5
Outline Features :Form FactorFlat RectangleOrientationLandscape type
Aspect Ratio4:3 (H:V)Shape Style
Holes & Brackets :Side mounting holes (4-M2) on left, right bezel
Other Features :Weight470/490g (Typ./Max.)SurfaceAntiglare, Hard coating (3H)


3.Innolux 12.1"LCD Display G121ACE-LH2 Optical Details

Basic Information :Brightness600 cd/m²(Typ.)Contrast Ratio1000:1 (Typ.) (Transmissive)
Viewing Angle88/88/88/88 (Typ.)(CR≥10)Optical ModeAAS, Normally Black, Transmissive
Viewing DirectionSymmetryResponse Time13/12 (Typ.)(Tr/Td) ms
Color Performance :ChromaticityWx:0.313; Wy:0.329Color Numbers262K/16.2M (6-bit / 8-bit)
Color Temperature6485KUniformity1.25/1.43(Typ./Max.)(9 points)
1931 Color Gamut :NTSC Ratio72%sRGB94% coverage
Adobe RGB73% coverageDCI-P374% coverage
Rec.202054% coverageRemarkssRGB (Rec.709, BT.709), Rec.2020 (BT.2020)


4.Innolux 12.1"LCD Display G121ACE-LH2 Electronics Details

Frame Frequency :60Hz
Reverse Scan :Yes (180°)
Power Consumption :10.47W (Typ.)


5.Innolux 12.1"LCD Display G121ACE-LH2 Backlight Details

Back-light Features :Lamp TypeWLEDAmount-Life Time50K(Min.) (Hours)
Replacement-Lamp Shape-PositionEdge light type
Interface Features :TypeConnectorPosition-Lamp DriverWith LED Driver
Interface Detail :BrandModelPin PitchPinsAmountConfiguration
CviLuxCI4205M2HRP-NH1.25 mm5pins1 pcs
Driver Electrical :Voltage Input12±1.2VCurrent Input0.8±0.2A
Consumption9.6W (Typ.)


6.Innolux 12.1"LCD Display G121ACE-LH2 Interface Detail

Signal Systerm :LVDS (1 ch, 6/8-bit)
Logic Voltage-
Signal Electrical :Voltage Input5.0V (Typ.)
Current Input87.96/105.64mA (Typ./Max.)
Consumption-
Interface Features :TypeConnector
PositionUpper right of panel
Connector Detail :BrandModelPin PitchPinsAmountConfiguration
I-PEX20455-030E-760.5mm30 pins1 pcs-


7.Innolux 12.1"LCD Display G121ACE-LH2 Carton Details

Package Carton :AmountNet WeightCarton Size (L*W*H)
18 pcs / box10.9 Kgs465*362*314 mm

Post A Message

Your email address will not be published. Required fields are marked *

Name*
Your E-Mail*
Message*
G121XGE-L01 12.1" 1024x768 LCD Panel | Chimei Innolux IPS Industrial screen G121XCE-L02 12.1" XGA IPS Industrial LCD 1024x768 | Wide Temperature Innolux Display Module

Related Products

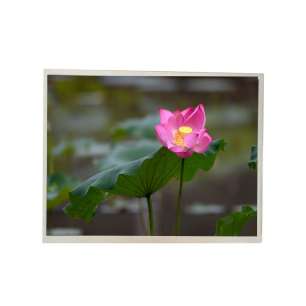

G121XCE-L02 12.1" XGA IPS Industr...

G121XCE-L02 12.1" XGA IPS ...

G121XCE-LM1 12.1" XGA Sunlight Re...

G121XCE-LM1 12.1" XGA Sunli...

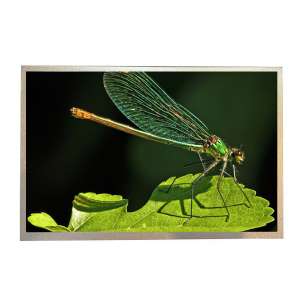

G121ACE-LH1 12.1" XGA Industrial ...
