High-quality Innolux 10.4 inch IPS TFT LCD Panel G104X1-L04 with 1024x768, LVDS Display

Original Innolux G104X1-L04 10 4-inch IPS TFT LCD 1024x768 XGA resolution, 500cd m² brightness, wide temperature (-30~80°C), LVDS interface Industrial-grade construction for medical devices, factory HMIs, and test equipment RoHS CE compliant, Global logistics, driver SDK & datasheet Request OEM ODM solutions

Model	G104X1-L04
Brand	Chimei Innolux
Size	10.4inch
Resolution	1024*768
Brightness	500cd/m2
Perspective	88/88/88/88
Interface	LVDS
Operating Temp	-30 ~ 80 °C
Production State	Discontinued

Click For Price

1.Chimei Innolux G104X1-L04 Application Details

Basic Detail :	Panel Brand	INNOLUX/CHI MEI	Model Name	G104X1-L04
	Panel Type	a-Si TFT-LCD , LCM	Another Name
	Panel Size	10.4”	Designed For	Industrial
Maximum Ratings :	OP Temperature	-30 ~ 80 °C	ST Temperature	-30 ~ 80 °C
Maximum Ratings :	RoHS	RoHS	Vibration Level	1.5G (14.7 m/s² )
Features :	Wide Temperature，Lamp Repaceable,WLED Backlight，Life>=50K hours,180°;Reverse,With LED Driver, Matte,6/8 bit

2.Chimei Innolux G104X1-L04 Optical Details

Basic Information :	Luminance	500 cd/m² (Typ.)	Contrast Ratio	1000 : 1 (Typ.) (Transmissive)
	Good View at	Symmetry	Response Speed	14/11 (Typ.)(Tr/Td) (ms)
	Viewing Angle	88/88/88/88 (Typ.)(CR≥10)	Operating Mode	Super MVA, Normally Black, Transmissive
Color Performance :	Chromaticity	Wx:0.313; Wy:0.329	Display Colors	262K/16.2M (6-bit / 6-bit + FRC)
Color Performance :	Color Temperature	6485K	White Variation	1.25/1.40 (Typ./Max.)(5 points)
1931 Color Gamlt :	NTSC Ratio	55%	sRGB	77% coverage
	Adobe RGB	58% coverage	DCI-P3	57% coverage
	Rec.2020	41% coverage	Remarks	sRGB (Rec.709, BT.709), Rec.2020 (BT.2020)

3.Chimei Innolux G104X1-L04 Mechanical Details

Pixel Features :	Number of Pixel	1024(RGB)*768, XGA	Arrangement	RGB Vertical Stripe
Pixel Features :	Dot Pitch (W*H)	0.06850.2055 (HV)	Pixel Pitch (W*H)	0.20550.2055 (HV) [123PPI]
Physical Size :	Active Viewing(mm)	210.4(H) *157.8(V)	Bezel Area (mm)	215.4(H) *161.8(V)
Physical Size :	Outline Dim.(mm)	225.5(H) *176.3(V)	Depth(mm)	7.96/9.2 (Typ./Max.)
Outline Features :	Form Style	Flat Rectangle	Outline Shape
Outline Features :	Aspect Ratio	4:3(W:H)	Orientation	Landscape type
Fixation :	Side mounting holes (4-M2) on left, right bezel
Other Spec :	Weight	430±50g	Surface	Antiglare

4.Chimei Innolux G104X1-L04 Electronics Details

Refresh Rate :	60Hz
Reverse Scan :	Yes (180°)
Total Consumption :	7.9W (Typ.)

5.Chimei Innolux G104X1-L04 Interface Details

Signal Systerm :		LVDS (1 ch, 6/8-bit)				Logic Voltage				-
Signal Electrical :	Voltage Input			3.3V (Typ.)			Current Input		570±50mA
	Consumption			1.9/2.05W (Typ./Max.)
Interface Features :	Position			-			Physical Type		Connector
Interface Detail :	Brand		Model		Pin Pitch			Pins	Amount		Pin Assignment
	JAE		FI-XB30SRL-HF11		1.0mm			30pins	1 pcs		LVDS-30P1C8B-085A

6.Chimei Innolux G104X1-L04 Backlight Details

Lamp Features :

Lamp Type

WLED

Quantity

Position

Edge light type

Exchange

Replaceable

Lamp Shape

Lamp Life

50K(Min.) (Hours)

Interface Features :

Position

Physical Type

Connector

Interface Detail :

Brand

Model

Pin Pitch

Pins

Amount

Pin Assignment

ACES

91208-01001

1.0 mm

10 pins

1 pcs

Backlight Driver :

With LED Driver

Driver Electrical :

Input Voltage

12.0±1.2V

Input Current

0.5/0.6A (Typ./Max.)

Consumption

6.0/7.2W (Typ./Max.)

7.Chimei Innolux G104X1-L04 Carton Details

Package Box :	Amount	Weight	Size (LWH)
Package Box :	18pcs / box	11.23 Kgs	465362314mm

Your email address will not be published. Required fields are marked *

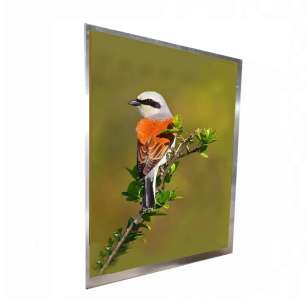

G104V1-T03 Chimei Innolux industrial 10.4inch 640*480 LCD Screen Display Module G104ACJ-L01 10.4" High Brightness IPS LCD 960x1280 Portrait | Innolux Industrial Display
