G104V1-T03 10.4" Industrial TFT LCD Module 640x480 VGA | Innolux Wide Temperature Display

G104V1-T03 10.4inch Industrial TFT LCD Module 640x480 VGA Innolux Wide Temperature Display
G104V1-T03 10.4inch Industrial TFT LCD Module 640x480 VGA Innolux Wide Temperature Display
  • G104V1-T03 10.4inch Industrial TFT LCD Module 640x480 VGA Innolux Wide Temperature Display
  • G104V1-T03 10.4inch Industrial TFT LCD Module 640x480 VGA Innolux Wide Temperature Display

G104V1-T03 10.4" Industrial TFT LCD Module 640x480 VGA | Innolux Wide Temperature Display

Original Chimei Innolux G104V1-T03 10 4-inch industrial LCD module 640x480 VGA resolution, 500cd m² brightness, wide operating temperature (-30~80°C), 4:3 aspect ratio Designed for forklift terminals, warehouse scanners, and legacy HMI systems RoHS compliant, anti-vibration construction Global shipping with pinout diagrams Request bulk replacement pricing

Model G104V1-T03
Brand Chimei Innolux
Size 10.4inch
Resolution 640*480
Brightness 500cd/m2
Perspective 88/88/88/88
Interface CMOS/TTL
Operating Temp -30 ~ 80 °C
Production State Discontinued
Click For Price

1.Chimei Innolux 10 4 inch TFT LCD G104V1-T03 Application Details

Basic Detail :Panel BrandINNOLUX/CHI MEIModel NameG104V1-T03
Panel Typea-Si TFT-LCD , LCMAnother Name
Panel Size10.4”Designed ForIndustrial
Maximum Ratings :OP Temperature-30 ~ 80 °CST Temperature-30 ~ 80 °C
RoHSRoHSVibration Level1.5G (14.7 m/s²)
Features :Wide Temperature，Lamp Repaceable,WLED Backlight，Life>=50K hours,180°;Reverse,With LED Driver, Matte


2.Chimei Innolux 10 4 inch TFT LCD G104V1-T03 Optical Details

Basic Information :Luminance500 cd/m²(Typ.)Contrast Ratio1500 : 1 (Typ.) (Transmissive)
Good View atSymmetryResponse Speed14/9 (Typ.)(Tr/Td) (ms)
Viewing Angle88/88/88/88 (Typ.)(CR≥10)Operating ModeSuper MVA, Normally Black, Transmissive
Color Performance :ChromaticityWx:0.313; Wy:0.329Display Colors262K (6-bit)
Color Temperature6485KWhite Variation1.40 (Max.)(5 points)
1931 Color Gamlt :NTSC Ratio55%sRGB76% coverage
Adobe RGB57% coverageDCI-P357% coverage
Rec.202041% coverageRemarkssRGB (Rec.709, BT.709), Rec.2020 (BT.2020)


3.Chimei Innolux 10 4 inch TFT LCD G104V1-T03 Mechanical Details

Pixel Features :Number of Pixel640(RGB)*480 [VGA]ArrangementRGB Vertical Stripe
Dot Pitch (W*H)0.110*0.330 mm (H*V)Pixel Pitch (W*H)0.330*0.330 mm (H*V)  [76PPI]
Physical Size :Active Viewing(mm)211.2(H) *158.4(V)Bezel Area (mm)215.4*161.8 mm (H*V)
Outline Dim.(mm)225.5*176.3 mm (H*V)Depth(mm)7.81/9.34 (Typ./Max.) mm
Outline Features :Form StyleFlat RectangleOutline Shape
Aspect Ratio4:3(W:H)OrientationLandscape type
Fixation :Side mounting holes (4-M2) on left, right bezel
Other Spec :Weight395±50gSurfaceAntiglare (Haze 25%), Hard coating (3H)


4.Chimei Innolux 10 4 inch TFT LCD  G104V1-T03 Electronics Details

Refresh Rate :60Hz
Reverse Scan :Yes (180°)
Total Consumption :8.94W (Typ.)
Time Controller (T-CON) :Embedded T-CON


5.Chimei Innolux 10 4 inch TFT LCD G104V1-T03 Interface Details

Signal Systerm :CMOS/TTL (1 ch, 6-bit)Logic Voltage0≤VIL≤0.3VCC; 0.7VCC≤VIH≤VCC
Signal Electrical :Voltage Input3.3/5.0V (Typ.)(VCC)Current Input490/390mA (Typ.)(ICC)
Consumption1.617W (Typ.)
Interface Features :Position-Physical TypeConnector
Interface Detail :BrandModelPin PitchPinsAmountPin Assignment
HRSDF9C-31P-1V1.0mm31pins1 pcsDRGB-31P1C6B-010C


6.Chimei Innolux 10 4 inch TFT LCD G104V1-T03 Backlight Details

Lamp Features :Lamp TypeWLEDQuantity-PositionEdge light type (Top side)
ExchangeReplaceableLamp Shape-Lamp Life50K(Min.) (Hours)
Interface Features :Position-Physical TypeConnector
Interface Detail :BrandModelPin PitchPinsAmount
Pin Assignment
E&T3823K-F05N-00L1.25 mm5 pins1 pcs
Backlight Driver :With LED Driver
Driver Electrical :Input Voltage10.8/12.0/12.6V (Min./Typ./Max.)Input Current0.61A (Typ.)
Consumption7.32W (Typ.)


7.Chimei Innolux 10 4 inch TFT LCD G104V1-T03 Carton Details

Package Box :AmountWeightSize (L*W*H)
18pcs / box11.23 Kgs465*362*314mm

Post A Message

Your email address will not be published. Required fields are marked *

Name*
Your E-Mail*
Message*
G104S1-L01 10.4" SVGA Industrial LCD 800x600 | Innolux Wide Temperature TFT Display High-quality Innolux 10.4 inch IPS TFT LCD Panel G104X1-L04 with 1024x768, LVDS Display

Related Products

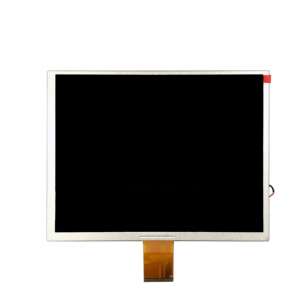

LSA40AT9001 10.4" SVGA TFT LCD 8...
