G104ACJ-L01 10.4" High Brightness IPS LCD 960x1280 Portrait | Innolux Industrial Display

Original Innolux G104ACJ-L01 10 4-inch IPS LCD with 960x1280 portrait mode 900cd m² ultra-high brightness, wide temperature (-40~85°C), LVDS interface Certified for portable medical devices, outdoor HMIs, and handheld instruments Sunlight readable, RoHS compliant Global shipping with driver SDK support Request OEM pricing

Model G104ACJ-L01
Brand Chimei Innolux
Size 10.4inch
Resolution 960*1280
Brightness 900cd/m2
Perspective 85/85/85/85
Interface LVDS
Operating Temp -40 ~ 85 °C
Production State In Production
Click For Price

1.Chimei Innolux  G104ACJ-L01 Application Details

Basic Detail :Panel BrandINNOLUX/CHI MEIModel Name G104ACJ-L01
Panel Typea-Si TFT-LCD , LCMAnother Name
Panel Size10.4”Designed ForIndustrial,Outdoor High Brightness
Maximum Ratings :OP Temperature-40 ~ 85  °C ST Temperature-40 ~ 90  °C
RoHSRoHSVibration Level1.5G (14.7 m/s²)
Features :Portrait type,Wide Temperature，Hight Brightness,WLED Backlight，Life>=50K hours, Matte


2.Chimei Innolux   G104ACJ-L01 Optical Details

Basic Information :Luminance900 cd/m²(Typ.)Contrast Ratio1000 : 1 (Typ.) (Transmissive)
Good View atSymmetryResponse Speed13/12 (Typ.)(Tr/Td) (ms)
Viewing Angle85/85/85/85(Typ.)(CR≥10)Operating ModeAAS, Normally Black, Transmissive
Color Performance :ChromaticityWx:0.313; Wy:0.329Display Colors16.7M (8-bit)
Color Temperature6485KWhite Variation1.42 (Max.)(9 points)
1931 Color Gamlt :NTSC Ratio73%sRGB93% coverage
Adobe RGB72% coverageDCI-P375% coverage
Rec.202054% coverageRemarkssRGB (Rec.709, BT.709), Rec.2020 (BT.2020)
Dispaly Performance :Outdoor VisibilitySunlight ReadableTransmissivity-


3.Chimei Innolux  G104ACJ-L01 Mechanical Details

Pixel Features :Number of Pixel960(RGB)*1280, Quad-VGAArrangementRGB Vertical Stripe
Dot Pitch (W*H)0.055*0.165 mmPixel Pitch (W*H)0.165*0.165 mm  [153PPI]
Physical Size :Active Viewing(mm)158.4(W)*211.2(H) mmBezel Area (mm)160.6(W)*213.9(H) mm
Outline Dim.(mm)173.4(W)*228.7(H) mmDepth(mm)8/14.27 (Typ./Max.) mm
Outline Features :Form StyleFlat RectangleOutline Shape
Aspect Ratio3:4(W:H)OrientationPortrait type
Fixation :Rear mounting Pole (6-M2.5)
Other Spec :Weight450/470g (Typ./Max.)SurfaceAntiglare, Hard coating (3H)


4.Chimei Innolux   G104ACJ-L01 Electronics Details

Refresh Rate :60Hz
Reverse Scan :No
Total Consumption :9.64W (Typ.)


5.Chimei Innolux  G104ACJ-L01 Interface Details

Signal Systerm :LVDS (1 ch, 8-bit)Logic Voltage-
Signal Electrical :Voltage Input3.3V (Typ.)Current Input400/480mA (Typ./Max.)
Consumption1.32/1.58W (Typ./Max.)
Interface Features :Position-Physical TypeConnector
Interface Detail :BrandModelPin PitchPinsAmountPin Assignment
HRSFH52-50S-0.5SH0.5mm50pins1 pcs


6.Chimei Innolux   G104ACJ-L01 Backlight Details

Lamp Features :Lamp TypeWLEDQuantity-PositionEdge light type
Exchange
 -		Lamp Shape-Lamp Life50K(Min.) (Hours)
Lamp Electrical :Input Voltage26.5/29.2/32.9V (Min./Typ./Max.)Input Current95/100mA (Typ./Max.)
Consumption8.32/9.38W (Typ./Max.)
Interface Features :Position-Physical TypeConnector
Interface Detail :BrandModelPin PitchPinsAmountPin Assignment
HRS
 		FH52-10S-0.5SH0.5 mm10 pins1 pcs
Backlight Driver :No


7.Chimei Innolux G104ACJ-L01 Carton Details

Package Box :AmountWeightSize (L*W*H)
18pcs / box10.1 Kgs490*350*320 mm


Post A Message

Your email address will not be published. Required fields are marked *

Name*
Your E-Mail*
Message*
High-quality Innolux 10.4 inch IPS TFT LCD Panel G104X1-L04 with 1024x768, LVDS Display G104XCE-LM1 10.4" XGA IPS LCD Panel 1024x768 LVDS | Original Innolux Industrial Display

Related Products

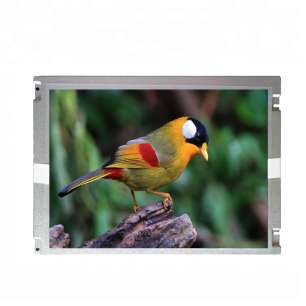

G104AGE-L02 10.4" SVGA LCD 800x60...

G104AGE-L02 10.4" SVGA LCD...

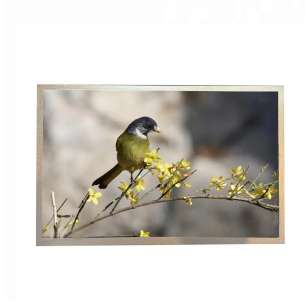

G104XCE-LM1 10.4" XGA IPS LCD Pa...

G104XCE-LM1 10.4" XGA IPS ...

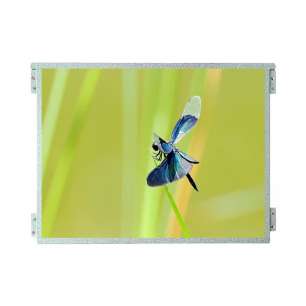

G104XCE-LH1 10.4inch IPS TFT LCD...
