LSA40AT9001 10.4" SVGA TFT LCD 800x600 | Industrial Display | Discontinued

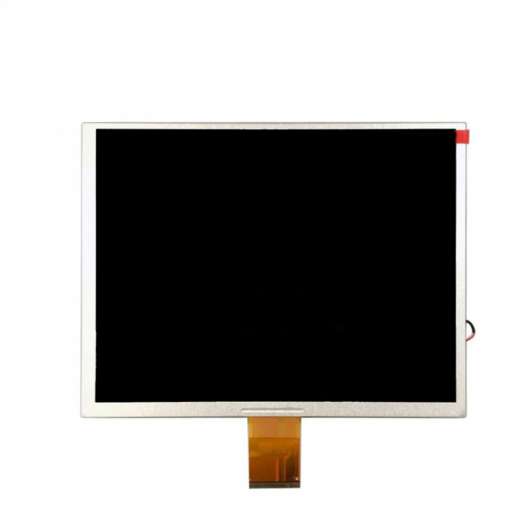

LSA40AT9001 10.4inch SVGA TFT LCD
LSA40AT9001 10.4inch SVGA TFT LCD
  • LSA40AT9001 10.4inch SVGA TFT LCD
  • LSA40AT9001 10.4inch SVGA TFT LCD

LSA40AT9001 10.4" SVGA TFT LCD 800x600 | Industrial Display | Discontinued

Find replacement LSA40AT9001 10 4" SVGA TFT LCD displays with 800x600 resolution Although discontinued,We have compatible alternative models to recommend

Model LSA40AT9001
Brand INNOLUX
Size 10.4inch
Resolution 800*600
Brightness 250cd/m²
Perspective 70/70/50/60 (Typ.)
Interface RGB
Operating Temp -10 ~ 50 °C
Production State Discontinued
Click For Price

1.Chimei Innolux  LSA40AT9001 Application Details

Basic Detail :Panel BrandINNOLUX/CHI MEIModel Name LSA40AT9001
Panel Typea-Si TFT-LCD , LCMAnother Name
Panel Size10.4”Designed ForDigital Photo Frame，Portable DVD Player
Maximum Ratings :OP Temperature-10 ~ 50 °CST Temperature-20 ~ 60 °C
RoHSRoHSVibration Level-
Features :WLED Backlight，6/8bit


2.Chimei Innolux  LSA40AT9001 Optical Details

Basic Information :Luminance250 cd/m²(Typ.)Contrast Ratio500 : 1 (Typ.) (Transmissive)
Good View at6 o'clockResponse Speed10/15 (Typ.)(Tr/Td) ms
Viewing Angle70/70/50/60 (Typ.)(CR≥10)Operating ModeTN, Normally White, Transmissive
Color Performance :ChromaticityX:0.310; Y:0.330Display Colors262K/16.2M (6-bit / 6-bit + Dithering)
Color Temperature6638KWhite Variation-
1931 Color Gamlt :NTSC Ratio51%sRGB70% coverage
Adobe RGB53% coverageDCI-P353% coverage
Rec.202038% coverageRemarkssRGB (Rec.709, BT.709), Rec.2020 (BT.2020)


3.Chimei Innolux  LSA40AT9001 Mechanical Details

Pixel Features :Number of Pixel800(RGB)*600, SVGAArrangementRGB Vertical Stripe
Dot Pitch (W*H)0.088*0.264 mmPixel Pitch (W*H)0.264*0.264 mm  [96PPI]
Physical Size :Active Viewing(mm)211.2(W)*158.4(H) mmBezel Area (mm)214.2(W)*162.5(H) mm
Outline Dim.(mm)228.4(W)*175.4(H) mm)Depth(mm)5.9±0.3 mm
Outline Features :Form StyleFlat RectangleOutline Shape
Aspect Ratio4:3 (W:H)OrientationLandscape type
Fixation :Without
Other Spec :Weight379g (Typ.)SurfaceHard coating (3H)


4.Chimei Innolux   LSA40AT9001 Electronics Details

Refresh Rate :60Hz
Reverse Scan :No
Time Controller (T-CON) :Need external T-CON


5.Chimei Innolux  LSA40AT9001  Interface Details

Signal Electrical :Signal InterfaceParallel RGB (1 ch, 6/8-bit)Logic Voltage0≤VIL≤0.3VCC; 0.7VCC≤VIH≤VCC
Signal Electrical :Voltage Input3.3/10.5V (Typ.)(VCC/AVDD)Current Input6/40mA (Typ.)(ICC/AIDD)
Interface Features :Position-Physical TypeFPC
Interface Detail :BrandModelPin PitchPinsAmountPin Assignment


0.5mm60pins1 pcs


6.Chimei Innolux   LSA40AT9001 Backlight Details

Lamp Features :Lamp TypeWLEDQuantity3S12PPositionEdge light type
Exchange
-		Lamp ShapeArrayLamp Life20K(Min.) (Hours)
Lamp Electrical :Voltage Supply9.6/10.5V (Typ./Max.)Current Supply240mA (Typ.)
Consumption2.3/2.52W (Typ./Max.)
Interface Features :Position-Physical Type
 Connector
Backlight Driver :No
Interface Detail :BrandModelPin PitchPinsAmountConfiguration
JSTBHSR-02VS-13.5 mm2 pins1 pcsBLE-2PINS-CA


7.Chimei Innolux  LSA40AT9001 Carton Details

Package Box :AmountWeightSize (L*W*H)
25pcs / box12.59±0.63 Kgs530*355*255 mm
