G104X1-L03 10.4" XGA Industrial TFT LCD 1024x768 | Innolux IPS TFT Module Supplier

G104X1-L03 10.4inch XGA Industrial LCD
G104X1-L03 10.4inch XGA Industrial LCD
  • G104X1-L03 10.4inch XGA Industrial LCD
  • G104X1-L03 10.4inch XGA Industrial LCD

G104X1-L03 10.4" XGA Industrial TFT LCD 1024x768 | Innolux IPS TFT Module Supplier

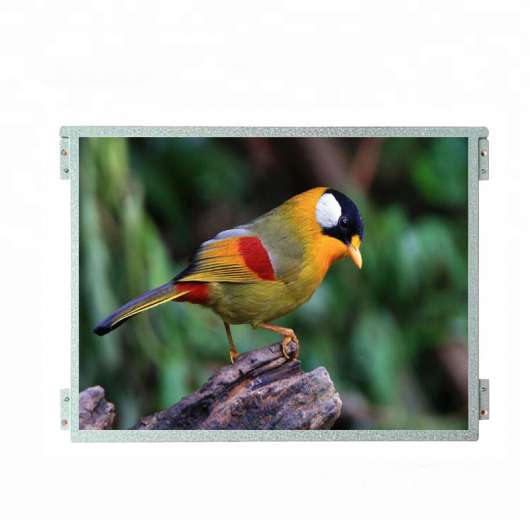

Original Chimei Innolux G104X1-L03 10 4-inch IPS TFT LCD module 1024x768 XGA resolution, 350cd m² brightness, temperature (-20~70°C), LVDS interface 1000:1 contrast ratio for medical imaging, CNC machine vision, and control panels RoHS CE compliant, anti-glare surface Global shipping Request OEM volume pricing

Model G104X1-L03
Brand Chimei Innolux
Size 10.4inch
Resolution 1024*768
Brightness 350cd/m²
Perspective 88/88/88/88 (Typ.)
Interface LVDS
Operating Temp -20 ~ 70 °C
Production State Discontinued
Click For Price

1.Chimei Innolux 10.4inch TFT LCD G104X1-L03 Application Details

Basic Detail :Panel BrandINNOLUX/CHI MEIModel NameG104X1-L03
Panel Typea-Si TFT-LCD , LCMAnother Name
Panel Size10.4”Designed ForIndustrial
Maximum Ratings :OP Temperature-20 ~ 70  °C ST Temperature-25 ~~ 70  °C
RoHSRoHSVibration Level1.5G (14.7 m/s² )
Features :WLED Backlight，180°;Reverse,With LED Driver, 6/8 bit,Matte


2.Chimei Innolux 10.4inch TFT LCD G104X1-L03 Optical Details

Basic Information :Luminance350 cd/m² (Typ.)Contrast Ratio1000 : 1 (Typ.) (Transmissive)
Good View atSymmetryResponse Speed14/11 (Typ.)(Tr/Td) ms
Viewing Angle88/88/88/88(Typ.)(CR≥10)Operating ModeSuper MVA, Normally Black, Transmissive
Color Performance :ChromaticityX:0.313; Y:0.329Display Colors262K/16.2M (6-bit / 6-bit + FRC)
Color Temperature6485KWhite Variation1.40 (Max.)(5 points)
1931 Color Gamlt :NTSC Ratio53%sRGB73% coverage
Adobe RGB55% coverageDCI-P355% coverage
Rec.202039% coverageRemarkssRGB (Rec.709, BT.709), Rec.2020 (BT.2020)


3.Chimei Innolux 10.4inch TFT LCD G104X1-L03 Mechanical Details

Pixel Features :Number of Pixel1024(RGB)*768, XGAArrangementRGB Vertical Stripe
Dot Pitch (W*H)0.0685*0.2055 mmPixel Pitch (W*H)0.2055*0.2055 mm  [123PPI]
Physical Size :Active Viewing(mm)210.4(W)*157.8(H) mmBezel Area (mm)215.4(W)*161.8(H) mm
Outline Dim.(mm)238.6(W)*175.8(H) mmDepth(mm)6.0/7.97 (Typ./Max.) mm
Outline Features :Form StyleFlat RectangleOutline Shape
Aspect Ratio4:3(W:H)OrientationLandscape type
Fixation :Face mounting holes (4-Ф2.8) on left, right bezel
Other Spec :Weight280g (Typ.)SurfaceAntiglare


4.Chimei Innolux  10.4inch TFT LCD G104X1-L03 Electronics Details

Refresh Rate :60Hz
Reverse Scan :Yes (180°)


5.Chimei Innolux 10.4inch TFT LCD G104X1-L03 Interface Details

Signal Electrical :Voltage Input3.3V (Typ.)Current Input570±50mA
Consumption1.9W (Typ.)Signal InterfaceLVDS (1 ch, 6/8-bit)
Interface Features :Position-Physical TypeConnector
Interface Detail :BrandModelPin PitchPinsAmountPin Assignment
JAEFI-XB30SRL-HF111.0mm30pins1 pcsLVDS-30P1C8B-085A


6.Chimei Innolux 10.4inch TFT LCD G104X1-L03 Backlight Details

Lamp Features :Lamp TypeWLEDQuantity-PositionEdge light type
Exchange
-		Lamp Shape-Lamp Life30K(Min.) (Hours)
Lamp Electrical Input Voltage26V (Typ.)Input Current-
Interface Features :Position-Physical TypeConnector
Interface Detail :BrandModelPin PitchPinsAmount
Pin Assignment
ACES91208-010011.0 mm10 pins1 pcs
Backlight Driver :With LED Driver
Driver Electrical :Input Voltage12.0±5.0VInput Current0.3/0.35A (Typ./Max.)
Consumption3.1W (Typ.)


7.Chimei Innolux 10.4inch TFT LCD G104X1-L03 Carton Details

Package Box :AmountWeightSize (L*W*H)
18pcs / box8.3 Kgs465*362*314 mm
