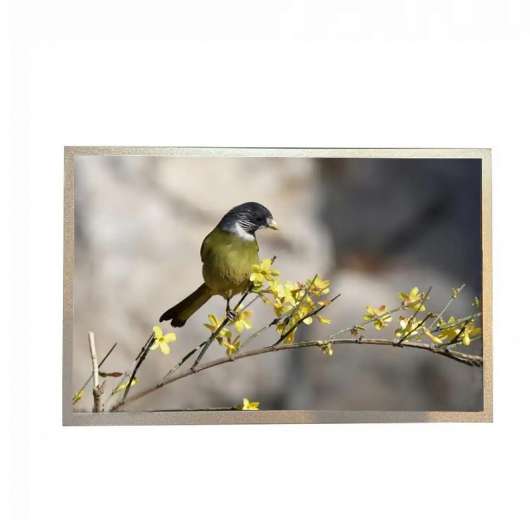

G104XCE-LM1 10.4" XGA IPS LCD Panel 1024x768 LVDS | Original Innolux Industrial Display

G104XCE-LM1 10.4` XGA IPS LCD Panel
G104XCE-LM1 10.4` XGA IPS LCD Panel
  • G104XCE-LM1 10.4` XGA IPS LCD Panel
  • G104XCE-LM1 10.4` XGA IPS LCD Panel

G104XCE-LM1 10.4" XGA IPS LCD Panel 1024x768 LVDS | Original Innolux Industrial Display

Original Innolux G104XCE-LM1 10 4-inch IPS TFT LCD panel 1024x768 XGA resolution, 500cd m² brightness, wide temperature (-20~70°C), LVDS interface Certified for medical imaging, industrial HMI, and aviation displays RoHS compliant, global shipping, datasheet Request OEM pricing

Model G104XCE-LM1
Brand Chimei Innolux
Size 10.4inch
Resolution 1024*768
Brightness 350cd/m2
Perspective 89/89/89/89
Interface LVDS
Operating Temp -20 ~ 70 °
Production State In Production
Click For Price

1.Innolux G104XCE-LM1 Application Details

Basic Info :Panel BrandINNOLUXPanel ModelG104XCE-LM1
Diagonal Size10.4"ApplicationIndustrial
Panel Typea-Si TFT-LCD , LCM

Reliability :
 		Operating Temp.-20 ~ 70 °CStorage Temp.-20 ~ 70 °C
RoHSRoHSVibration Rating1.5G (14.7 m/s²)
Specific Features :WLED Backlight，Life>=50K hours,With LED Driver,180°;Reverse，6/8bit，Matte


2.Innolux G104XCE-LM1 Mechanical Details

Pixel Features Pixel Format1024(RGB)*768, XGADot Pitch0.0685*0.2055 (H*V)
ConfigurationRGB Vertical StripePixel Pitch0.2055*0.2055 mm (H*V)  [123PPI]
Mechanical Size :Display Area210.4*157.8 mm (H*V)Outline Dim.215.4*161.8 mm (H*V)
Outline Dim.238.6*175.8 mm (H*V)Outline Depth6.0/7.97 (Typ./Max.) mm
Outline Features :Form FactorFlat RectangleOrientationLandscape type
Aspect Ratio4:3 (H:V)Shape Style
Holes & Brackets :Face mounting holes (4- Φ2.8) on left, right slugs
Other Features :Weight280/291g (Typ./Max.)SurfaceAntiglare


3.Innolux G104XCE-LM1 Optical Details

Basic Information :Brightness350 cd/m²  (Typ.)Contrast Ratio1000:1 (Typ.) (Transmissive)
Viewing Angle88/88/88/88 (Typ.)(CR≥10)Optical ModeAAS, Normally Black, Transmissive
Viewing DirectionSymmetryResponse Time13/12 (Typ.)(Tr/Td) ms
Color Performance :ChromaticityWx:0.313; Wy:0.329Color Numbers262K/16.2M (6-bit / 6-bit + FRC)
Color Temperature6485KUniformity1.25/1.39 (Typ./Max.)(5 points)
1931 Color Gamut :NTSC Ratio72%sRGB95% coverage
Adobe RGB73% coverageDCI-P375% coverage
Rec.202054% coverageRemarkssRGB (Rec.709, BT.709), Rec.2020 (BT.2020)


4.Innolux G104XCE-LM1 Electronics Details

Frame Frequency :60Hz
Reverse Scan :Yes (180°)
Power Consumption :6.17W (Typ.)


5.Innolux G104XCE-LM1 Backlight Details

Back-light Features :Lamp TypeWLEDAmount-Life Time50K(Min.) (Hours)
Replacement-Lamp Shape-PositionEdge light type
Interface Features :TypeConnectorPosition-Lamp DriverWith LED Driver
Interface Detail :BrandModelPin PitchPinsAmountConfiguration
ACES91208-01001-H011.0 mm10 pins1 pcs
Driver Electrical :Voltage Input12±1.2VCurrent Input0.38/0.44A (Typ./Max.)
Consumption4.5/5.3W (Typ./Max.)


6.Innolux G104XCE-LM1 Interface Detail

Signal Systerm :LVDS (1 ch, 6/8-bit)
Logic Voltage-
Signal Electrical :Voltage Input3.3V (Typ.)
Current Input505/610mA (Typ./Max.)
Consumption1.67/2.01W (Typ./Max.)
Interface Features :TypeConnector
Position-
Connector Detail :BrandModelPin PitchPinsAmountConfiguration
STMMSCK2407P30D1.0 mm30 pins1 pcsLVDS-30P1C8B-085A


7.Innolux G104XCE-LM1 Carton Details

Package Carton :AmountNet WeightCarton Size (L*W*H)
24 pcs / box13.1 Kgs490*350*320 mm
