AUO G104STN01.6 10.4" 800x600 High-Brightness LCD Display | -30°C~80°C Wide Temp.

G104STN01.6
G104STN01.6
  • G104STN01.6
  • G104STN01.6

AUO G104STN01.6 10.4" 800x600 High-Brightness LCD Display | -30°C~80°C Wide Temp.

AUO G104STN01 6 10 4-inch LCD (800×600) with -30°C~80°C operation 800nits sunlight-readable performance in construction machinery, oil rig monitors, and desert solar systems Request samples and bulk quotations

Model G104STN01.6
Brand AUO
Size 10.4inch
Resolution 800*600
Brightness 700cd/m2
Perspective 80/80/60/70 (Typ.)
Interface LVDS
Operating Temp -30 ~ 80 °C

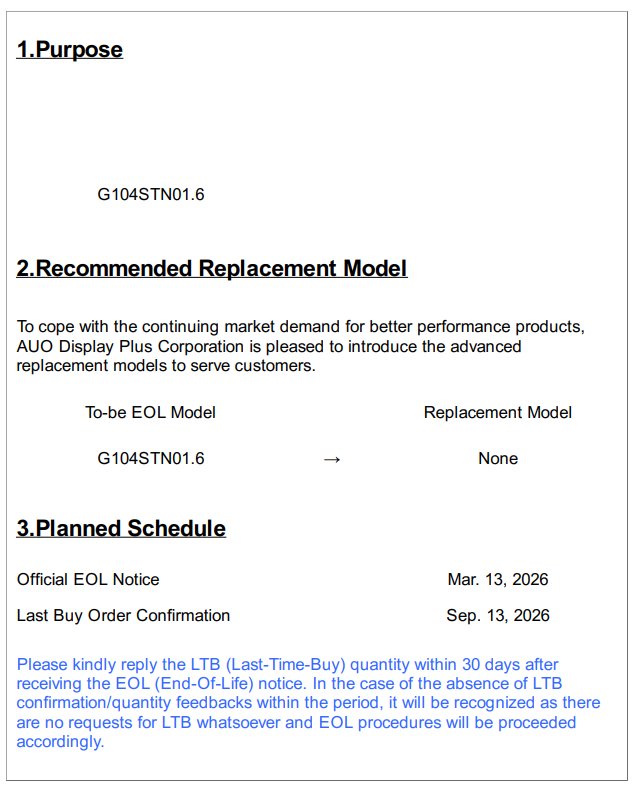

Production State In Production
Click For Price

1.AUO G104STN01.6 Application Details

Basic Info :Panel BrandAUOPanel ModelG104STN01.6
Diagonal Size10.4"ApplicationIndustrial
Panel Typea-Si TFT-LCD , LCM

Reliability :
 		Operating Temp.-30 ~ 80 °CStorage Temp.-30 ~ 80 °C
RoHS StateRoHSVibration Rating1.5G (14.7 m/s²)
Specific Features :Wide Temperature,Hight Brightness，WLED Backlight，Life>=50K hours,With LED Driver，180°Reverse ，6/8 bit，Matte



2.AUO G104STN01.6 Mechanical Details

Pixel Features :Pixel Format800(RGB)*600, SVGADot Pitch0.088*0.264 mm (H*V)
ConfigurationRGB Vertical StripePixel Pitch0.264*0.264 mm (H*V)  [96PPI]
Mechanical Size :
 		Display Area211.2*158.4 mm (H*V)Outline Dim.215.4*161.9 mm (H*V)
Outline Dim.227.3*177.5 mm (H*V)Outline Depth6.4/9.3 (Typ./Max.) mm
Outline Features :
 		Form FactorFlat RectangleOrientationLandscape type
Aspect Ratio4:3 (H:V)Shape Style
Holes & Brackets :Side mounting holes (4-M3) on left, right bezel
Other Features :Weight294g (Typ.)SurfaceAntiglare, Hard coating (3H)


3.AUO G104STN01.6 Optical Details

BrightnessBrightness700 cd/m² (Typ.)Contrast Ratio800:1(Typ.) (Transmissive)
Viewing Angle80/80/60/70 (Typ.)(CR≥10)Optical ModeTN, Normally White, Transmissive
Viewing Direction-Response Time10/5 (Typ.)(Tr/Td) ms
Color Performance :ChromaticityWx:0.307; Wy:0.329Color Numbers 262K/16.2M (6-bit / 6-bit + FRC)
Color Temperature
 		6813KUniformity1.33/1.54 (Typ./Max.)(5 points)
1931 Color Gamut :NTSC Ratio53%sRGB 73% coverage

Adobe RGB		55%
coverage		DCI-P355% coverage
Rec.202039% coverageRemarkssRGB (Rec.709, BT.709), Rec.2020 (BT.2020)


4.AUO G104STN01.6 Electronics Details

Frame Frequency :60Hz
Reverse Scan :Yes (180°)


5.AUO G104STN01.6 Backlight Details

Back-light Features :Lamp TypeWLEDAmount6S3PLife Time50K(Min.) Hours
ReplacementNoLamp Shape3 stringsPositionEdge light type (Bottom side)
Lamp Electrical :

 		Voltage Input18.6/20.4V (Typ./Max.)Current Input65mA (Typ.)
Consumption3.627W (Typ.)
Interface Features :TypeConnectorPosition-Lamp DriverWith LED Driver
Interface Detail :BrandModelPin PitchPinsAmountConfiguration
JAEFI-S6P-HFE1.25 mm6 pins1 pcs
Driver Electrical :Voltage Input12.0±1.2VCurrent Input0.33/0.363A (Typ./Max.)
Consumption3.96/4.356W (Typ./Max.)



6.AUO G104VTN01.0 Interface Details

Signal Systerm :LVDS (1 ch, 6/8-bit)
Logic Voltage-
Signal Electrical :Voltage Input3.3V (Typ.)
Current Input320mA (Typ.)
Consumption1.5W (Max.)
Interface Features :TypeConnectorPosition-
Connector Detail :BrandModelPin PitchPinsAmountConfiguration
JAEFI-SEB20P-HFE1.25 mm20 pins1 pcs




7.AUO G104STN01.6 Carton Details

Package Box :AmountSize (L*W*H)Weight
20 pcs / box450*275*320 mm8.48 Kgs
