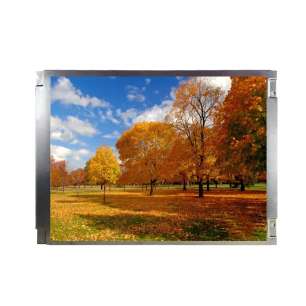

G104VN01 V1 AUO 10.4" 640x480 VGA LCD Panel | 450nits 20-Pin LVDS Industrial Display

G104VN01 V1
G104VN01 V1
  • G104VN01 V1
  • G104VN01 V1

G104VN01 V1 AUO 10.4" 640x480 VGA LCD Panel | 450nits 20-Pin LVDS Industrial Display

Original AUO G104VN01 V1 10 4-inch TFT LCD Panel (640×480 VGA) with 450nits brightness & 20-pin LVDS interface IP54-rated for HMI, control cabinets, and legacy industrial systems Request anti-static coating options and bulk OEM pricing

Model G104VN01 V1
Brand AUO
Size 10.4inch
Resolution 640*480
Brightness 450cd/m²
Perspective 80/80/60/80 (Typ.)
Interface LVDS
Operating Temp -30 ~ 85 °C
Production State In Production
Click For Price

1.AUO  G104VN01 V1 Application Details

Basic Detail :ManufacturerAUOModel Name  G104VN01 V1
Panel Typea-Si TFT-LCD , LCMModel AliasG104VN01 V.1
Panel Size10.4inchDesigned ForIdustrial
Maximum Ratings :OP Temperature-30 ~ 85  °C ST Temperature-30 ~ 85  °C
RoHSRoHSVibration Level1.5G (14.7 m/s²)
Features :Wide Temperature，Lamp Repaceable，WLED Backlight，Life>=50K hours,With LED Driver,180°Reverse， Matte


2.AUO   G104VN01 V1  Optical Details

Basic Information :Luminance450 cd/m² (Typ.)Contrast Ratio700:1 (Typ.) (Transmissive)
Good View at6 o'clockResponse Speed20/10 (Typ.)(Tr/Td) ms
Viewing Angle


80/80/60/80 (Typ.)(CR≥10)

Operating ModeTN, Normally White, Transmissive
Color Performance :ChromaticityWx:0.310; Wy:0.330Support Color262K/16.2M (6-bit / 6-bit + FRC)
Color Temperature6638KWhite Variation1.33 (Max.)(5 points)
1931 Color Gamlt :NTSC Ratio44%sRGB62% coverage
Adobe RGB46% coverageDCI-P346% coverage
Rec.202033% coverageRemarkssRGB (Rec.709, BT.709), Rec.2020 (BT.2020)


3.AUO   G104VN01 V1 Mechanical Details

Pixel Features :Number of Pixel640(RGB)*480, VGAArrangementRGB Vertical Stripe
Dot Pitch(W×H)0.110*0.330 mmPixel Pitch(W*H)0.330*0.330 mm  [76PPI]
Physical Size :Active Viewing(mm)211.2(H) *158.4(V)Outline Dim.(mm)243(W)*176.6(H) mm
Bezel Area(mm)214.8(H) *162.4(V)Depth(mm)8.5±0.5 mm
Outline Features :Form StyleFlat RectangleShape Style
Aspect Ratio4:3(H:V)OrientationLandscape type
Mounting :

Face mounting holes (1-Φ3.4, 3-R1.7) on left, right bezel

Other Spec :Weight390g (Typ.)TreatmentAntiglare, Hard coating (3H)


4.AUO  G104VN01 V1 Electronics Details

Refresh Rate :60Hz
Reverse Scan :Yes (180°)
Total Consumption :5.4W (Typ.)


5.AUO   G104VN01 V1 Interface Detail

Signal Electrical :Voltage Supply3.3V (Typ.)Current Supply280mA (Typ.)
Consumption0.924W (Typ.)Signal InterfaceLVDS (1 ch, 6/8-bit)
Interface Features :Position-TypeConnector
Interface Detail :BrandModelPitchPinsQuantityPin Configuration
STMMSB24013P20HA1.0 mm20 pins1 pcsLVDS-20P1C8B-080A


6.AUO   G104VN01 V1 Backlight Details

Lamp Features :Lamp TypeWLEDQuantity8S2PPositionEdge light type (Bottom side)
ExchangeReplaceableLamp Shape2 stringsLamp Life50K(Min.) (Hours)
Lamp Electrical :Input Voltage25.5/29.2V (Typ./Max.)Input Current80mA (Typ.)
Consumption4.1W (Typ.)
Interface Features :Position-Physical TypeConnector
Interface Detail :BrandModelPitchPinsQuantityPin Configuration
E&T3808K-F05N-02R1.25 mm5 pins1 pcs
Backlight Driver :With LED Driver
Driver Electrical :Voltage Supply10.8/12.0/12.6V (Min./Typ./Max.) Current Supply0.37A (Typ.)
Consumption4.44W (Typ.)



7.AUO  G104VN01 V1 Packing Details

Package Box :QuantityWeightBox Size
20 pcs / box10.0Kgs483*285*355 mm (L*W*H)
