G104SN03 V5 AUO 10.4" 800x600 Industrial LCD Display | IP65 20-Pin LVDS LCD Panel

G104SN03 V5 AUO 10.4` 800x600 Industrial LCD Display
G104SN03 V5 AUO 10.4` 800x600 Industrial LCD Display
  • G104SN03 V5 AUO 10.4` 800x600 Industrial LCD Display
  • G104SN03 V5 AUO 10.4` 800x600 Industrial LCD Display

G104SN03 V5 AUO 10.4" 800x600 Industrial LCD Display | IP65 20-Pin LVDS LCD Panel

Industrial touch screen G104SN03 V5: 10 4-inch 800×600 LCD with 20-pin LVDS Glove-compatible touch & -30°C~80°C operation for factory HMIs, medical devices, and outdoor kiosks Request samples

Model G104SN03 V5
Brand AUO
Size 10.4inch
Resolution 800*600
Brightness 230 cd/m²
Perspective 80/80/80/80
Interface 80/80/60/70 (Typ.)
Operating Temp -20 ~ 70 °C
Production State Upcoming shutdown
Click For Price

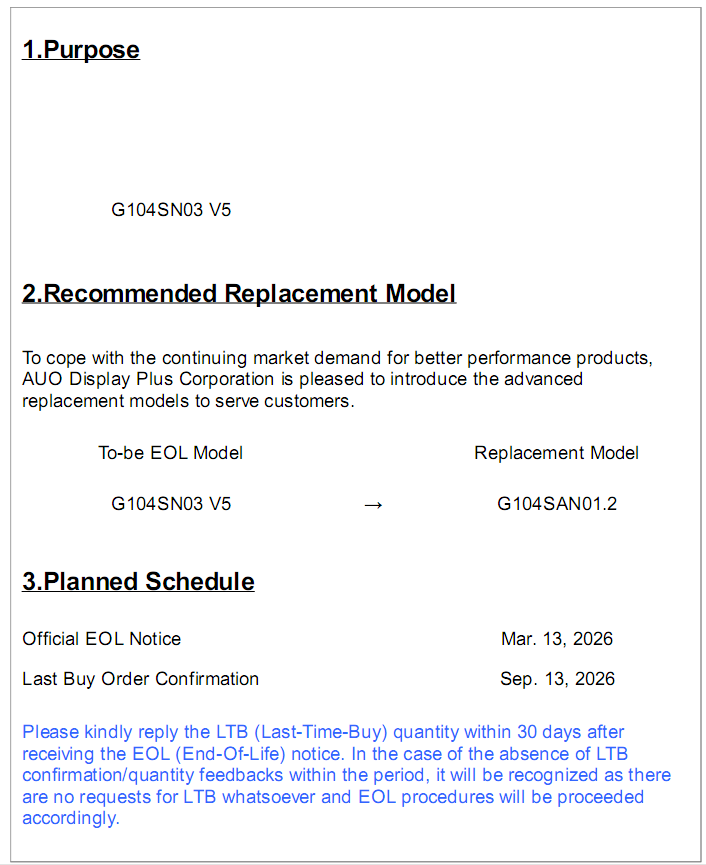

G104SN03 V5 is about to be discontinued.  Official EOL notice :2026/03/13,  Last Buy Order Confirmation : 2026/09/13. Customers are requested to prepare in advance. The compatible alternative model is G104SAN01.2.

1.AUO G104SN03 V5 Application Details
Basic Detail :ManufacturerAUOModel NameG104SN03 V5
Panel Typea-Si TFT-LCD , LCMModel AliasG104SN03 V.5
Panel Size10.4inchDesigned ForIdustrial
Maximum Ratings :OP Temperature-20~ 70 °CST Temperature-20 ~ 70  °C
RoHSRoHSVibration Level

1.5G (14.7 m/s²)

Features :Lamp Repaceable，With LED Driver，180°Reverse，6/8bit，WLED Backlight , Matte

2.AUO G104SN03 V5 Optical Details
Basic Information :Luminance

230 cd/m² (Typ.)

Contrast Ratio500:1 (Typ.) (Transmissive)
Good View at-Response Speed10/5 (Typ.)(Tr/Td) ms
Viewing Angle80/80/60/70 (Typ.)(CR=10)Operating ModeTN, Normally White, Transmissive
Color Performance :ChromaticityWx:0.310; Wy:0.330Support Color262K/16.2M (6-bit / 6-bit + FRC)
Color Temperature6638KWhite Variation1.33/1.54 (Typ./Max.)(5 points)
1931 Color Gamlt :NTSC Ratio50%sRGB69% coverage
Adobe RGB52% coverageDCI-P352% coverage
Rec.202037% coverageRemarkssRGB (Rec.709, BT.709), Rec.2020 (BT.2020)


 3.AUO G104SN03 V5 Mechanical Details

Pixel Features :Number of Pixel800(RGB)*600, SVGAArrangementRGB Vertical Stripe
Dot Pitch(W×H)0.088*0.264 mm (H*V)Pixel Pitch(W×H)0.264*;0.264 mm (H*V)  [96PPI]
Physical Size :Active Viewing(mm)211.2*158.4 mm (H*V)Outline Dim.(mm)236(W)*176.9(H) mm
Bezel Opening(mm)214.8(W)*162.0(H) mmOverall Depth(mm)5.7±0.3 mm
Outline Features :Form StyleFlat RectangleShape Style
Aspect Ratio4:3 (H:V)OrientationLandscape type
Mounting :Face mounting holes (4-Φ2.5, 2-R1.25) on left, right bezel
Other Detail :Weight280g (Typ.)TreatmentAntiglare, Hard coating (3H)

4.AUO G104SN03 V5 Electronics Details
Refresh Rate :60Hz
Reverse Scan :Yes (180°)
Total Consumption :3.50W (Typ.)


 5.AUO G104SN03 V5 Interface Detail

Signal Electrical :Input Current320mA (Typ.)Input Voltage3.3V (Typ.)
Consumption1.06W (Typ.)Signal InterfaceLVDS (1 ch, 6/8-bit)
Logic Voltage for Signals :-
Interface Features :Position-Physical TypeConnector
Interface Detail :BrandModelPin PitchPinsAmountPin Assignment
STMMSB24013P20HA1.0mm20pins1 pcsLVDS-20P1C8B-080A

6.AUO G104SN03 V5 Backlight Details
Lamp Features :Lamp TypeWLEDQuantity3S12PPositionEdge light type
ExchangeReplaceableLamp Shape3 stringsLamp Life30K(Typ.) (Hours)
Driver Electrical :Voltage Input26.0/29.2V (Typ./Max.)Current Input25mA (Typ.)
Consumption1.95W (Typ.)
Interface Features :Position-TypeConnector
Backlight Driver :With LED Driver
Driver Electrical :Input Voltage10.8/12.0/12.6V (Min./Typ./Max.)Input Current0.2A (Typ.)
Consumption2.44W (Typ.)
Interface Detail :BrandModelPin PitchPinsAmountConfiguration
E&T3808K-F05N-02R1.25mm5 pins1 pcs


 7.AUO G104SN03 V5 Packing Details

Package Box :AmountSize (L*W*H)Weight
30pcs / box448*402*350mm13.0 Kgs
G104SN03 V5 Product End of Life Notice.png
