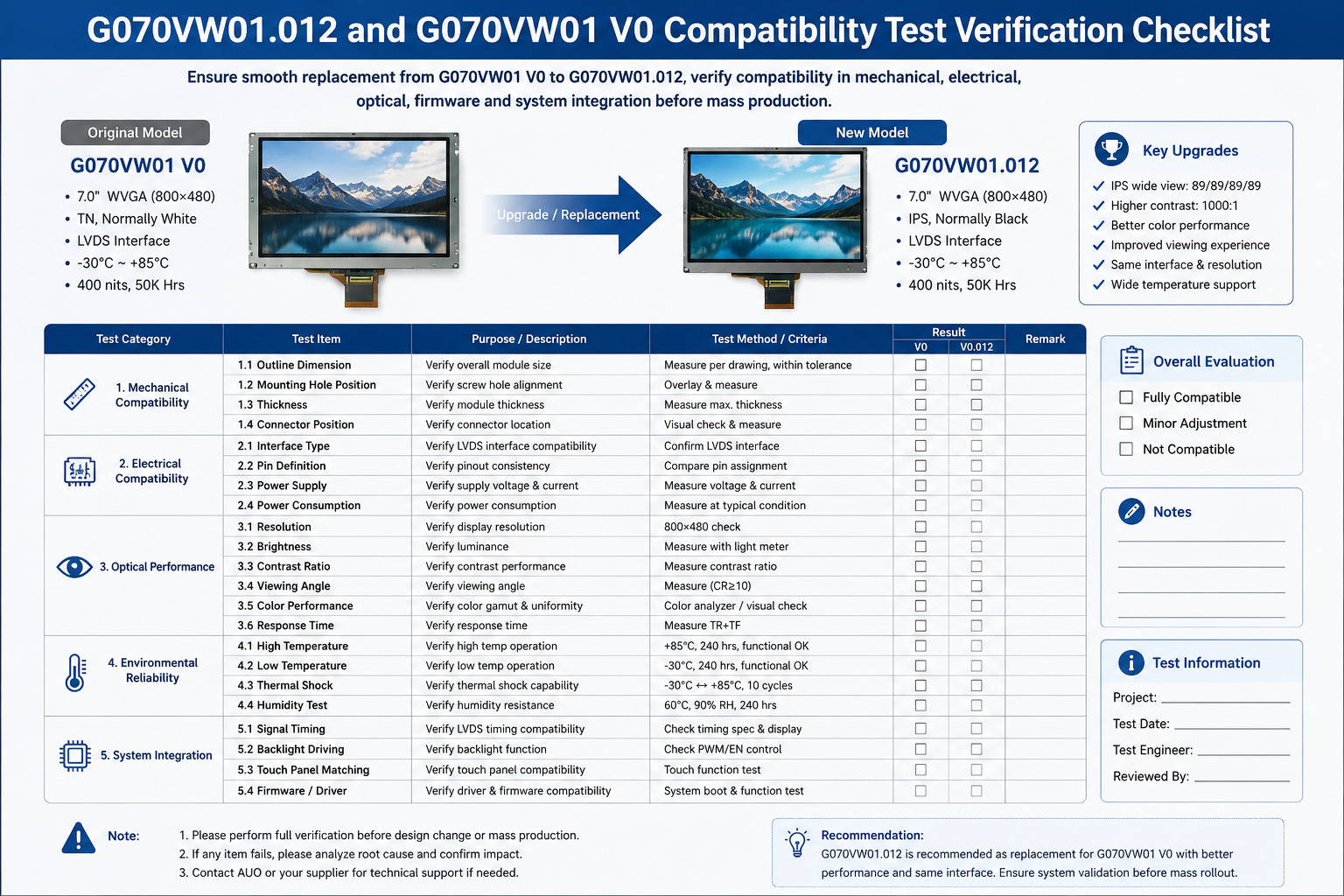

G070VW01.012 and G070VW01 V0 Compatibility Test Verification Checklist
G070VW01 012 is an official upgraded replacement model for G070VW01 V0, which is fully compatible with V0 in terms of structure and interface definition and can be directly used as a substitute G070VW01 012 will be mass-produced in 2023 and is currently
1.Overview of Compatibility between G070VW01.012 and G070VW01 V0
According to official and agent information from AU, G070VW01.012 is an official upgraded replacement model for G070VW01 V0, which is fully compatible with V0 in terms of structure and interface definition and can be directly used as a substitute. G070VW01.012 will be mass-produced in 2023 and is currently in mass production status.
Core compatibility conclusion
Compatibility item | Conclusion | Explanation |
Mechanical dimensions | Fully compatible | Consistent external dimensions and installation hole positions |
Electrical interface | Fully compatible | LVDS 20-pin， Pin definitions are the same |
Backlight driver | Fully compatible | 4-pin terminal, with consistent voltage/current specifications |
Software-driven | Fully compatible | The initialization code does not need to be modified |
Optical performance | ⬆ Upgrade | The initialization code does not need to be modified |
Tip: G070VW01.012 is 100% backward compatible with V0 in terms of mechanical structure, electrical interface, and drive timing, and can be directly replaced.
2. Compatibility Testing Verification Checklist
2.1 Mechanical compatibility verification
Verification project | Verification content | G070VW01 V0 Specification | G070VW01.012 Specification | Compatibility | Acceptance Criteria |
Overall dimensions | Measure length and width dimensions | 170×111 mm | 170×111 mm | Same | Within a tolerance of ± 0.5mm |
Thickness verification | Measure maximum thickness | 7.5 mm | 7.5±0.5 mm | Same | ≤8.0 mm |
Display area | Check the size of AA area | 152.4×91.44 mm | 152.4×91.44 mm | Same | exactly the same |
Viewport | Check the size of VA area | 155.2×94.24 mm | |||
mounting hole | Check the installation method | No installation hole | No installation hole | Same | Consistent structural fixation method |
FPC position/length | Check the direction and length of FPC lead out | 20 pin terminal | Easy to connect | ||
Complete machine assembly | Actual installation onto the device casing | Compatible | No interference, normal fastening | ||
Weight impact | Weighing comparison | 165g | 165-175g | basically the same | Difference ≤ 10g |
Conclusion: The structure of G070VW01.012 is completely consistent with V0, and there is no need to modify the structural mold.
2.2 Electrical compatibility verification
Verification project | verification content | G070VW01 V0 Specification | Specification | compatibility | Acceptance Criteria |
Signal interface type | Verify the major categories of interfaces | LVDS single channel | LVDS (1 ch) | Same | - |
Number of interface pins | Check the number of pins | 20 pins | 20 pins | Same | - |
Pin definition | Verify the order of signal arrangement | LVDS-20P1C8B-140A | LVDS-20P1C8B-140A | Same | Exactly the same |
Connector model | Check the terminal model | Hirose DF19LA-20P-1H | Hirose DF19LA-20P-1H | Same | - |
input voltage (VDD) | Measure working voltage | 3.3V | 3.3V | Same | 3.3V±5% |
Input current | Measure the current when displaying normally | 230/250mA | - | Basically consistent with the prototype number | |
power-up sequence | Check the requirements for power on/off timing | - | Meet the requirements of the specification sheet | - | No abnormalities |
LVDS clock frequenc | Measure clock signal | - | typical value | - | Compliant with specifications |
Power consumption comparison | Compare the power consumption of new and old models | - | 2.6W | - | Basically consistent or lower |
ESD protection | Static discharge test | - | - | - | ± 8kV air discharge |
Conclusion: The pin definitions and electrical signals of G070VW01.012 and V0 are completely consistent, and can be directly plugged and used without modifying the motherboard circuit.
2.3 Backlight compatibility verification
Verification project | Verification content | G070VW01 V0 Specification | G070VW01.012 Specification | Compatibility | Acceptance Criteria |
Backlight interface type | Verify connector specifications | Terminal | Terminal | Same | - |
Number of backlight interface pins | Check the number of pins | - | 4 pins | - | - |
Definition of Backlight Interface | Confirm pin sequence | - | En Deli 3808K-F04N-02R | - | Positive and negative poles are correct |
Backlight voltage | Measure LED driving voltage | - | 12.0V | - | Compliant with specifications |
Backlight current | Measure LED driving current | - | 240mA | Compliant with specifications | |
Backlight control | Verify brightness adjustment function | - | Support PWM dimming | Adjust smoothness | |
Backlight driver | Confirm if integration is possible | Including LED driver | Including LED driver | Same | - |
Conclusion: The backlight interface and electrical specifications are completely consistent, and the original backlight driver circuit can be directly driven.
2.4 Display performance validation
verification project | Verification content | G070VW01 V0 Specification | Specification Specification | Change | Acceptance Criteria |
Resolution verification | Display test pattern | 800×480 | 800×480 | Same | Full screen normal display |
Brightness test | Measure the center brightness using a luminance meter | 400 cd/m² | 400 cd/m² | Same | ≥380 cd/m² |
Uniformity of brightness | Measure brightness values at 5/9 points | - | 1.30 Max. | - | No obvious dark corners |
Contrast test | Light dark block contrast test | 500:1 | 1000:1 | ⬆ Increase by 100% | Darker dark field |
Visual angle verification | Observe from all angles, including top, bottom, left, and right | 80 ° in all directions | 89 ° full field of view | ⬆ significantly improve | From the side, it appears colorless and biased |
color reproduction | Display RGB solid color and color images | 262K color | 262K/16.7M | ⬆ Support FRC | Accurate color, no color spots |
Response time | Display dynamic images | 30ms | 20/10ms | ⬆ Enhance | No trailing shadows, no residual images |
Grayscale representation | Display 256 level grayscale bars | 6-bit | 6-bit+FRC | ⬆Smoother | Smooth transition, no faults |
Color temperature | Measure white color temperature | - | 6638K | - | Meet the standard |
Flip function | Test horizontal/vertical flipping | support | support | Same | Normal Flip |
Conclusion: G070VW01.012 outperforms V0 in terms of viewing angle, contrast, response time, and color depth, while maintaining the same brightness and resolution.
2.5 Software Driver Compatibility Verification
Verification project | verification content | G070VW01 V0 Requirement | G070VW01.012 Requirement | Compatibility | Acceptance Criteria |
Initialization code | Use the original driver code to light up the screen | - | Same timing sequence | Compatible | Normal display |
Time series parameters | Check VSYNC/HSYNC/DE timing sequence | LVDS standard | LVDS standard | Same | Meet the requirements of the specification sheet |
Refresh rate | Verify screen refresh rate | 60Hz | 60Hz | Same | No flicker |
Color depth setting | 6-bit vs 8-bit pattern | 6-bit | Supports 6/8-bit switchable | Backward compatible | Can display normally |
Flip Scan | Test the horizontal and vertical flipping functions | Support | Support | Same | Normal Flip |
Long-term stability | Continuous illumination for more than 72 hours | - | - | - | No flashing screen, no abnormalities |
Power on | Repeatedly turn on and off the machine 100 times | - | - | - | Display normally every time |
Temperature compensation | Verify display stability under wide temperature range | -30~85℃ | -30~85℃ | Same | No display abnormalities |
Conclusion: G070VW01.012 is fully compatible with the original model driver code and does not require software modification.
2.6 Reliability Verification
Verification project | Verification content | G070VW01 V0 Specification | G070VW01.012 Specification | Change | Acceptance Criteria |
Working at room temperature | Continuous operation at 25 ℃ environment | -30~85℃ | -30~85℃ | Same | No abnormalities within 72 hours |
High-temperature work | Working in an environment of 85 ℃ | Support | Support | Same | No abnormalities within 24 hours |
High-temperature work | Working in an environment of -30 ℃ | Support | Support | Same | No abnormalities within 24hours |
High and low temperature cycle | -30℃ ↔ Cycle at 85 ℃ for 10 times | - | - | - | No display abnormalities |
Anti vibration test | 1.5G vibration test | - | 1.5G | - | No display abnormalities |
Backlight lifespan | Evaluate backlight attenuation | LED | 50K Min. | Better | Meets the 50K hour specification |
Conclusion: The reliability indicators of G070VW01.012 fully meet or exceed the original model, and the backlight life specifications are consistent or better.
2.Compatibility Test Summary Table
Comparison item | G070VW01 V0(Original model) | G070VW01.012(Upgraded version) | Compatibility | Upgrade Instructions |
Production Status | Discontinued | In mass production | Alternative relationship | Long term supply guarantee |
Size | 7.0inch | 7.0inch | Fully compatible | Same |
Resolution | 800×480 | 800×480 | Fully compatible | Same |
Display technology | TN | AHVA(IPS level) | ⬆ Upgrade | Core Upgrade |
Brightness | 400 cd/m² | 400 cd/m² | Same | Remain unchanged |
Contrast | 500:1 | 1000:1 | ⬆ Increase by 100% | More diverse levels of visuals |
Viewing angle | 80/80/80/80 | 89/89/89/89 | ⬆Full perspective | From the side, it appears colorless and biased |
Response time | 30ms | 20/10ms | ⬆enhance | Dynamic images are smoother |
Display color | 262K | 262K/16.7M (FRC) | ⬆ enhance | Smooth color transition |
Interface type | LVDS 20-pin | LVDS 20-pin | Fully compatible | Same |
Operating Temperature | -30~85℃ | -30~85℃ | Same | Wide temperature design |
Backlight lifespan | LED | 50,000 hour | Same | Long life |
Surface treatment | - | Foggy surface, 3H | - | anti-glare |
Overall dimensions | 170×111 mm | 170×111 mm | Fully compatible | Same |
Display area | 152.4×91.44 mm | 152.4×91.44 mm | Fully compatible | Same |
3.2 Comparison of interface pin definitions
Signal type | Pin number | V0 Definition | .012Definition | Compatibility |
Power supply | 1 | VDD | VDD | Same |
Power supply | 2 | VDD | VDD | Same |
Grounding | 3 | GND | GND | Same |
LVDS differential pair 0 | 4-7 | RX0±/RX1± | RX0±/RX1± | Same |
LVDS differential pair 1 | 8-11 | RX2±/CLK± | RX2±/CLK± | Same |
Grounding | 12-13 | GND | GND | Same |
Mode Selection | 14-16 | Pattern Control | Pattern Control | Same |
Grounding | 17-20 | GND | GND | Same |
Note: Please refer to the original factory specifications for specific pin definitions.
3.3 Backlight interface comparison
Signal type | Pin number | Specification | Compatibility |
LED Anode | 1-2 | 12V | Same |
LED Cathode | 3-4 | GND | Same |
3.4 Compatibility Quick Determination Table
Verify category | Compatibility | Do you need to modify it | Remark |
Mechanical structure | Fully compatible | No need to modify | Consistent size and installation |
PCB hardware | Fully compatible | No need to modify | Interface and pin consistency |
Software-driven | Fully compatible | No need to modify | Same timing sequence |
Backlight driver | Fully compatible | No need to modify | Consistent voltage and current |
Display effect | ⬆ Upgrade | - | Better perspective and contrast |
FPC wiring | Fully compatible | No need to modify | Same model connector |
4. Alternative switching precautions
4.1 No modifications required
✅ Mechanical structure/mold
✅ Motherboard hardware circuit
✅ Software driver program
✅ FPC cable/connector
✅ Install screws/fasteners
✅ Backlight driver circuit
✅ Shell opening/fixing method
4.2 Suggested verification items
Validation item | Explanation | Priority |
Display effect confirmation | After the full view upgrade, the side view effect is better. It is recommended to verify through actual experience | Middle |
Contrast difference | The contrast ratio has been increased from 500:1 to 1000:1, resulting in better dark field performance | Low |
Color depth | Supports FRC for smoother color transitions | Low |
Response time | Faster response time and smoother dynamic images | Low |
4.3 Optional Expansion
G070VW01.012 can be paired with the following optional accessories
Optional accessories | Explanation |
Resistive touch screen | 4-wire/5-wire resistive touch, supporting glove operation |
Capacitive touch screen | Multi touch, high transparency |
Customized FPC | FPC length and interface can be customized according to requirements |
4.4 Suggestions for Environmental Adaptability Verification
Application scenarios | Suggested verification project | Explanation |
Outdoor terminal | High and low temperature cycling, UV resistant | -30~80 ° C wide temperature verification |
Vehicle-mounted equipment | Vibration testing, wide temperature range | 1.5G seismic verification |
Medical equipment | Color accuracy and stability | SRGB color gamut verification |
Industrial control | Long term stability, ESD | 7 * 24-hour operation |
5.Frequently Asked Questions (FAQ)
Q1: Can G070VW01.012 directly replace G070VW01 V0?
Okay. The two have identical external dimensions, interface pin definitions, and electrical parameters, and can be directly replaced without the need to modify hardware and software.
Q2: What are the changes in display effect after replacement?
Significant improvement. The main upgrades include:
Viewing angle: increased from 80 ° to 89 ° full view angle (IPS level)
Contrast ratio: increased from 500:1 to 1000:1 (increased by 100%)
Response time: increased from 30ms to 20/10ms
Color Depth: Supports FRC for smoother color transitions
Q3: Will brightness and resolution change?
can't. The brightness and resolution remain completely consistent: 400cd/m ², 800 × 480.
Q4: Does the backlight driver need to be modified?
No need. The backlight interface (4-pin terminal, 12V) has the same specifications and can directly use the original backlight driver circuit.
Q5: Do software drivers need to be re debugged?
No need. Using the same LVDS single channel 8-bit signal format and original driver code.
Q6: Has there been any change in the working temperature range?
bring into correspondence with. The working temperature range is also -30 ℃~85 ℃.
Q7: What is the supply situation of this model?
G070VW01.012 is currently in mass production and has stable supply from authorized agents of AU.
6. Switching checklists
Serial number | Stage | Validation item |
1 | Preparation phase | Calculate the current inventory usage of G070VW01 V0 |
2 | Apply for G070VW01.012 sample | |
3 | Obtain and review the G070VW01.012 specification sheet (date sheet) | |
4 | Verification phase | Mechanical dimension verification |
5 | Interface compatibility verification | |
6 | Backlight driver verification | |
7 | Display performance validation | |
8 | Software driver verification | |
9 | Reliability verification (high and low temperature, vibration) | |
10 | Pilot production phase | Small batch trial production of 20~50 units |
11 | Production process validation | |
12 | Mass production phase | Formally switched to G070VW01.012 |
Switching suggestion time: It is recommended to complete the verification within 1-2 weeks after receiving the sample, complete the small-scale trial production in 3-4 weeks, and switch in batches from the 5th week onwards,
