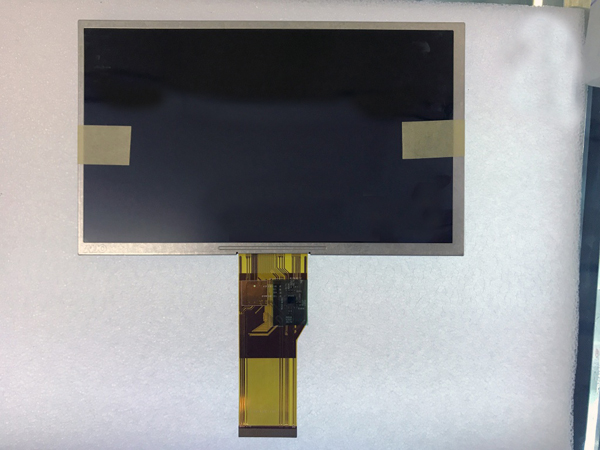

A070VTN06.4 Vehicle mounted and other application scenarios
AU 7-inch wide temperature car specific screen A070VTN06.4 and other application scenarios detailed explanationA070VT...
AU 7-inch wide temperature car specific screen A070VTN06.4 and other application scenarios detailed explanation
A070VTN06.4 is a 7-inch wide temperature LCD screen designed by AU Optronics (AUO) specifically for in car displays and industrial applications. Since its mass production in Q2 2018, with a wide temperature range of -30~80 ℃ and high brightness of 500nit, it has been widely applied and verified in fields such as vehicle information terminals, new energy charging piles, rail transit, and industrial HMI.
Compared with conventional 7-inch industrial screens, A070VTN06.4 has significant advantages in wide temperature range and backlight life, especially suitable for outdoor and vehicle equipment with strict requirements for low-temperature start-up and continuous operation.
Quick overview of core highlights
Characteristic | Parameter | Customer value |
Ultra wide temperature design | -30℃ ~ 80℃ | Stable operation in cold/high temperature environments to ensure normal start-up of outdoor equipment in northern winter |
High brightness | 500 cd/m² | Semi outdoor and sunny environment with clear visibility, no need for additional sunshades |
RGB standard interface | 50-pin Parallel RGB | Compatible with mainstream embedded platforms, convenient and fast integration |
Long backlight lifespan | 50000 hours | Supports 7 × 24-hour continuous operation, suitable for industrial and vehicle mounted long-term work scenarios |
Flip display support | Flip up/down, left/right | Flexible installation direction, adaptable to different equipment structural designs |
Industrial grade reliability | Foggy anti glare, 3H hardness | Reduce ambient light reflection and enhance outdoor visibility |
Stable mass production | Mass production in Q2 2018 | Long term stable supply, guaranteed lifecycle |
Detailed explanation of in car display applications
Why is A070VTN06.4 suitable for in car applications?
A070VTN06.4 is designed specifically for in car display scenarios and has the following core adaptation features:
Vehicle application scenarios | Adaptation characteristics | Technical Specification |
Vehicle mounted information terminal | Start at -30 ℃ low temperature | Under the outdoor parking environment in northern winter, the screen can still light up normally |
Bus/subway onboard screen | 500nit high brightness+wide temperature range | Clear display of information in high temperature carriages and strong light environments during summer |
Construction machinery vehicle mounted screen | Wide temperature+RGB interface | Adapt to temperature differences during outdoor operations and compatible with mainstream industrial control motherboards |
Agricultural machinery navigation terminal | Wide temperature+flip display | Flexible installation direction to adapt to different cockpit layouts |
Special vehicle display | High reliability+long lifespan | Meet the requirement of continuous operation for 7 × 24 hours |
Low temperature start-up advantage
Compared with ordinary 7-inch industrial screens (starting at -20 ℃), the A070VTN06.4's -30 ℃ ultra wide temperature lower limit provides significant advantages:
Comparison item | Ordinary 7-inch industrial screen | A070VTN06.4 | advantage |
Minimum operating temperature | -20℃ | -30℃ | Minimum operating temperature |
Outdoor Applicability in Northern Winter | Restricted in some areas | Applicable to all regions | Still usable in extremely cold northern regions |
Low temperature start-up reliability | Ordinary | High | Specialized wide temperature design |
Compared to other 7-inch models
1.Comparison of Same Series Selection
Model | Resolution | Brightness | Interface | Operating Temperature | Backlight lifespan | Characteristic | state |
A070VTN06.4 | 800×480 | 500 nits | RGB | -30~80℃ | 50K hour | Wide temperature and high brightness, specifically designed for car use | Mass production |
G070VTN01.0 | 800×480 | 300 nits | LVDS | -20~70℃ | 30K hour | Standard industrial version | Mass production |
G070VVN01.2 | 800×480 | 500 nits | LVDS | -20~70℃ | 30K hour | Highlighted version | Mass production |
G070VW01 V0 | 800×480 | 400 nits | LVDS | -20~70℃ | 30K hour | Medium high brightness version | Discontinued |
2.Core differentiation advantage
Comparative dimension | A070VTN06.4 advantage |
Operating Temperature | -30~80 ℃, 30% wider temperature range than ordinary industrial screens (-20~70 ℃) |
Backlight lifespan | 50000 hours, 67% longer than ordinary industrial screens (30000 hours) |
Interface type | RGB Parallel interface, compatible with more embedded platforms |
Application scenarios | Specially designed for in car use, with better low-temperature starting performance |
3. Suggestions for selection decisions
Project Requirements | Recommended Model | Reason |
Car/outdoor equipment | A070VTN06.4 | Wide temperature+high brightness+RGB interface |
Indoor industrial control (LVDS interface) | G070VTN01.0 | Cost-effective |
Indoor industrial control (high brightness requirement) | G070VVN01.2 | 500nit high brightness, LVDS interface |
Extreme cold environment (below -30 ℃) | Extreme cold environment (below -30 ℃) | Customized plan required |
Detailed explanation of application scenarios
1.In vehicle information terminal
Device Type | Application requirements | A070VTN06.4 Matching degree |
Car navigation entertainment system | High brightness, wide temperature range, RGB interface | exact match |
Bus/subway onboard information screen | Wide temperature range, long lifespan, high brightness | exact match |
Construction machinery cockpit display | -30 ℃ low temperature start-up and earthquake resistance | exact match |
Agricultural machinery navigation terminal | Wide temperature and flip display | exact match |
2.New energy charging station
Device Type | Application requirements | A070VTN06.4 Matching degree |
Outdoor charging station display screen | -30~80 ℃ wide temperature range, 500nit high brightness | exact match |
Photovoltaic inverter display | Wide temperature range and long lifespan | exact match |
3.rail transit
Device Type | Application requirements | A070VTN06.4 Matching degree |
Subway gate display screen | Wide temperature range and high reliability | exact match |
Light Rail Vehicle Information Screen | Wide temperature range, earthquake resistance, high brightness | exact match |
Railway signal terminal | Wide temperature range and long lifespan | exact match |
4.Industry HMI
Device Type | Application requirements | A070VTN06.4 Matching degree |
Industrial control operation panel | RGB interface, wide temperature range | exact match |
Automation equipment HMI | Long backlight lifespan, stable and reliable | exact match |
Medical equipment trolley terminal | Wide temperature, matte anti glare | exact match |
5. Outdoor self-service terminal
Device Type | Application requirements | A070VTN06.4 Matching degree |
Express cabinet display screen | Wide temperature range, high brightness | exact match |
Vending machine | Wide temperature range and long lifespan | exact match |
Outdoor information query terminal | High brightness, anti glare | exact match |
Interface and Integration Guide
1. Interface Definition
A070VTN06.4 adopts a 50 pin Parallel RGB interface, which is one of the commonly used display interfaces for industrial embedded platforms.
Interface type | Explanation |
Signal type | Parallel RGB (1 ch, 6/8-bit) |
Number of pins | 50 pins FPC |
Support color | 6-bit (262K colors)/8-bit (16.7M colors) |
synchronization method | DE (Data Enable) mode/HV mode |
2. Recommended main control platforms
This interface is compatible with mainstream embedded platforms and industrial control motherboards:
Platform type | Recommended model/series | Compatibility |
ARM Platform | RK3568、RK3588、A40i、NXP i.MX6 | High |
Industrial Control Motherboard | Various standard industrial control boards (supporting RGB interfaces) | High |
MCUPlatform | STM32 series (requiring FMC interface) | Need to evaluate |
Frequently Asked Questions (FAQ)
Q1: What is the difference between A070VTN06.4 and G070VTN01.0?
The two have the same size and resolution, but the core difference lies in:
Comparison item A070VTN06.4 G070VTN01.0
Brightness 500 nits 300 nits
Working temperature -30~80 ℃ -20~70 ℃
Interface RGB LVDS
Backlight lifespan 50000 hours 30000 hours
A070VTN06.4 has advantages in brightness, wide temperature range, and backlight life, making it more suitable for car and outdoor applications.
Q2: Is this screen suitable for low temperature environments?
Applicable. The working temperature range of A070VTN06.4 is -30 ℃ to 80 ℃, which can meet the normal start-up and operation requirements of on-board equipment in outdoor parking environments during winter in northern China.
Q3: Does the screen come with touch function?
A070VTN06.4 is a pure LCD screen (Open Cell) without touch function. Resistive touch screen or capacitive touch screen can be selected according to project requirements, providing a complete display+touch solution.
Q4: Which is better, RGB interface or LVDS interface?
Both have their own advantages:
RGB interface: compatible with more embedded platforms (STM32, Quanzhi, RK, etc.), flexible configuration
LVDS interface: Strong anti-interference ability, suitable for long-distance transmission
The choice of interface mainly depends on the interface configuration of the main control platform.
Q5: What is the supply cycle for this screen?
A070VTN06.4 is a mass-produced model from AU, available in stock, with 2-3 days for samples and 2-4 weeks for bulk orders.
Will this model be discontinued soon?
A070VTN06.4 has been in mass production since Q2 2018 and is still in normal production. AU has not issued a production halt announcement yet, and the supply is stable.
Contact Us
If you have any questions or need further technical support for A070VTN06.4, please feel free to contact us via email: market@IDT.com
