AU 5.7-inch G057VTN01.1 discontinuation, upgrade, replacement announcement
Due to the upcoming discontinuation of the original driver IC, the AU 5 7-inch wide temperature industrial LCD screen G057VTN01 1 has been officially announced as discontinued by the AU factory in Q4 2022 To assist customers who are currently using
AU 5.7-inch G057VTN01.1 discontinuation, upgrade, replacement announcement, and compatibility testing
Dear users and partners:
Thank you for your long-term trust and support in AUO's industrial LCD screen products.
Official Notice: Due to the upcoming discontinuation of the original driver IC, the AU 5.7-inch wide temperature industrial LCD screen G057VTN01.1 has been officially announced as discontinued by the AU factory in Q4 2022. To assist customers who are currently using or planning to develop related products in smoothly completing project transitions, we hereby issue this discontinuation notice, upgrade alternative solutions, and a complete compatibility testing and verification checklist.
1. Shutdown Overview
1.1 G057VTN01.1 Product Review

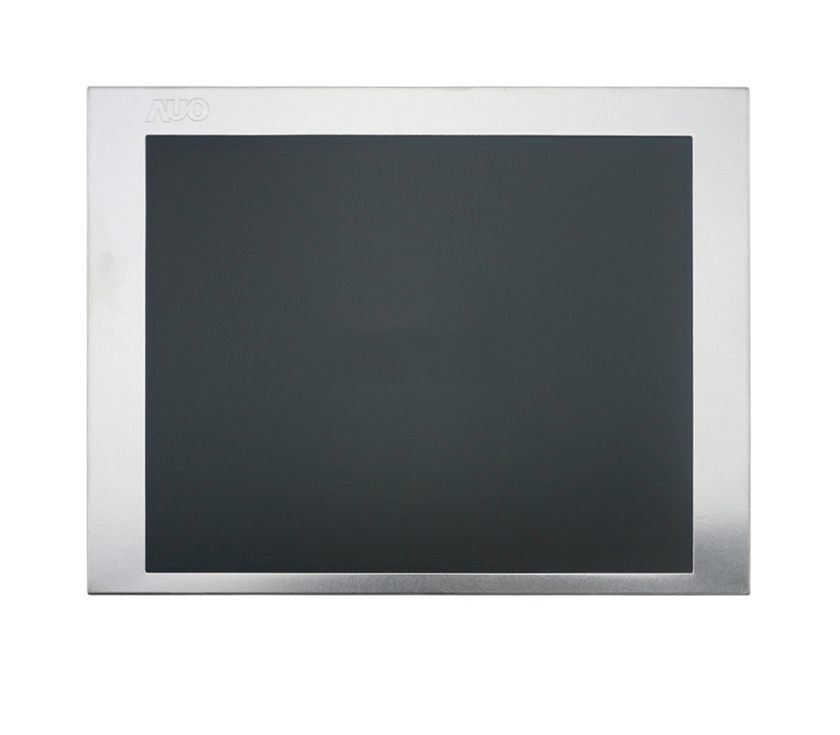

G057VTN01.1 is a 5.7-inch industrial grade LCD screen launched by AU in 2014. It has been steadily produced and supplied for over 8 years and is widely used in industrial HMI, industrial control equipment, vehicle displays, medical instruments and other fields.
G057VTN01.1 Core parameters:
Parameter item | Specification |
Size | 5.7inch |
Resolution | 640×480 (VGA) |
Brightness | 550 cd/m² |
Contrast | 800:1 |
Viewing angle | 80/80/70/70 (TN technology) |
Interface | CMOS (33 pins) |
Operating Temperature | -30℃ ~ 85℃ |
Backlight life | 50,000 hour |
1.2 G057VTN01.1 Shutdown Time Node
According to the production stoppage schedule of AU's original products:
Time node | Matter |
Q4 2022 | AU Original Factory officially announces discontinuation of G057VTN01.1 |
Q1 2023 | Last order window period |
Q2 2023 | G057VTN01.1 officially discontinued, final shipment |
Starting from Q2 2023 | G057VTN01.110 fully mass-produced, seamlessly connected |
Important notice: G057VTN01.1 has been officially discontinued and inventory is limited across all channels. For new projects, please use G057VTN01.110 directly. For old projects, it is recommended to evaluate and switch as soon as possible.
2. G057VTN01.1 Upgrade Replacement Model: G057VTN01.110
2.1 Explanation of Substitution Relationship
G057VTN01.110 is an officially designated upgraded replacement model for G057VTN01.1 by AU. Samples will begin in October 2022 and mass production will be achieved in Q2 2023, seamlessly integrating with the discontinuation of G057VTN01.1.
The dimensions, interfaces, and electrical signals of the two models are completely identical, allowing for direct replacement and use.
2.2 Comprehensive Comparison of Parameters
Comparison item | G057VTN01.1(Original model) | G057VTN01.110(Upgraded version) | Upgrade Instructions |
Production Status | ❌ Discontinued (from Q2 2023 onwards) | ✅ Stable supply during mass production | Long term supply guarantee |
Display technology | TN | AHVA(IPS level full view) | Core upgrade |
Viewing angle | 80/80/70/70 | 89/89/89/89(Full perspective) | ⬆ Significantly increased |
contrast | 800:1 (Typ.) | 1000:1 (Typ.) | ⬆ enhance25% |
Backlight life | 50,000 hour (Typ.) | 70,000 hour (Min.) | ⬆ extend40% |
Brightness | 550 cd/m² | 550 cd/m² | Remain unchanged |
Resolution | 640×480 | 640×480 | Remain unchanged |
Interface type | CMOS (33 pins) | CMOS (33 pins) | Fully compatible |
Operating Temperature | -30℃ ~ 85℃ | -30℃ ~ 85℃ | Remain unchanged |
Storage temperature | -30℃ ~ 85℃ | -30℃ ~ 85℃ | Remain unchanged |
Overall dimensions | 144×104.6 mm | 144×104.6 mm | Exactly the same |
Mounting hole | Rear mounting holes (4-Φ2.6) | Rear mounting holes (4-Φ2.6) | Exactly the same |
2.3 Detailed Explanation of Core Upgrade Highlights
Highlight 1: TN upgraded to AHVA, full view display
The original G057VTN01.1 used TN technology, with a narrow viewing angle (80/80/70/70), resulting in decreased contrast and color shift when viewed from the side. G057VTN01.110 has been upgraded to AHVA (AUO Advanced Wide Viewing Angle) technology, achieving an 89 ° full field of view that maintains color accuracy from any direction.
Customer value: When multiple people view the device screen together, everyone can have a consistent viewing experience, especially suitable for scenarios such as medical monitoring equipment and industrial control consoles.
Highlight 2: Contrast ratio increased to 1000:1
From 800:1 to 1000:1, the black color is darker, the white color is purer, and the visual depth is richer. For scenes that require displaying charts, X-ray images, monitoring screens, etc., the image details are clearer and more distinguishable.
Highlight 3: Backlight lifespan extended to 70000 hours
The backlight lifespan has been extended from 50000 hours to 70000 hours (minimum value). Taking the 24-hour uninterrupted operation of the equipment as an example:
Model | Backlight life | Theoretical usage days | Theoretical years of use |
G057VTN01.1 | 50,000 hour | About 2083 days | About 5.7 years |
G057VTN01.110 | 70,000 hour | About 2916 days | About 8.0 years |
Customer value: Maintenance cycle extended by about 40%, significantly reducing the operational costs and downtime risks for end users.
Highlight 4: Driver IC update ensures long-term supply
IC type | G057VTN01.1 | |
Gate IC | Old version (discontinued) | ST5043DA |
Source IC | Old version (discontinued) | ST589IDA |
The new IC ensures long-term stable supply of products and avoids screen downtime caused by IC shutdown again.
2.4 G057VTN01.110 Detailed specification parameters
Parameter classification | parameter item | Specification value |
Basic information | Panel Size | 5.7inch |
Resolution | 640(RGB)×480 (VGA) | |
Pixel density | 141 PPI | |
Display technology | AHVA， Constant black display, transmissive | |
Optical parameters | Brightness | 550 cd/m² (Typ.) |
Contrast | 1000:1 (Typ.) | |
Viewing angle | 89/89/89/89 (Typ.)(CR≥10) | |
Response time | 15/10 ms (Typ.)(Tr/Td) | |
Display color | 262K (6-bit) | |
Color temperature | 6485K | |
Mechanical structure | Display area | 115.2 × 86.4 mm |
Viewport | 118.2 × 89.4 mm | |
Overall dimensions | 144.0 × 104.6 × 12.8 mm (Max.) | |
Weight | 150/165g (Typ./Max.) | |
Surface treatment | matte，Hard coating (3H) | |
Mounting hole | Rear mounting holes (4-Φ2.6) | |
Electrical parameters | signal interface | CMOS (1 ch, 6-bit)，33 pins terminal |
input voltage | 3.3V (Typ.) | |
LED Drive | Including LED driver | |
LED driving voltage | 9.0/12.0/20.0V (Min./Typ./Max.) | |
Reliability | Operating Temperature | -30℃ ~ 85℃ |
Storage temperature | -30℃ ~ 85℃ | |
Backlight life | 70,000hour (Min.) | |
Vibration resistance | 1.5G (14.7 m/s²) | |
Packaging Information | Quantity per package | 60 pcs / box |
Package dimensions | 528 × 348 × 265 mm |
3. Compatibility Testing Verification Checklist
To ensure smooth replacement from G057VTN01.1 to G057VTN01.110, it is recommended to complete the following verification items before batch switching:
3.1 Mechanical compatibility verification
verification project | Verification content | Acceptance Criteria |
Overall dimensions | Measure the length and width dimensions of the screen | 144.0×104.6 mm(Consistent with prototype number) |
Thickness verification | Measure the thickness at the thickest point of the screen | ≤12.8 mm |
Mounting hole | Verify the positions and diameters of the four installation holes | 4-Φ2.6， Consistent position |
FPC length/position | Check the direction and length of FPC lead out | Consistent with the prototype number |
Complete machine assembly | Actual installation into the device casing | No interference, normal fastening |
Weight impact | Weighing comparison | 150-165g(Basically consistent with the prototype number) |
Conclusion: The structure of G057VTN01.110 is completely identical to that of G057VTN01.1, and there is no need to modify the structural mold
3.2 Electrical compatibility verification
verification project | verification content | Acceptance Criteria |
Definition of interface pins | Verify the pin sequence of the 33 pin terminal | exactly the same |
Working Voltage | Measure the actual working voltage | 3.3V(Consistent with prototype number) |
operating current | Measure the current when displaying normally | Basically consistent with the prototype number |
power-up sequence | Check the requirements for power on/off timing | Meet the requirements of the specification sheet |
Backlight driving voltage/current | Measure LED driver output | 9-20V / 35mA |
signal level | Check the CMOS signal level | 0-3.3V Logic level |
Power consumption comparison | Compare the power consumption of new and old models | Basically consistent or lower |
Conclusion: The pin definitions and electrical signals of G057VTN01.110 and G057VTN01.1 are completely consistent, and can be directly plugged and used without modifying the motherboard circuit
3.3 Display Performance Verification
Verification project | Verification content | Acceptance Criteria |
Resolution verification | Display test patterns (squares, text) | 640×480 normal display |
Brightness test | Measure the center brightness using a luminance meter | ≥550 cd/m² |
uniformity of brightness | Measure brightness values at 5/9 points | ≤1.33 Max. |
contrast test | Light dark block contrast test | ≥1000:1 |
Full perspective verification | Observe from all angles, including top, bottom, left, and right | Colorless within the range of 89 ° |
Color reproduction | Display RGB solid color and color images | Accurate color, no color spots |
Response time | Display dynamic images | No trailing shadows, no residual images |
Grayscale representation | Display 256 level grayscale bars | Smooth transition, no faults |
Conclusion: G057VTN01.110 outperforms the original model in terms of viewing angle and contrast, while maintaining the same brightness and resolution
3.4 Software Driver Compatibility Verification
verification project | verification content | Acceptance Criteria |
Initialization code | Use the original driver code to light up the screen | normal display |
timing parameters | Check VSYNC/HSYNC/DE timing sequence | Meet the requirements of the specification sheet |
Flip Scan | Test the horizontal and vertical flipping functions | Normal support |
long-term stability | Continuous illumination for more than 72 hours | No flashing screen, no abnormalities |
Power on/off test | Repeatedly turn on and off the machine 100 times | Display normally every time |
Conclusion: G057VTN01.110 is fully compatible with the original model driver code and does not require software modification.
3.5 Reliability Verification
Verification project | Verification content | Acceptance Criteria |
Working at room temperature | Continuous operation at 25 ℃ environment | No abnormalities within 72 hours |
High temperature work | Working in an environment of 85 ℃ | No abnormalities within 24 hours |
Low temperature operation | Working in an environment of -30 ℃ | No abnormalities within 24 hours |
high and low temperature cycle | -30℃↔85℃ Cycle 10 times | No display abnormalities |
Anti vibration test | 1.5G Vibration Test | No display abnormalities |
Backlight lifespan assessment | Continuous lighting to monitor brightness attenuation | Meets the 70K hour specification |
Conclusion: The reliability indicators of G057VTN01.110 fully meet or exceed the original model, and the backlight life is longer
4.Suggested alternative timeline switching
For projects still using G057VTN01.1, it is recommended to complete the switch according to the following rhythm:
Stage | Time | Action Suggestions |
immediately | Upon receiving notification | Calculate the current inventory usage of G057VTN01.1 and evaluate the switching time point |
Week 1-2 | Alternative verification | Apply for G057VTN01.110 sample and complete compatibility testing according to the above list |
Week 3-4 | Small-batch trial production | Trial production of 20-50 units to verify the production process flow |
Week 5-8 | batch switch | Formally switch to G057VTN01.110, until V1 inventory runs out |
5.Switching precautions
5.1 No modifications required
✅ Mechanical structure/mold
✅ Motherboard hardware circuit
✅ Software driver program
✅ FPC cable/connector
✅ Install screws/fasteners
5.2 Suggested verification items
⚠️ Backlight driver circuit: Confirm that the power supply capability meets the requirements of 9-20V/35mA
⚠️ Display effect: After upgrading the full view angle, the side view effect is better
⚠️ Power consumption: basically consistent with the prototype number, it is recommended to confirm through actual testing
5.3 Optional Expansion
G057VTN01.110 can be paired with:
Optional accessories | explanation |
resistive touch screen | 4-wire/5-wire resistive touch, supporting glove operation |
capacitive touch screen | Multi touch, high transparency |
Customized FPC | FPC length and interface can be customized according to requirements |
6. Frequently Asked Questions (FAQ)
Q1: Can G057VTN01.110 be directly replaced with G057VTN01.1? Do I need to change the software?
Okay. The pin definitions of the two are completely identical, and the driving timing is also completely compatible, without the need to modify software and hardware, and can be directly replaced.
Q2: Is the brightness of V110 the same as V1?
Exactly the same. Both have a typical brightness of 550 cd/m ².
Q3: Has the perspective of V110 really been upgraded?
Yes. V1 adopts TN technology with a viewing angle of 80/80/70/70; V110 upgraded to AHVA technology, with a viewing angle of 89/89/89/89 (full view).
Q4: How much longer is the backlight life of V110 compared to V1?
The lifespan of V1 backlight is 50000 hours, and upgrading V110 to 70000 hours (minimum) has extended it by about 40%.
Q5: G057VTN01.1 has been discontinued, can we still purchase inventory?
Some AU agents or spot markets may still have a small amount of G057VTN01.1 inventory, but the quantity is limited. Suggest using G057VTN01.110 directly for new projects and switching to old projects as soon as possible to avoid supply chain interruption risks.
What is the supply cycle and minimum order quantity for V110?
G057VTN01.110 is a mass-produced model from AU, with stable supply. Please consult customer service or sales representative for specific minimum order quantity and delivery time.
7.Contact Us
If you have any questions about the discontinuation of G057VTN01.1 or the upgrade and replacement of G057VTN01.110, please feel free to contact us through the following methods:
We will fully assist you in completing a smooth transition from G057VTN01.1 to G057VTN01.110 to ensure that your project production is not affected.
