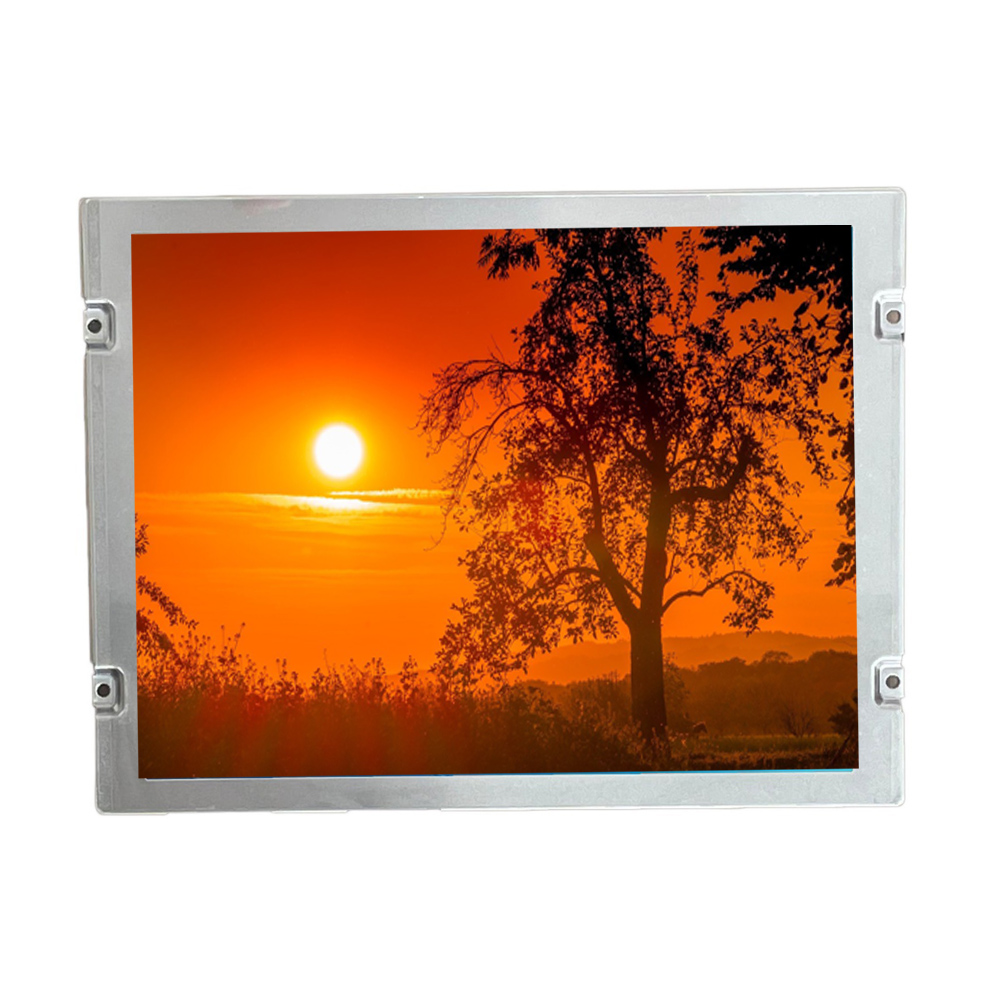

What is an eDP interface LCD screen?
The LCD screen with eDP interface is a LCD screen that uses the eDP (Embedded Display Port) standard as the signal transmission interface.The LCD screen with eDP interface is the preferred technology for internal display screens in modern high-performance
Earlier, several common interface models of LCD screens were introduced. Today, we will continue to provide a detailed explanation of eDP interface LCD screens.
Core definition: What is an eDP interface LCD screen?
Simply put, an eDP interface LCD screen is a LCD screen that uses the eDP (Embedded Display Port) standard as the signal transmission interface.
It is a display solution widely used in embedded devices such as laptops, tablets, all-in-one machines, and high-end industrial control screens.
Detailed decomposition explanation
I. What is eDP?
Full name: Embedded DisplayPort
Origin: It is a branch of the DisplayPort (DP) standard, developed by the Video Electronics Standards Association (VESA), specifically optimized for embedded systems with extremely demanding space, power, and wiring requirements, such as those inside laptops.
Core concept: Achieve high bandwidth and high-performance display signal transmission with fewer lines and simpler structure.
II. Main features of eDP interface LCD screen
Compared to its predecessor LVDS and the universal DP interface, eDP LCD screens have the following significant advantages:
1. High bandwidth and high resolution
The transmission bandwidth of eDP is much higher than traditional LVDS interfaces, and it can easily support 4K, 8K, and even higher resolution displays. At the same time, it can also support high refresh rates (such as 120Hz, 144Hz), which is very suitable for high-end gaming laptops and professional design screens.
2. Simplify wiring and make the structure more compact
The eDP interface uses differential signaling for transmission, with much fewer cables than LVDS. The mainstream eDP 1.4 standard only requires 4 pairs of main chain lines (Lanes) to transmit huge amounts of data, while LVDS may require dozens of lines. This makes the screen cable thinner and softer, which is beneficial for the lightweight design of the internal structure of the device.
3. High level of functional integration
EDP integrates more functions into interface protocols, with the most typical being:
Integrated touch screen signal: Touch signals can be transmitted through AUX channels without the need for separate wiring for the touch screen.
Integrated camera signal: AUX channel can also be utilized.
Panel self refresh technology: This is a very important energy-saving feature of eDP. When the screen is displaying statically (such as reading a document), the GPU can send frame cache data to the built-in cache of the display screen, and then enter a low-power state for the display screen to refresh on its own, significantly reducing the overall power consumption of the system and extending the battery life of the laptop.
4. Strong anti-interference ability
Adopting advanced signal encoding technology, it has strong resistance to electromagnetic interference, more stable signal transmission, and purer image quality.
5. Simplified power supply (optional)
The eDP specification includes panel power control, which can directly control the on/off and backlight brightness of the screen through interface commands, simplifying the power management circuit.
EDP vs. LVDS (its main predecessor)
To help you better understand the advantages of eDP, here is a simple comparison:
Feature | EDP (Embedded Display Port) | LVDS (Low Voltage Differential Signaling) |
Bandwidth/Resolution | Very high, easily supports 4K/8K, high refresh rate | Low, usually supports up to 1080P, requires multiple links at high resolutions |
Cable complexity | Low, the main link usually only requires 4 pairs of wires | High, requiring a large number of data and clock lines |
Power consumption | Low, supporting energy-saving technologies such as panel self refresh | High, without advanced energy-saving features |
Function integration | High, can integrate touch and camera signals | Low, requires additional interfaces and cables |
Application Era | Modern mainstream (widely used in laptops after 2010) | Traditional mainstream (commonly used in laptops before 2010) |
Conclusion: eDP can be seen as a modern and high-performance alternative to LVDS in the embedded field. | ||
Common Applications of eDP LCD Screen
Laptops: This is the core application area of eDP, and almost all modern laptops use eDP interfaces for their internal screens.
Tablets and 2-in-1 devices: due to their compact structure and low power consumption requirements.
High end all-in-one computers, such as iMacs.
Automotive display screens: central control screens, instrument panels, etc., require high stability and image quality.
Industrial control and medical displays: fields that require high reliability and high-performance displays.
High end portable display: designed for users who pursue high resolution and high refresh rate.
Summary
The LCD screen with eDP interface is the preferred technology for internal display screens in modern high-performance, lightweight electronic devices. It perfectly meets the demanding requirements of mobile devices for display performance, device size, and battery life, thanks to its advantages of high bandwidth, simplified wiring, low power consumption, and high integration. When you open a modern laptop, the flat ribbon cable connecting the screen and motherboard is almost certainly the eDP interface.
