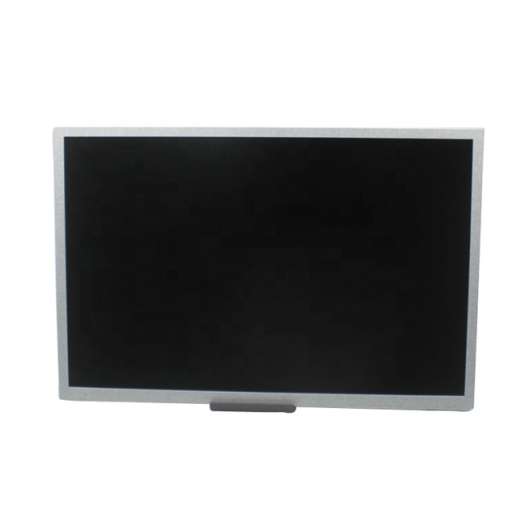

Discover the Tianma 12 8-inch P1280FHF1MAAA, a robust FHD industrial LCD module engineered for reliability in demanding environments This display delivers high brightness for clear visibility, features a stable LVDS interface, and operates across a wide temperature range Ideal for industrial HMI, transportation systems, and medical equipment Request a quote and technical datasheet today!
| Model | P1280FHF1MAAA |
| Brand | TIANMA |
| Size | 12.8inch |
| Resolution | 1920×1080 |
| Brightness | 800cd/m2 |
| Perspective | 88/88/88/88 |
| Interface | LVDS |
| Operating Temp | -20 ~ 70 °C |
| Production State | In Production |
Hangzhou IDT DISPLAY TECHNOLOGY CO.,LTD is the main agent of Youda AUO LCD screen, CHIMEI LCD screen, Mitsubishi LCD screen, INNOLUX LCD screen, Tianma LCD screen, touch LCD screen and other small ...
Read More
Price: Contact for latest real-time quotation. Final pricing depends on quantity, specification, customization requirements and exchange rate. MOQ: 1 piece.
Send your required quantity, application, delivery destination and technical requirements. Our display specialists will reply with availability and a suitable solution.
Request a QuoteTianma P1280FHF1MAAA 12.8-inch FHD Industrial LCD Module | High Brightness, LVDS Interface, Wide Temperature is supplied for industrial HMI, automation, medical, transportation and embedded display projects. Samples, volume procurement and replacement evaluation are supported.
Stock: Sufficient MOQ: 1 piece. Price changes with quantity and exchange rate; request the latest real-time quotation and lead time.
Confirm the complete model suffix, interface, resolution, connector, outline, brightness and operating temperature. Touch panel, optical bonding, controller board, cable and cover-glass customization can be evaluated.
Request Latest Price and Datasheet
Sufficient stock is available and MOQ is 1 piece. Final price and lead time are reconfirmed for the required quantity.
Send both model numbers and project requirements for engineering comparison.
1.TIANMA P1280FHF1MAAA Application Details
Basic Information :
Brand
TIANMA
Model
P1280FHF1MAAA
Type
a-Si TFT-LCD , LCM
Used For
Industrial，Outdoor High Brightness，Automotive Display
Screen Size
12.8 inch
Alias
Environment :
Storage Temp.
-40 ~ 90°C
Operating Temp.
-30 ~ 85 °C
RoHS
RoHS
Vibration Level
Typical Features :
Srgb ，Wide Temperature，High Brightness，WLED Backlight，Life≥50K hours，180°Reverse
2.TIANMA P1280FHF1MAAA Mechanical Details
Pixel Features :
Resolution
1920(RGB)×1080, FHD
Dot Pitch (W×H)
0.0492×0.1476 mm
Pixel Format
RGB Vertical Stripe
Pixel Pitch (W×H)
0.1476×0.1476 mm [172PPI]
Mechanical Size :
Active Viewing
283.392(W)×159.408(H) mm
Overall Dim.
292.69(W)×171.21(H) mm
Bezel Opening
284.392(W)×160.408(H) mm
Depth(mm)
7.15 (Typ.) mm
Outline Features :
Form Style
Flat Rectangle
Shape Style
Aspect Ratio
16:9 (W : H)
Orientation
Landscape type
Fixation :
Without
Other Spec :
Weight
447g (Typ.)
Surface
Hard coating
3.TIANMA P1280FHF1MAAA Optical Details
Basic Information :
Brightness
800 cd/m² (Typ.)
Contrast Ratio
1400:1 (Typ.) (Transmissive)
Viewing Angle
88/88/88/88 (Typ.)(CR≥10)
Optical Mode
SFT, Normally Black, Transmissive
Viewing Direction
Symmetry
Response Time
30 (Max.)(Tr+Td) (ms)
Color Performance :
Chromaticity
Wx:0.292; Wy:0.319
Support Color
16.7M (8-bit)
Color Temperature
7904K
White Variation
1.18/1.25 (Typ./Max.)(9 points)
1931 Color Gamut :
NTSC Ratio
73%
sRGB Coverage
99%
Adobe RGB Coverage
76%
DCI-P3 Coverage
76%
Rec.2020 Coverage
54%
Remarks
sRGB (Rec.709, BT.709), Rec.2020 (BT.2020)
Performance :
Outdoor Visibility
Sunlight Readable
Transmissivity
-
4. TIANMA P1280FHF1MAAA Electronics Details
Frame Rate :
60Hz
Reverse Scan :
Yes (180°)
5.TIANMA P1280FHF1MAAA Interface Details
Signal Electrical :
Input Current
86/19/1/3mA (Typ.)(ICC/AIDD/IGH/IGL)
Input Voltage
3.3/13/23/-8V (Typ.)(VCC/AVDD/VGH/VGL)
Consumption
578/889mW (Typ./Max.)
Signal Type :
LVDS (2 ch, 8-bit)
Interface Features :
Position
-
Type
FPC
Signal Interface :
Brand
Model
Amount
Pin Pitch
Pins
Pin Assignment
1 pcs
0.5 mm
60 pins
6.TIANMA P1280FHF1MAAA Backlight Details
Backlight Features :
Type
WLED
Amount
9S4P
Position
Edge light type
Replacement
-
Shape
4 strings
Life Time
50K(Typ.) Hours
Lamp Electrical :
Input Voltage
25.2/27.45/30.6V (Min./Typ./Max.)
Input Current
105/120mA (Typ./Max.)
Consumption
10.58/11.53/12.85W (Min./Typ./Max.)
Interface Features :
Position
-
Type
Included in signal interface
Lamp Driver
No
7.TIANMA P1280FHF1MAAA Packing Features
Package Type
Pcs/Package
Box/Package
Package LWH (mm)
G.W (kgs)
Volume (m³)
Inner box
18
1
550×385×225
11.95
0.0476
