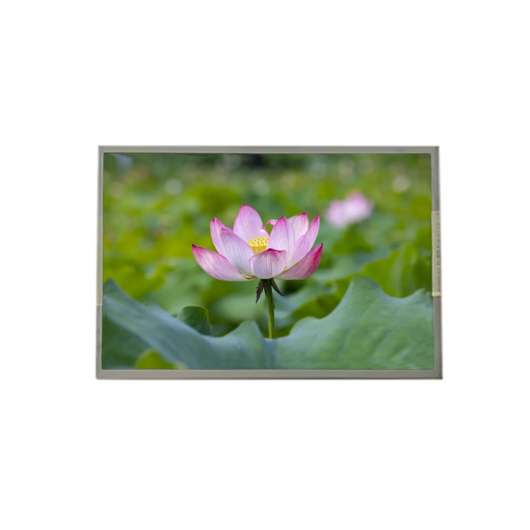

Discover the Tianma 12.3-inch P1230FHF1MA00, a high-performance FHD industrial LCD module from the reliable P-Series. Engineered for demanding environments, it features 1400 nits high brightness for sunlight readability, a stable LVDS interface, and a wide operating temperature range. This Basic-grade display offers long-term supply support (5-7 years) and is ideal for Industrial HMI, transportation systems, and outdoor applications. Request your quote and datasheet today!
| Model | P1230FHF1MA00 |
| Brand | TIANMA |
| Size | 12.3inch |
| Resolution | 1920*720 |
| Brightness | 1400cd/m2 |
| Perspective | 88/88/88/88 |
| Interface | LVDS |
| Operating Temp | -30 ~ 85 °C |
| Production State | In Production |
Hangzhou IDT DISPLAY TECHNOLOGY CO.,LTD is the main agent of Youda AUO LCD screen, CHIMEI LCD screen, Mitsubishi LCD screen, INNOLUX LCD screen, Tianma LCD screen, touch LCD screen and other small ...
Read More
1.TIANMA P1230FHF1MA00 Application Details
Basic Information :
Brand
TIANMA
Model
P1230FHF1MA00
Type
a-Si TFT-LCD , LCM
Used For
Industrial，Outdoor High Brightness
Screen Size
12.3 inch
Alias
Environment :
Storage Temp.
-40 ~ 95°C
Operating Temp.
-30 ~ 80 °C
RoHS
RoHS
Vibration Level
Typical Features :
Wide Temperature，Ultra High Brightness，WLED Backlight，Bar Display，180°Reverse
2.TIANMA P1230FHF1MA00 Mechanical Details
Pixel Features :
Resolution
1920(RGB)×720
Dot Pitch (W×H)
0.05075×0.15225 mm
Pixel Format
RGB Vertical Stripe
Pixel Pitch (W×H)
0.15225×0.15225 mm [166PPI]
Mechanical Size :
Active Viewing(W×H)
292.32×109.62 mm
Bezel Area
-
Outline Dim.(W×H)
305.92×123.62 mm
Depth(mm)
7.0/9.4 (Typ./Max.) mm
Outline Features :
Form Style
Flat Rectangle
Shape Style
Aspect Ratio
8:3 (W : H)
Orientation
Landscape type
Other Spec :
Weight
322g (Typ.)
Surface
Hard coating
3.TIANMA P1230FHF1MA00 Optical Details
Basic Information :
Brightness
1400 cd/m² (Typ.)
Contrast Ratio
1100:1 (Typ.) (Transmissive)
Viewing Angle
88/88/88/88 (Typ.)(CR≥10)
Optical Mode
SFT, Normally Black, Transmissive
Viewing Direction
Symmetry
Response Time
20 (Max.)(Tr+Td) (ms)
Dispaly Color :
Color Temperature
Color Amount
White color Chromaticity
7444K
16.7M (8-bit)
X:0.297; Y:0.326
1931 Color Gamut :
NTSC Ratio
74%
sRGB Coverage
97%
Adobe RGB Coverage
77%
DCI-P3 Coverage
77%
Rec.2020 Coverage
55%
Remarks
sRGB (Rec.709, BT.709), Rec.2020 (BT.2020)
Luminance Variation :
1.25/1.33 (Typ./Max.)(9 points)
Performance :
3D Type
-
Outdoor Visibility
Sunlight Readable
4. TIANMA P1230FHF1MA00 Electronics Details
Frame Rate :
60Hz
Power Consumption :
13.1W (Typ.)
Reverse Scan :
Yes (180°)
5.TIANMA P1230FHF1MA00 Interface Details
Signal Electrical :
Voltage Supply
3.3V (Typ.)
Input Current
-
Consumption
1.07/1.61W (Typ./Max.)
Signal Type :
LVDS (2 ch, 8-bit)
Interface Features :
Position
-
Type
Connector
Signal Interface :
Brand
Model
Amount
Pin Pitch
Pins
Pin Assignment
1 pcs
0.5 mm
50 pins
6.TIANMA P1230FHF1MA00 Backlight Details
Backlight Features :
Type
WLED
Amount
8S4P
Position
Edge light type
Replacement
-
Shape
4 strings
Life Time
30K(Typ.) Hours
Interface Features :
Position
-
Type
FPC
Lamp Driver
With LED Driver
Interface Detail
Brand
Model
Amount
Pin Pitch
Pins
Pin Assignment
1 pcs
0.5 mm
10 pins
7.TIANMA P1230FHF1MA00 Packing Features
Package Type
Pcs/Package
Box/Package
Package LWH (mm)
G.W (kgs)
Volume (m³)
Inner box
6
1
520×345×74
N/A
0.0133
Outer box
18
3
544×365×250
10.70
0.0496
