TM084SDHG02 8.4" TIANMA LCD Panel | 800×600 Industrial Display Module

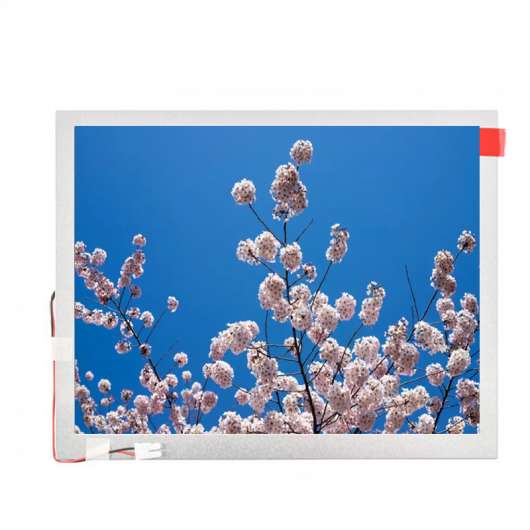

Original TIANMA TM084SDHG02 8.4-inch LCD screen

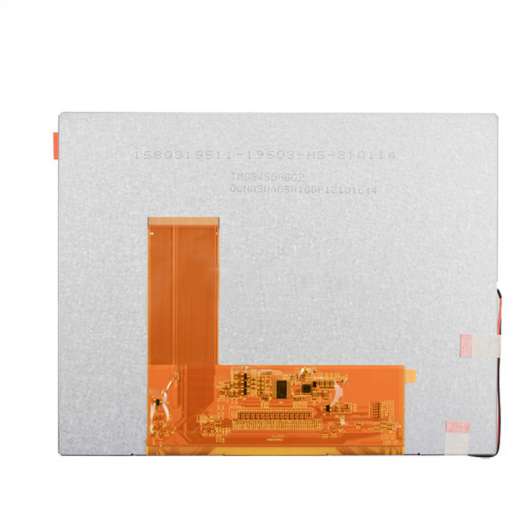

TIANMA TM084SDHG02 8.4-inch LCD screen with 800×600 resolution
  • Original TIANMA TM084SDHG02 8.4-inch LCD screen
  • TIANMA TM084SDHG02 8.4-inch LCD screen with 800×600 resolution

TM084SDHG02 8.4" TIANMA LCD Panel | 800×600 Industrial Display Module

Original TIANMA TM084SDHG02 8 4-inch LCD screen with 800×600 resolution 330cd m² High-quality industrial display module for embedded systems, medical devices & HMI applications Global shipping

Model TM084SDHG02
Brand TIANMA
Size 8.4inch
Resolution 800*600
Brightness 330cd/m²
Perspective 80/80/80/80
Interface RGB
Operating Temp -20 ~ 70 °C
Production State In Production
Click For Price

1.TIANMA 8.4"LCD Panel TM084SDHG02-01 Application Details

Basic Detail :Panel BrandTIANMAModel NameTM084SDHG021
Panel Typea-Si TFT-LCD , LCMAnother Name
Panel Size8.4”Designed ForIndustrial
Maximum Ratings :OP Temperature-20 ~ 70  °C ST Temperature-30 ~ 80 °C
RoHSRoHSVibration Level
Features :WLED Backlight， U/D,L/R Reverse，6/8bit，Matte


2.TIANMA 8.4"LCD Panel TM084SDHG02-01 Optical Details

Basic Information :Luminance330 cd/m²(Typ.)Contrast Ratio500:1 (Typ.) (Transmissive)
Good View at12 o'clockResponse Speed20 (Typ.)(Tr+Td) (ms)
Viewing Angle70/70/60/70 (Typ.)(CR≥10)Operating ModeTN, Normally White, Transmissive
Color Performance :ChromaticityWx:0.300; Wy:0.310
 		Display Colors262K/16.7M (6-bit / 6-bit + Dithering)
Color Temperature7525KWhite Variation1.33/1.43 (Typ./Max.)(9 points
1931 Color Gamlt :NTSC Ratio52%7672% coverage
Adobe RGB55% coverageDCI-P354% coverage
Rec.202039% coverageRemarkssRGB (Rec.709, BT.709), Rec.2020 (BT.2020)


3.TIANMA 8.4"LCD Panel TM084SDHG02-01 Mechanical Details

Pixel Features :Number of Pixel800(RGB)*600, SVGAArrangementRGB Vertical Stripe
Dot Pitch (W*H)0.071*0.213 (H*V)Pixel Pitch (W*H)0.213*0.213 (H*V)  [119PPI]
Physical Size :Active Viewing(mm)170.4(H) *127.8(V)Bezel Area (mm)173.0(H) *130.8(V)
Outline Dim.(mm)189.75(H) *149.4(V)Depth(mm)4.8 (Typ.)
Outline Features :Form StyleFlat RectangleOutline Shape
Aspect Ratio4:3(H:V)OrientationLandscape type
Holes & Brackets :Without
Other Spec :Weight245g (Typ.)SurfaceAntiglare


4.TIANMA 8.4"LCD Panel TM084SDHG02-01 Electronics Details

Refresh Rate :60Hz
Reverse Scan :Yes (U/D, L/R)
D-IC Detail :Built-in NT51008B + NT52002


5.TIANMA 8.4"LCD Panel TM084SDHG02-01 Interface Details

Signal Systerm :Parallel RGB (1 ch, 6/8-bit)Logic Voltage-
Signal Electrical :Voltage Input3.3V (Typ.)Current Input660mW (Typ.)
Interface Features :Position-Physical TypeFPC
Interface Detail :BrandModelPin PitchPinsAmountPin Assignment


0.5mm60pins1 pcs


6.TIANMA 8.4"LCD Panel TM084SDHG02-01Backlight Details

Lamp Features :Lamp TypeWLEDQuantity3S7PPositionEdge light type
Exchange
-		Lamp ShapeArrayLamp Life30K(Typ.) (Hours)
Lamp Electrical :Input Current180/225mA (Typ./Max.)Input Voltage9.6V (Typ.)
Consumption1.73W (Typ.)
Interface Features :Position-Physical TypeConnector
Backlight Driver :No
Interface Detail :BrandModelPitchPinsQuantityPinConfiguratio
JSTBHSR-02VS-13.5 mm2 pins1 pcsBLE-2PINS-A


7.TIANMA 8.4"LCD Panel TM084SDHG02-01 Carton Details

Package Carton :AmountNet WeightCarton Size (L*W*H)
36 pcs / box11.66±0.58 Kgs544*365*250 mm
