1.TIANMA P0840VGF1MA00 Application DetailsBasic Info :Panel BrandTIANMAPanel ModelP0840VGF1MA00Diagonal Size8.4"Applicatio...
| Model | P0840VGF1MA00 |
| Brand | TIANMA |
| Size | 8.4inch |
| Resolution | 640*480 |
| Brightness | 900cd/m2 |
| Perspective | 88/88/88/88 |
| Interface | CMOS |
| Operating Temp | -30 ~ 80 °C |
| Production State | In Production |
Hangzhou IDT DISPLAY TECHNOLOGY CO.,LTD is the main agent of Youda AUO LCD screen, CHIMEI LCD screen, Mitsubishi LCD screen, INNOLUX LCD screen, Tianma LCD screen, touch LCD screen and other small ...
Read More
1.TIANMA P0840VGF1MA00 Application Details
Basic Info :
Panel Brand
TIANMA
Panel Model
P0840VGF1MA00
Diagonal Size
8.4"
Application
Industrial
Panel Type
a-Si TFT-LCD , LCM
Model Alias
-
Reliability :
Operating Temp.
-30 ~ 80 °C
Storage Temp.
-30 ~ 85 °C
RoHS State
RoHS
Vibration Rating
2.0G (19.6 m/s²)
Specific Features :
Wide Temperature,Ultra High Brighness,WLED Backlight,Life≥70K hour， 180° Reverse, Matte
2.TIANMA P0840VGF1MA00 Mechanical Details
Pixel Features :
Pixel Format
640(RGB)×480, VGA
Dot Pitch
0.089×0.267 mm (H×V)
Configuration
RGB Vertical Stripe
Pixel Pitch (W×H)
0.267×0.267 mm (H×V) [95PPI]
Mechanical Size :
Active Viewing
170.88×128.16 mm (H×V)

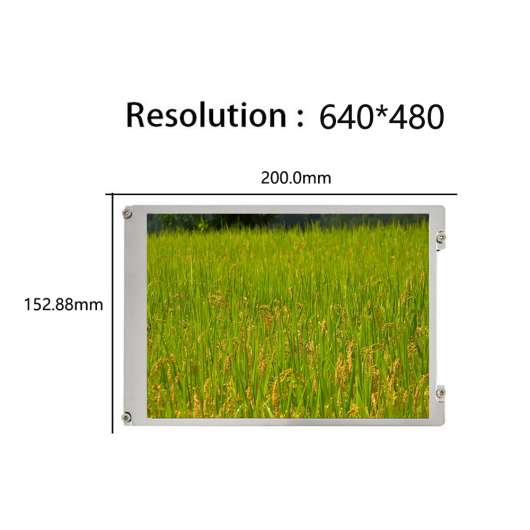

Outline Dim.
200×152.88 mm (H×V)
Overall Dim.
172.88×130.16 mm (H×V)
Outline Depth
8.2/9.1 (Typ./Max.) mm
Outline Features :
Form Factor
Flat Rectangle
Orientation
Landscape type
Aspect Ratio
4:3 (H:V)
Shape Style
Fixation :
Face mounting holes (4-Φ2.8) on left, right bezel
Other Features :
Weight
233g (Typ.)
Surface
Antiglare
3.TIANMA P0840VGF1MA00 Optical Details
Basic Information :
Brightness
900 cd/m² (Typ.)
Contrast Ratio
1300:1 (Typ.) (Transmissive)
Viewing Angle
88/88/88/88 (Typ.)(CR≥10)
Optical Mode
SFT, Normally Black, Transmissive
Viewing Direction
Symmetry
Response Time
30 (Typ.)(Tr+Td) (ms)
Color Performance :
Chromaticity
Wx:0.303; Wy:0.320
Color Numbers
262K (6-bit)
Color Temperature
7161K
White Uniformity
1.25 (Typ.)(9 points)
1931 Color Gamut :
NTSC Ratio
51%
sRGB
71% coverage
Adobe RGB
54% coverage
DCI-P3
53% coverage
Rec.2020
38% coverage
Remarks
sRGB (Rec.709, BT.709), Rec.2020 (BT.2020)
Dispaly Performance :
Outdoor Visibility
Sunlight Readable
Transmissivity
-
4.TIANMA P0840VGF1MA00 Electronics Details
Frame Frequency :
60Hz
Reverse Scan :
Yes (180°)
Time Controller (T-CON) :
Embedded T-CON
5.TIANMA P0840VGF1MA00 Backlight Details
Back-light Features:
Lamp Shape
4strings
Lamp Type
WLED
Life Time
70K(Min.) (Hours)
Replacement
-
Amount
7S5P
Position
Edge light type
Lamp Electrical :
Voltage Input
18/20.3/22.5V (Min./Typ./Max.)
Current Input
50/55mA (Typ./Max.)
Consumption
4.06W (Typ.)
Interface Features :
Type
Connector
Position
-
Lamp Driver
No
Interface Detail :
Brand
Model
Pin Pitch
Pins
Amount
Pin Assignment
STM
MS24011P8RA
1.0 mm
8 pins
1 pcs
BLE-8PINS-ACACACAC
6. TIANMA P0840VGF1MA00 Interface Details
Signal Systerm :
CMOS (1 ch, 6-bit)
Logic Voltage
0≤VIL≤0.2VCC; 0.8VCC≤VIH≤VCC
Signal Electrical :
Voltage Input
3.3V (Typ.)
Current Input
45mA (Typ.)
Consumption
148.5mW (Typ.)
Interface Features :
Type
Connector
Position
-
Connector Detail :
Brand
Model
Pin Pitch
Pins
Amount
Configuration
STM
MSAK24025P40
0.5 mm
40 pins
1 pcs
7.TIANMA P0840VGF1MA00 Carton Details
Package Type
Package Type
Box/Package
Package LWH (mm)
G.W (kgs)
Volume (m³)
Inner box
10
1
508×350×237
3.70
0.0421
