Original 8" 800x600 SVGA TFT LCD Display TM080SDH01 | A-Grade RGB 50-Pin

TM080SDH01 TIANMA 8-inch 800x600 SVGA TFT LCD panel
TM080SDH01 TIANMA 8-inch 800x600 SVGA TFT LCD panel
  • TM080SDH01 TIANMA 8-inch 800x600 SVGA TFT LCD panel
  • TM080SDH01 TIANMA 8-inch 800x600 SVGA TFT LCD panel

Original 8" 800x600 SVGA TFT LCD Display TM080SDH01 | A-Grade RGB 50-Pin

High-quality TIANMA 8-inch 800x600 SVGA TFT LCD panel with 50-pin RGB interface Original TM080SDH01 model, A-grade industrial display for kiosks, medical & embedded systems Request datasheet!

Model TM080SDH01
Brand TIANMA
Size 8.0inch
Resolution 800×600
Brightness 250 cd/m² (Typ.)
Perspective 70/70/50/70 (Typ.)
Interface RGB
Operating Temp -20 ~ 70 °C
Production State Discontinued
Click For Price

1.TIANMA 8" LCD Display TM080SDH01 Application Details

Basic Detail :Panel BrandTIANMAModel NameTM080SDH01
Panel Typea-Si TFT-LCD , LCMAnother Name
Panel Size8.0”Designed ForIndustrial
Maximum Ratings :OP Temperature-20 ~ 70  °CST Temperature-30 ~ 80 °C
RoHSRoHSVibration Level
Features :WLED Backlight， U/D,L/R Reverse，6/8bit，Matte


2.TIANMA 8" LCD Display TM080SDH01 Optical Details

Basic Information :Luminance250 cd/m² (Min.)Contrast Ratio500:1 (Typ.) (Transmissive)
Good View at12 o'clock Response Speed25 (Typ.)(Tr+Td) (ms)
Viewing Angle70/70/50/70 (Typ.)(CR≥10)Operating ModeTN, Normally White, Transmissive
Color Performance :ChromaticityWx:0.303; Wy:0.07Display Colors262K/16.2M (6-bit / 6-bit + Dithering)
Color Temperature7369KWhite Variation1.33/1.43 (Typ./Max.)(9 points)
1931 Color Gamlt :NTSC Ratio50%7670% coverage
Adobe RGB52% coverageDCI-P352% coverage
Rec.202037% coverageRemarkssRGB (Rec.709, BT.709), Rec.2020 (BT.2020)


3.TIANMA 8" LCD Display TM080SDH01 Mechanical Details

Pixel Features :Number of Pixel800(RGB)*600, SVGAArrangementRGB Vertical Stripe
Dot Pitch (W*H)0.0675*0.2025 mm (H*V)Pixel Pitch (W*H)0.2025*0.2025 mm (H*V)  [125PPI]
Physical Size :Active Viewing(mm)162*121.5 mm (H*V)Bezel Area (mm)164.8*124.3 mm (H*V)
Outline Dim.(mm)183*141 mm (H*V)Depth(mm)5.6±0.3
Outline Features :Form StyleFlat RectangleOutline Shape
Aspect Ratio4:3(H:V)OrientationLandscape type
Other Spec :Weight250gSurfaceAntiglare


4.TIANMA 8" LCD Display TM080SDH01 Electronics Details

Refresh Rate :60Hz
Reverse Scan :Yes (U/D, L/R)
Total Consumption :1.97/2.70W (Typ./Max.)
Time Controller (T-CON) :Embedded T-CON


5.TIANMA 8" LCD Display TM080SDH01 Interface Details

Signal Systerm :Parallel RGB (1 ch, 6/8-bit)Logic Voltage-
Signal Electrical :Voltage Input3.3/12.5/22.0/-7.0V (Typ.)(VCC/AVDD/VGH/VGL)Current Input3.39/17.75/0.28/0.29mA (Typ.)(ICC/AIDD/IGH/IGL)
Consumption241.4/381.5mW (Typ./Max.)
Interface Features :Position-Physical TypeFPC
Interface Detail :BrandModelPin PitchPinsAmountPin Assignment


0.5mm50pins1 pcsDRGB-50P1C8B-105A


6.TIANMA 8" LCD Display TM080SDH01 Backlight Details

Lamp Features :Lamp TypeWLEDQuantity3S9PPositionEdge light type
Exchange
-		Lamp ShapeArrayLamp Life20K(Typ.) (Hours)
Lamp Electrical :Input Current180/225mA (Typ./Max.)Input Voltage9.6/10.3 (Typ./Max.)
Consumption1.73/2.32W (Typ./Max.)
Interface Features :Position-Physical TypeConnector
Backlight Driver :No
Interface Detail :BrandModelPin PitchPins
 		AmountConfiguration
YEONHO35001HS-023.5 mm2 pins1 pcsBLE-2PINS-AC


7.TIANMA 8" LCD Display TM080SDH01 Carton Details

Package Carton :AmountNet WeightCarton Size (L*W*H)
48 pcs / box15.38±0.77 Kgs544*365*250 mm

Post A Message

Your email address will not be published. Required fields are marked *

Name*
Your E-Mail*
Message*
First Page TIANMA 8" IPS LCD Panel TM080SDHD02 - High Brightness Outdoor TFT Display

Related Products

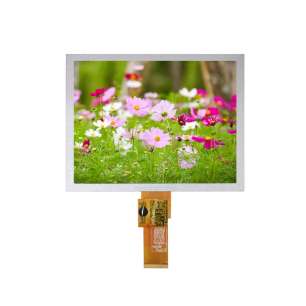

TIANMA 8" IPS LCD Panel TM080SDH...

TIANMA 8" IPS LCD Panel T...

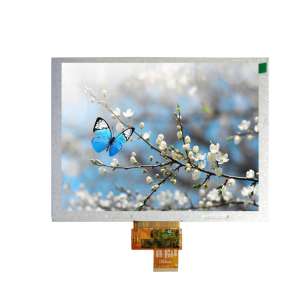

Tianma 8" XGA IPS TFT LCD Displ...
