Tianma 8" XGA IPS TFT LCD Display - TM080TDGP01 Industrial Standard

Tianma TM080TDGP01 8-inch IPS TFT display
Tianma TM080TDGP01 8-inch IPS TFT display
  • Tianma TM080TDGP01 8-inch IPS TFT display
  • Tianma TM080TDGP01 8-inch IPS TFT display

Tianma 8" XGA IPS TFT LCD Display - TM080TDGP01 Industrial Standard

Original Tianma TM080TDGP01 8-inch IPS TFT display with 1024×768 XGA resolution, 170° viewing angle & industrial-grade durability (-30°C~80°C) Ideal for medical, HMI and test equipment Request OEM pricing

Model TM080TDGP01
Brand TIANMA
Size 8.0inch
Resolution 1024*768
Brightness 580 cd/m² (Typ.)
Perspective 85/85/85/85 (Typ.)
Interface LVDS
Operating Temp -20 ~ 70 °C
Production State In Production
Click For Price

1.TIANMA 8"TFT LCD Display TM080TDGP01 Application Details

Basic Detail :Panel BrandTIANMAModel NameTM080TDGP01
Panel Typea-Si TFT-LCD , LCMAnother Name
Panel Size8.0”Designed ForIndustrial
Maximum Ratings :OP Temperature-20 ~ 70 °CST Temperature-30 ~ 80°C
RoHSRoHSVibration Level
Features :Hight Brightness，WLED Backlight， U/D,L/R Reverse


2.TIANMA 8"TFT LCD Display TM080TDGP01 Optical Details

Basic Information :Luminance580 cd/m² (Typ.)Contrast Ratio1200:1 (Typ.) (Transmissive)
Good View atSymmetryResponse Speed35 (Typ.)(Tr+Td) (ms)
Viewing Angle85/85/85/85 (Typ.)(CR≥10) Operating ModeSFT, Normally Black, Transmissive
Color Performance :ChromaticityWx:0.310; Wy:0.329Display Colors16.7M (8-bit)
Color Temperature6647K White Variation1.18/1.25 (Typ./Max.)(9 points)
1931 Color Gamlt :NTSC Ratio52%7671% coverage
Adobe RGB54% coverageDCI-P354% coverage
Rec.202039% coverageRemarkssRGB (Rec.709, BT.709), Rec.2020 (BT.2020)


3.TIANMA 8"TFT LCD Display TM080TDGP01 Mechanical Details

Pixel Features :Number of Pixel1024(RGB)*768, XGAArrangementRGB Vertical Stripe
Dot Pitch 0.05275*0.15825 mm (H*V)Pixel Pitch 0.15825*0.15825 mm (H*V)  [160PPI]
Physical Size :Active Viewing(mm)162.048*121.536 mm (H*V)Bezel Area (mm)164.65*122.54 mm (H*V)
Outline Dim.(mm)183.43*138.35 mm (H*V)Depth(mm)3.75±0.3 mm
Outline Features :Form StyleFlat RectangleOutline Shape
Aspect Ratio4:3(H:V)OrientationLandscape type
Holes & Brackets :Without
Other Spec :WeightTBDSurfaceHard coating


4.TIANMA 8"TFT LCD Display TM080TDGP01 Electronics Details

Refresh Rate :60Hz
Reverse Scan :Yes (U/D, L/R)
D-IC Detail :Built-in RM51150+HX8684B


5.TIANMA 8"TFT LCD Display TM080TDGP01 Interface Details

Signal Systerm :LVDS (1 ch, 8-bit)Logic Voltage-
Signal Electrical :Voltage Input3.3/12.6/23.0/-7.0V (Typ.)(VCC/AVDD/VGH/VGL)Current InputTBD
Interface Features :Position-Physical TypeFPC
Interface Detail :BrandModelPin PitchPinsAmountPin Assignment


0.5mm40pins1 pcs


6.TIANMA 8"TFT LCD Display TM080TDGP01 Backlight Details

Lamp Features :Lamp TypeWLEDQuantity3S9PPositionEdge light type
Exchange-Lamp ShapeArrayLamp Life30K(Typ.) (Hours)
Lamp Electrical :Input Current180/225mA (Typ./Max.)Input Voltage9.3±0.9V
Consumption1.67/2.3W (Typ./Max.)
Interface Features :Position-Physical TypeIncluded in panel signal interface
Backlight Driver :No


7.TIANMA 8"TFT LCD Display TM080TDGP01 Carton Details

Package Carton :AmountNet WeightCarton Size (L*W*H)
48 pcs / boxTBD544*365*250 mm

Post A Message

Your email address will not be published. Required fields are marked *

Name*
Your E-Mail*
Message*
TIANMA 8" IPS LCD Panel TM080SDHD02 - High Brightness Outdoor TFT Display Tianma 8" XGA LCD Module - TM080TDHG01 1024×768 LVDS 40-pin Display

Related Products

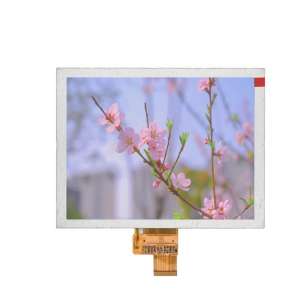

Tianma 8" XGA LCD Module - TM08...
